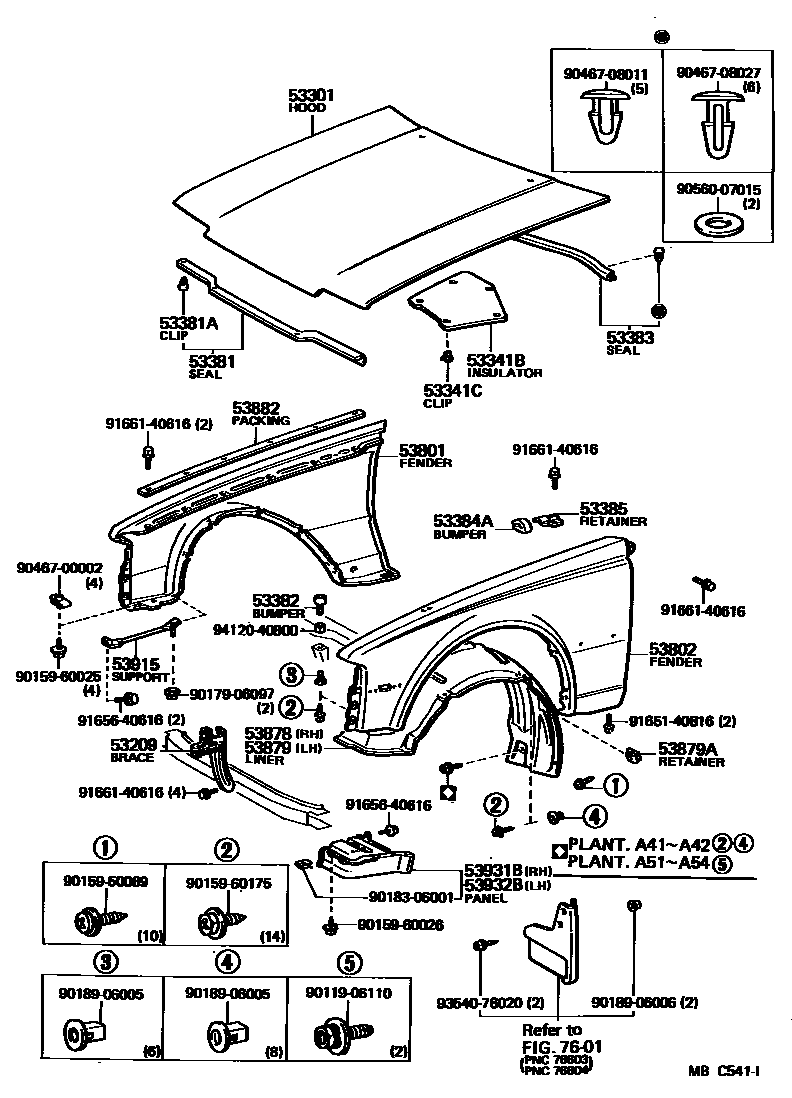

HOOD & FRONT FENDER

0001 1 0002 1 0003 1

53209BRACE SUB-ASSY, HOOD LOCK

main53208-14120iRA63,SA60,TA6#198107-198308

main53208-14150iAA63,SA60,TA63198308-198507

main53217-14040iGA61,MA6#198107-198410

main53217-14050iGA61,MA6#198410-198512

53301HOOD SUB-ASSY

main53301-14220iRA63,SA60,TA6#198107-198308

main53301-14240iGA61,MA6#198107-198512

main53301-14310iAA63,SA60,TA63198308-198507

53341BINSULATOR, HOOD

main53341-14040iGA61,MA61198107-198202

main53341-14041iGA61,MA61198202-198512

main53341-14051iMA63198202-198308

main53341-14052iMA63198308-198512

main53341-14070iTA63,64..GTS,GTT198210-198507

main53341-14080iAA63198308-198507

53341CCLIP(FOR HOOD INSULATOR)

main90467-09006×16iAA63198308-198507

main90467-11020×5iTA63,64..GTS,GTT198210-198507

main90467-13009×4iMA63198202-198208

TYPE A

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-14100iAA63,RA63,SA60,TA6#198107-198507

main53381-14110iGA61,MA6#198107-198512

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×9iGA61,MA6#198107-198512

main90467-08028×7iAA63,RA63,SA60,TA6#198107-198507

53382BUMPER, HOOD, FRONT

main53382-20011×4iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

53383SEAL, HOOD TO COWL TOP

main53383-14080iGA61,MA61,RA63,SA60,TA6#198107-198112

main53383-14090iGA61,MA6#198112-198512

53384ABUMPER, FENDER TO HOOD

main53384-14030×2iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

53385RETAINER, HOOD, BUMPER

main53385-14010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

LH

main53386-14010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

RH

53801FENDER SUB-ASSY, FRONT RH

main53801-14480iTA64198210-198308

main53801-14490iGA61,MA6#198308-198512

W/FENDER MIRROR

main53801-14500iGA61,MA6#198502-198512

main53801-14610iAA63,RA63,SA60,TA61,63198107-198507

W/FENDER MIRROR

main53801-14640iAA63,SA60,TA63198308-198507

main53801-14710iGA61,MA6#198107-198308

main53801-14800iGA61,MA6#198308-198502

53802FENDER SUB-ASSY, FRONT LH

main53802-14570iTA64198210-198308

main53802-14580iGA61,MA6#198308-198512

W/FENDER MIRROR

main53802-14590iGA61,MA6#198502-198512

main53802-14600iAA63,RA63,SA60,TA61,63198107-198507

W/FENDER MIRROR

main53802-14630iAA63,SA60,TA63198308-198507

main53802-14700iGA61,MA6#198107-198308

main53802-14790iGA61,MA6#198308-198502

53878LINER, FRONT FENDER, RH

main53875-14110iAA63,RA63,SA60,TA6#198107-198507

main53875-14150iGA61,MA6#198107-198512

53879LINER, FRONT FENDER, LH

main53876-14110iAA63,RA63,SA60,TA6#198107-198507

main53876-14150iGA61,MA6#198107-198512

53879ARETAINER, FRONT FENDER LINER

main53879-14010×10iAA63,GA61,MA6#,RA63,SA60,TA61,63198107-198512

53882PACKING, FRONT FENDER MAIN

main53882-14090×2iAA63,RA63,SA60,TA61,63198107-198507

main53882-14100×2iGA61,MA6#198107-198512

53915SUPPORT, FRONT VALANCE PANEL

main53915-14060iAA63,RA63,SA60,TA6#198107-198507

RH

main53916-14070iAA63,RA63,SA60,TA6#198107-198507

LH

53931BPANEL, FRONT END, RH

main53931-14040iRA63,SA60,TA6#198107-198308

53932PANEL SUB-ASSY, FRONT END

main53903-14010iMA63;GA61..L,S198107-198410

main53903-14020iGA61,MA61..G,GT198107-198410

main53903-14030iMA63;GA61..S198410-198512

main53903-14050iGA61,MA61..G,GT198410-198512

main53931-14090iAA63,SA60,TA63198308-198507

53932BPANEL, FRONT END, LH

main53932-14010iRA63,SA60,TA6#198107-198308

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9011906110

main90119-06110

9015950069

main90159-50069

9015960025

main90159-60025

9015960026

main90159-60026

9015960175

main90159-60175

9017906097

main90179-06097

9018306001

main90183-06001

9018906005

main90189-06005

9018906006

main90189-06006

9046700002

main90467-00002

9046708011

main90467-08011

9046708027

main90467-08027

9056007015

main90560-07015

9165140816

main91651-40816

9165640616

main91656-40616

9166140616

main91661-40616

9354076020

main93540-76020

9412040800

main94120-40800

39 parts on this diagram · 3 diagrams in section
