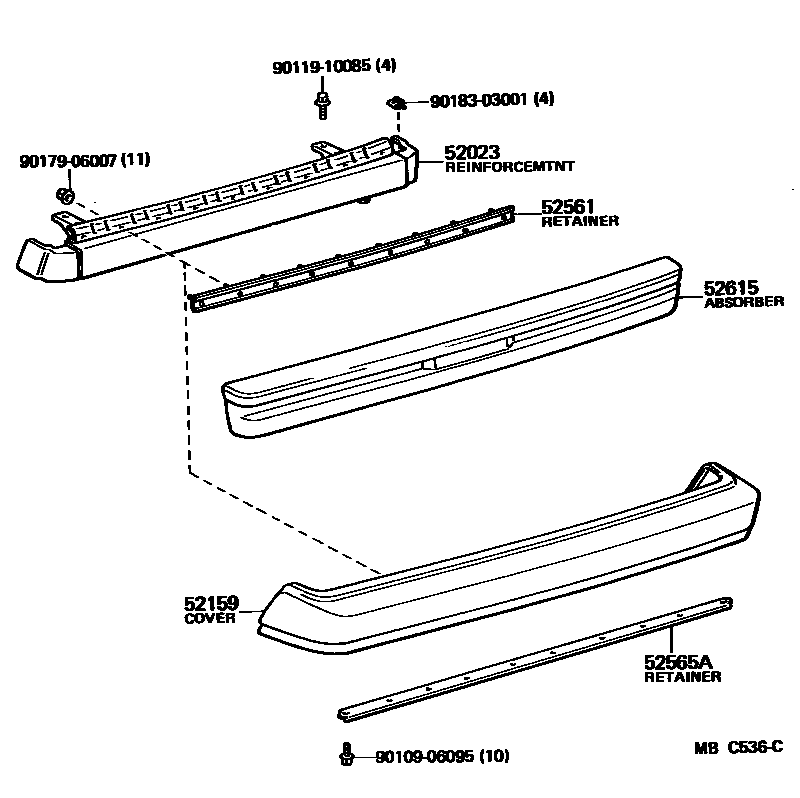

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-14080iAA63,RA63,SA60,TA6#..CP198107-198507

main52023-14100iMA61..5F;GA61,MA63,RA63,SA60,TA61,63..LB198205-198308

main52023-14120iMA63..S198202-198308

COLD SPEC

52159COVER, REAR BUMPER

main52159-14150iAA63,RA63,SA60,TA6#..CP198107-198507

main52159-14160iRA63,SA60,TA61,63..LB198107-198308

main52159-14190iGA61,MA6#198107-198308

main52159-14270iAA63,SA60,TA63..LB198308-198507

main52159-14280-01iGA61..GT198404-198405

SUPER 2000 GT,BLACK-M,BLACK,202

main52159-14280-02iGA61,MA6#198308-198408

SUPER RED,RED/MAROON,3D1

main52159-14280-03iGA61,MA6#198308-198512

GRAY-M,GRAY,2P9

main52159-14280-04iGA61,MA6#198308-198512

NIGHT BLUE-M,BLUE,8B4

main52159-14280-05iGA61,MA6#198308-198408

CAMEL BEIGE-M,BEIGE,4D3

main52159-14280-08iGA61,MA6#198308-198408

SUPER WHITE,IVORY,035

main52159-14280-15iGA61,MA6#198408-198512

SUPER SILVER-M,SUPER SILVER M,150

main52159-14280-18iGA61,MA6#198408-198512

SUPER WHITE 2,SUPER WHITE 2,040

main52159-14280-32iGA61,MA6#198408-198512

SUPER DEEP RED,SUPER DEEP RED,3F2

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-14060iAA63,RA63,SA60,TA6#..CP198107-198507

main52561-14080iAA63,RA63,SA60,TA61,63..LB198107-198507

main52561-14110iGA61,MA6#198107-198512

main52561-14120iGA61,MA6#198308-198512

52565ARETAINER, REAR BUMPER, LOWER

main52565-14060iAA63,RA63,SA60,TA6#..CP198107-198507

main52565-14070iAA63,RA63,SA60,TA61,63..LB198107-198507

main52565-14080iGA61,MA6#198107-198512

52615ABSORBER, REAR BUMPER ENERGY

main52615-14090iAA63,RA63,SA60,TA6#..CP198107-198507

main52615-14100iRA63,SA60,TA61,63..LB198107-198308

main52615-14110iAA63,SA60,TA63..LB198308-198507

main52615-14130iGA61,MA6#198107-198308

main52615-14140iGA61,MA6#198308-198512

9010906095

main90109-06095

9011910085

main90119-10085

9017906007

main90179-06007

9018303001

main90183-03001

9 parts on this diagram · 3 diagrams in section
