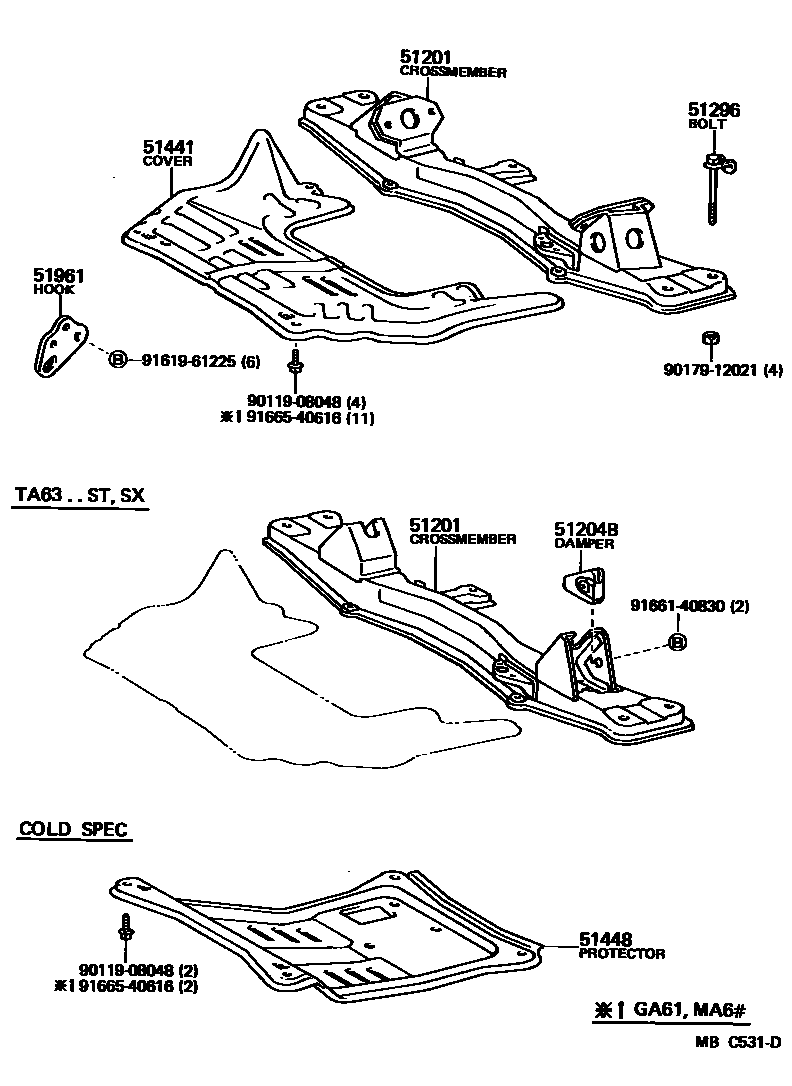

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-14130iSA60198107-198507

main51201-14200iRA63198107-198208

main51201-14220iTA61,63..GT,GTR,ST,SX198107-198308

main51201-14300iTA63,64..GTS,GTT198210-198507

main51201-14320iAA63198308-198507

main51201-24010iGA61,MA6#..G,GT,S198107-198512

main51201-24020iGA61..L198107-198308

51204BDAMPER SUB-ASSY, FRONT SUSPENSION MEMBER

main51204-14010×2iTA63..ST,SX198107-198308

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main51296-24010×4iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

51441COVER, ENGINE UNDER, NO.1

main51441-14050iRA63,SA60198107-198507

main51441-14060iTA6#198107-198507

main51441-20090iAA63198308-198507

main51441-24010iGA61,MA6#198107-198512

51448PROTECTOR, OIL PAN

main51447-14020iGA61,MA6#198107-198512

main51447-14030iRA63198107-198208

main51447-14040iSA60,TA6#198107-198507

main51447-14050iAA63198308-198507

51961HOOK, NO.1

main51963-14080×2iAA63,RA63,SA60,TA6#198107-198507

main51963-24010×2iGA61,MA6#198107-198512

9011908048

main90119-08048

9017912021

main90179-12021

9161961225

main91619-61225

9166140830

main91661-40830

9166540616

main91665-40616

11 parts on this diagram · 2 diagrams in section
