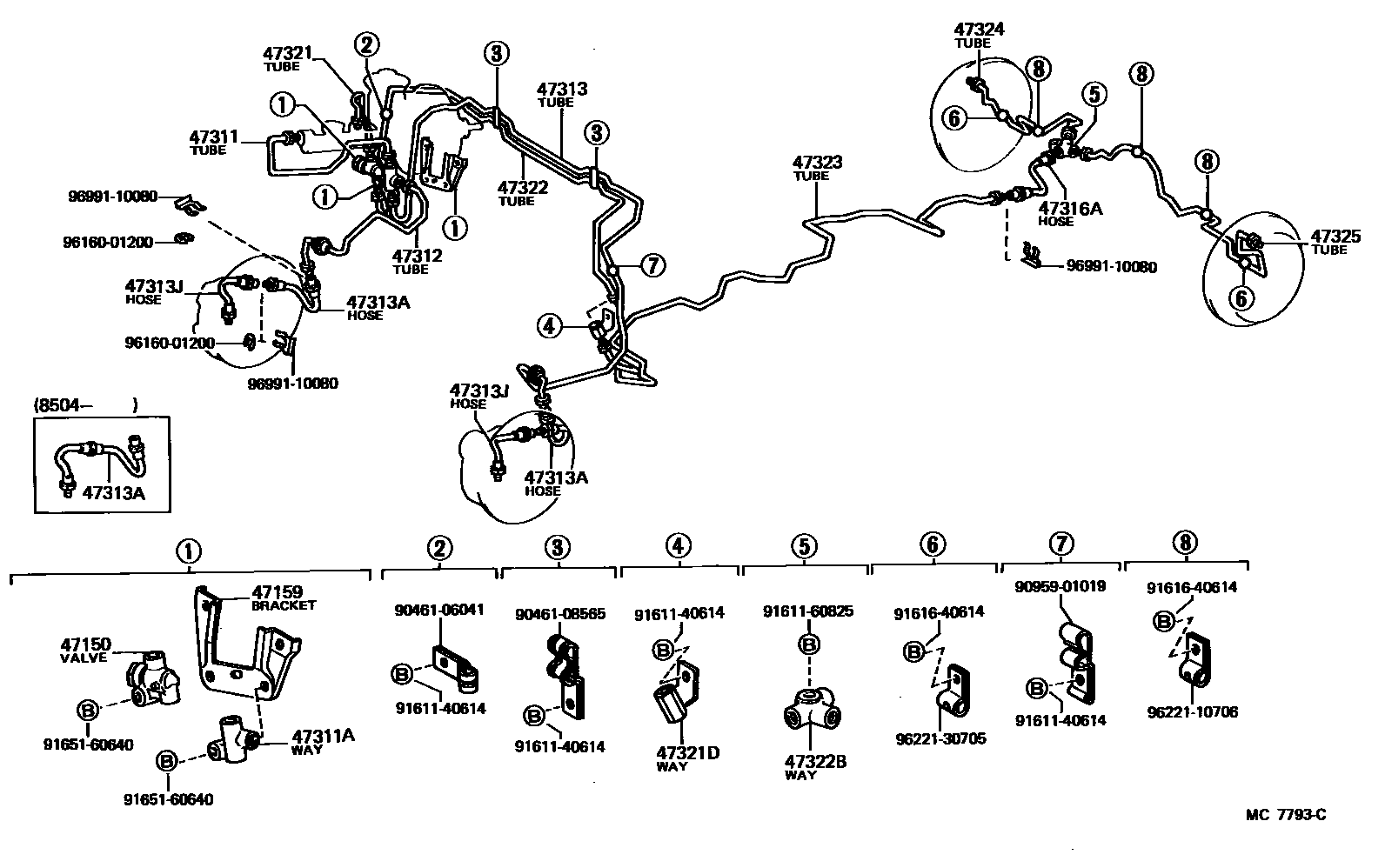

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

47150VALVE ASSY, PROPORTIONING

main47150-12031iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

47159BRACKET, PROPORTIONING VALVE

main47159-14020iSA60198107-198507

main47159-14030iAA63,RA63,TA6#198107-198507

47311TUBE, FRONT BRAKE, NO.1

main47311-14210iRA63,SA60,TA61,63..GT,GTR,ST,SV,SX198107-198507

main47311-14270iTA63,64..GTS,GTT198210-198308

main47311-14280iAA63198308-198507

main47311-14300iTA63198308-198507

main47311-24010iGA61,MA61198107-198512

main47311-24020iMA63198202-198512

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10002iAA63,RA63,SA60,TA61,63..GT,GTR,ST,SV,SX198107-198507

main90413-10004iTA63,64..GTS,GTT198210-198507

47312TUBE, FRONT BRAKE, NO.2

main47312-14110iAA63,RA63,SA60,TA61,63..GT,GTR,ST,SV,SX198107-198507

main47312-14150iTA63,64..GTS,GTT198210-198507

main47312-24010iGA61,MA6#198107-198512

47313TUBE, FRONT BRAKE, NO.3

main47313-14110iRA63,SA60,TA6#198107-198201

main47313-14170iMA63198202-198512

main47313-14180iTA63,64..GTS,GTT198210-198308

main47313-14200iTA63198308-198402

main47313-14201iTA63198402-198507

main47313-20180iAA63,RA63,SA60,TA61,63..GT,GTR,ST,SV,SX198201-198507

main47313-24010iGA61,MA61198107-198109

main47313-24011iGA61,MA61198109-198512

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02424×2iGA61,MA6#198107-198504

main90947-02426×2iAA63,RA63,SA60,TA6#198107-198504

main90947-02474×2iAA63,SA60,TA63198504-198507

main90947-02475×2iGA61,MA6#198504-198512

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main96960-32454×2iAA63,RA63,SA60,TA6#198107-198504

main96960-39955×2iGA61,MA6#198107-198504

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-32855iSA60,TA64198107-198507

47321TUBE, REAR BRAKE, NO.1

main47321-14090iRA63,SA60,TA6#198107-198308

main47321-14160iAA63,TA63198308-198507

main47321-24010iGA61,MA61198107-198512

main47321-24020iMA63198202-198512

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10056iSA60198107-198507

main90412-10091iGA61,MA6#198107-198512

47322TUBE, REAR BRAKE, NO.2

main47322-14100iRA63,TA6#198107-198201

main47322-14101iAA63,RA63,TA61,63198201-198507

main47322-14190iTA64198210-198308

main47322-24010iGA61,MA6#198107-198512

main47329-14010iSA60198107-198507

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10098iSA60,TA64198107-198507

main90413-10109iAA63,GA61,MA6#,RA63,TA61,63198107-198512

47323TUBE, REAR BRAKE, NO.3

main47322-14060iSA60198107-198507

main47324-14090iGA61,MA6#198107-198512

47324TUBE, REAR BRAKE, NO.4

main47323-14041iSA60198107-198108

main47323-14042iSA60198108-198507

main47323-14052iTA64198210-198308

main47325-14030iAA63,GA61,MA6#,RA63,TA61,63198107-198512

47325TUBE, REAR BRAKE, NO.5

main47324-14051iSA60198107-198108

main47324-14052iSA60198108-198507

main47324-14062iTA64198210-198308

main47326-14030iAA63,GA61,MA6#,RA63,TA61,63198107-198512

9046106041

main90461-06041

9046108565

main90461-08565

9095901019

main90959-01019

9161140614

main91611-40614

9161160825

main91611-60825

9161640614

main91616-40614

9165160640

main91651-60640

9616001200

main96160-01200

9622110706

main96221-10706

9622130705

main96221-30705

9699110080

main96991-10080

27 parts on this diagram · 4 diagrams in section
