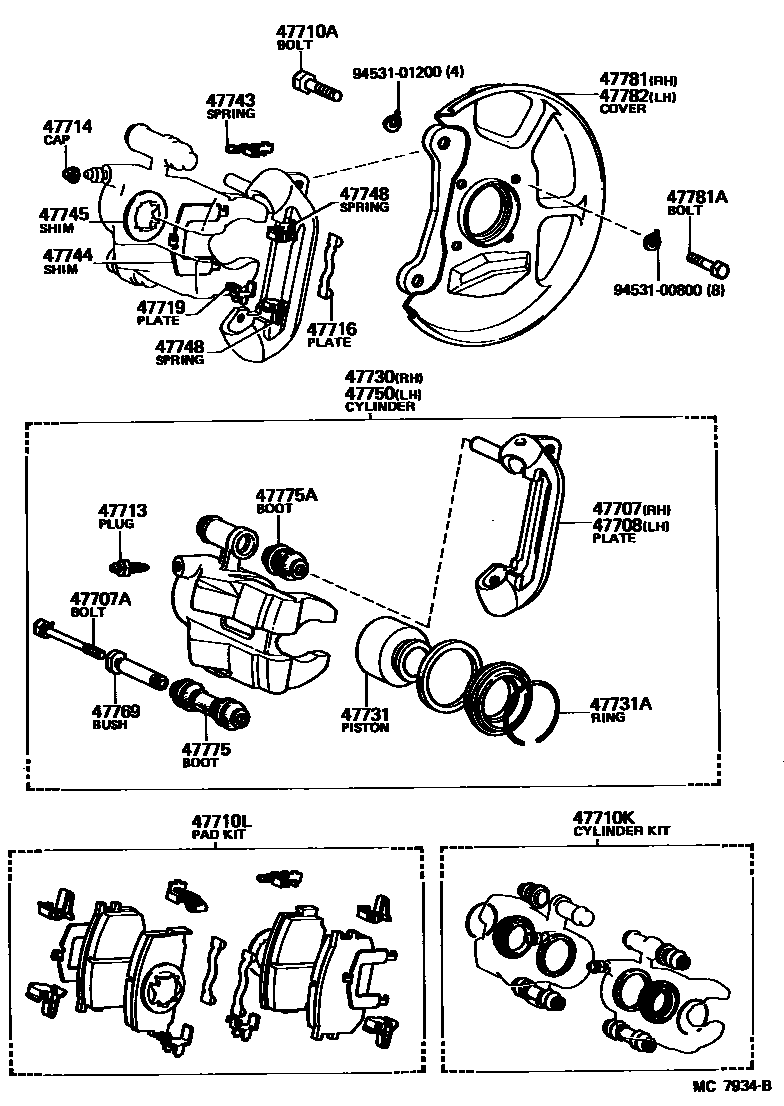

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH

main47707-14010iSA60198107-198507

47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)

main90119-08199×2iSA60198107-198308

main90119-08431×2iSA60198308-198507

47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH

main47708-14010iSA60198107-198507

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12064×4iSA60198107-198507

main90101-12066×4iAA63,RA63,TA6#198107-198507

main90101-12067×4iGA61,MA6#198107-198512

47710KCYLINDER KIT, DISC BRAKE, FRONT

main04479-14060iSA60198107-198507

main04479-22010iAA63,GA61,MA6#,RA63,TA6#198107-198512

47710LPAD KIT, DISC BRAKE, FRONT

main04491-14120iSA60198107-198403

sub04465-14350

main04491-14180iSA60198403-198507

sub04465-14350

main04491-22130iMA61198107-198205

main04491-22160iAA63,GA61,MA6#,RA63,TA6#198205-198404

main04491-22161iAA63,GA61,MA6#,TA63198404-198512

sub04491-22162

main04491-24010iGA61,MA63,RA63,TA6#198107-198205

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12040×2iAA63,GA61,MA6#,RA63,TA6#198107-198512

main47547-20010×2iSA60198107-198507

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-14080×2iSA60198107-198507

main47716-22010×4iAA63,GA61,MA6#,RA63,TA6#198107-198512

47719PLATE, FRONT DISC BRAKE PAD GUIDE

main47736-12010×2iSA60198107-198507

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12250iSA60198308-198507

main47730-14050iSA60198107-198308

main47730-24010iGA61..G,L,S;AA63,MA63,RA63,TA6#198107-198512

main47730-24020iGA61,MA61..GT198107-198512

47731PISTON, FRONT DISC BRAKE

main47731-14070×2iSA60198107-198507

main47731-30050×2iAA63,GA61,MA6#,RA63,TA6#198107-198512

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-60004×2iSA60198107-198507

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-12010iSA60198107-198507

LH

main47748-12050iSA60198107-198507

RH

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-14050×2iSA60198107-198507

main47744-22040×2iAA63,GA61,MA6#,RA63,TA6#198107-198512

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47744-22050×2iAA63,GA61,MA6#,TA63198404-198512

main47745-14020×2iSA60198211-198507

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47743-14040×2iSA60198107-198507

LWR

main47748-14050×2iSA60198107-198507

UPR

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12250iSA60198308-198507

main47750-14130iSA60198107-198308

main47750-24010iGA61..G,L,S;AA63,MA63,RA63,TA6#198107-198512

main47750-24020iGA61,MA61..GT198107-198512

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-14010×2iSA60198107-198308

sub47769-28H00

sub47769-28H01

main47769-28010×2iSA60198308-198507

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-14010×2iSA60198107-198507

47775ABOOT, PIN

main47776-14010×2iSA60198107-198507

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-14080iSA60198107-198507

main47781-14070iAA63,RA63,TA6#198107-198507

main47781-24010iGA61,MA6#198107-198512

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-08341×8iAA63,GA61,MA6#,RA63,TA6#198107-198512

main90101-10062×8iSA60198107-198507

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-14080iSA60198107-198507

main47782-14060iAA63,RA63,TA6#198107-198507

main47782-24010iGA61,MA6#198107-198512

9453100800

main94531-00800

9453101200

main94531-01200

26 parts on this diagram · 3 diagrams in section
