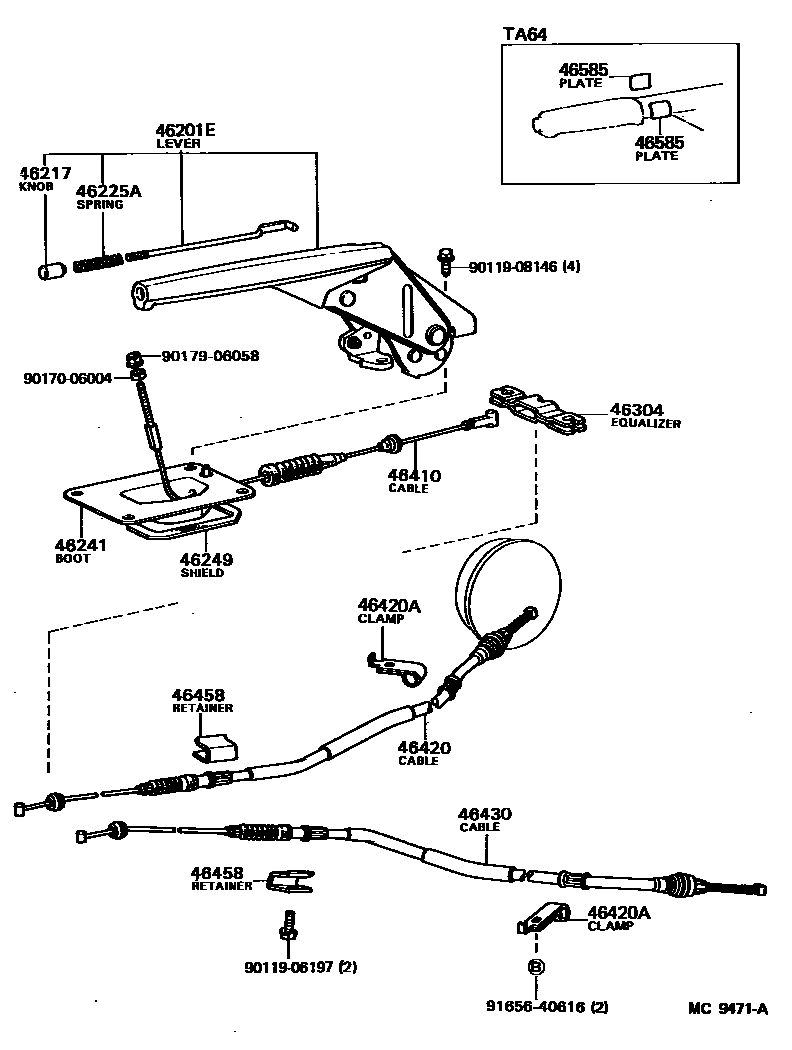

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-14110-01iSA60,TA61,63..GTR,ST,SV198107-198305

BLACK,BLACK,TRIM2#

main46201-14110-04iSA60,TA61,63..LB..(GTR,ST,SV)198107-198305

BLUE,BLUE,TRIM8#

main46201-14110-06iSA60,TA61,63..GTR,ST,SV198107-198305

DARK BROWN,BROWN,TRIM4#

main46201-14120iTA64198210-198308

BLACK

main46201-14130-01iSA60,TA61..GTR,ST,SV198305-198507

BLACK,BLACK,TRIM2#

main46201-14130-04iSA60,TA61..LB..(GTR,ST,SV)198305-198507

BLUE,BLUE,TRIM8#

main46201-14130-06iSA60,TA61..GTR,ST,SV198305-198507

DARK BROWN,BROWN,TRIM4#

main46201-24010-01iAA63198308-198507

GT-R PACKAGE,BLACK,BLACK,TRIM2#

main46201-24010-02iGA61,MA6#198107-198308

TERRACOTTA,RED/MAROON,TRIM3#

main46201-24010-04iAA63,GA61,MA6#,RA63,SA60,TA61,63..LB..(G,GT,L,S,SX)198107-198512

BLUE,BLUE,TRIM8#

main46201-24010-06iAA63,RA63,SA60,TA61,63..GT,SX198107-198507

DARK BROWN,BROWN,TRIM4#

main46201-24010-12iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-01iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

BLACK,BLACK,TRIM2#

main46217-10020-02iGA61,MA6#198107-198308

TERRACOTTA,RED/MAROON,TRIM3#

main46217-10020-04iAA63,GA61,MA6#,RA63,SA60,TA61,63..LB198107-198512

BLUE,BLUE,TRIM8#

main46217-10020-06iAA63,RA63,SA60,TA61,63198107-198507

DARK BROWN,BROWN,TRIM4#

main46217-10020-22iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10745iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

46241BOOT, PARKING BRAKE LEVER

main46241-24010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

46249SHIELD, PARKING BRAKE HOLE

main46249-24010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-12010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-24010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-14170iSA60198107-198507

main46420-14190iGA61,MA63,TA63..G,L,S,SX198107-198512

main46420-14200iGA61,MA61..GT198107-198512

main46420-14210iTA61,63..GTR,ST198107-198308

main46420-14240iTA64198210-198308

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90461-12121×2iSA60,TA64198107-198507

main90461-14013×2iAA63,GA61,MA6#,RA63,TA61,63198107-198512

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-14210iSA60198107-198507

main46430-14230iGA61,MA63,TA63..G,L,S,SX198107-198512

main46430-14240iGA61,MA61..GT198107-198512

main46430-14250iTA61,63..GTR,ST198107-198308

main46430-14280iTA64198210-198308

46458RETAINER, CABLE

main46458-20020×2iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

46585PLATE, PARKING BRAKE CAUTION

main46585-20010×2iTA64198209-198308

9011906197

main90119-06197

9011908146

main90119-08146

9017006004

main90170-06004

9017906058

main90179-06058

9165640616

main91656-40616

17 parts on this diagram · 2 diagrams in section
