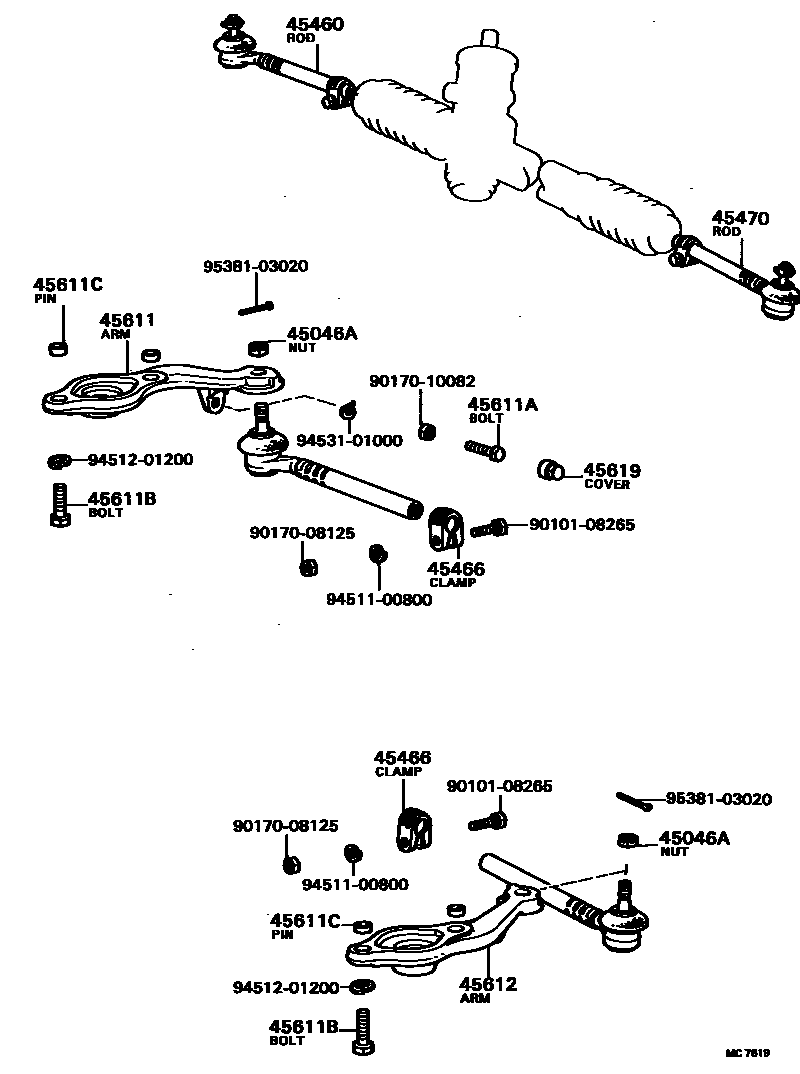

FRONT STEERING GEAR & LINK

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

45460ROD ASSY, TIE, RH

main45460-19155iAA63,SA60,TA63..GT,GTT,SX198308-198507

W/POWER STEERING

main45460-19165iAA63,SA60,TA61..GT,GTR,ST,SV198107-198507

main45460-29225iGA61,MA6#,RA63,TA63,64198107-198512

45466CLAMP, TIE ROD END

main45466-22010×4iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

45470ROD ASSY, TIE, LH

main45460-19155iSA60,TA63..ST,SX198107-198202

W/POWER STEERING

main45460-19165iAA63,SA60,TA61..GT,GTR,ST,SV198107-198507

main45460-29225iGA61,MA6#,RA63,TA63,64198107-198512

45611ARM, STEERING KNUCKLE, RH

main45611-14030iSA60..SX198308-198507

W/POWER STEERING

main45611-14040iSA60..ST,SV198107-198507

main45611-14070iAA63,RA63,TA63,64198202-198507

W/POWER STEERING

main45611-14080iAA63,TA61198107-198507

main45611-14090iRA63,TA63,64198107-198507

main45611-14100iGA61..GT198208-198308

main45611-24010iMA61;GA61,MA63..G,L,S198107-198308

45611ABOLT, KNUCKLE STOPPER

main90106-10002×2iAA63,RA63,SA60,TA6#198107-198507

L=31

main90106-10032×2iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

L=34

45611BBOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)

main90101-12295×4iAA63,RA63,SA60,TA6#198107-198507

L=35

main90101-12379×4iAA63,RA63,SA60,TA6#198107-198507

L=39

main90101-12491×4iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

L=42

45611CPIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER)

main90253-15016×4iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

45612ARM, STEERING KNUCKLE, LH

main45612-14030iSA60..SX198308-198507

W/POWER STEERING

main45612-14040iSA60..ST,SV198107-198507

main45612-14070iTA63198107-198202

W/POWER STEERING

main45612-14080iAA63,TA61198107-198507

main45612-14090iRA63,TA63,64198107-198507

main45612-14100iGA61,MA6#198308-198512

main45612-24010iMA61;GA61,MA63..G,L,S198107-198308

45619COVER, KNUCKLE STOPPER

main45619-14020×2iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

9010108265

main90101-08265

9017008125

main90170-08125

9017010082

main90170-10082

9451100800

main94511-00800

9451201200

main94512-01200

9453101000

main94531-01000

9538103020

main95381-03020

17 parts on this diagram · 1 diagram in section
