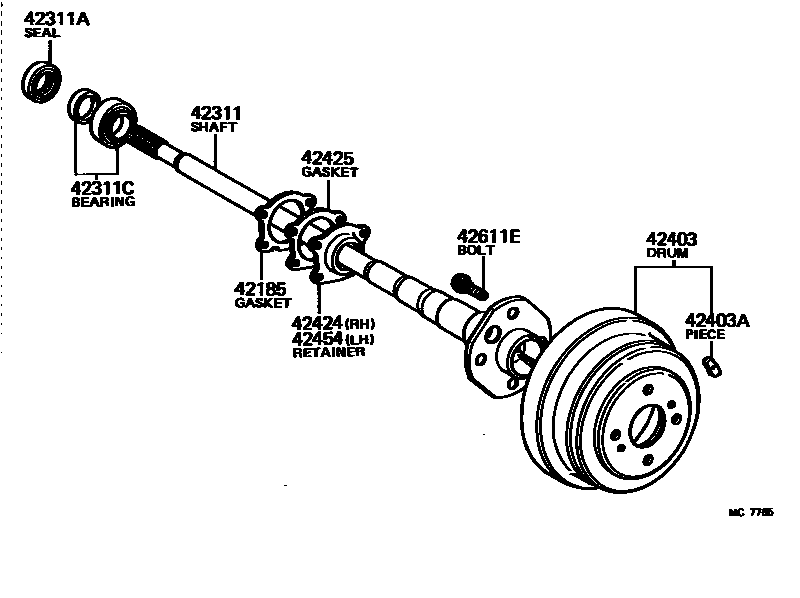

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

42185GASKET, REAR AXLE HOUSING END

main42185-14010×2iTA64198210-198308

main42185-14020×2iSA60198107-198507

main42185-22030×2iAA63,GA61,MA6#,RA63,TA61,63..G,GT,L,S,SX198107-198501

42311SHAFT, REAR AXLE

main42301-22050×2iAA63,GA61,MA6#,RA63,TA61,63198107-198512

main42311-14130×2iTA64198210-198308

main42311-14140×2iSA60198107-198507

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-38009×2iAA63,GA61,MA6#,RA63,TA61,63198107-198512

main90311-52059×2iSA60,TA64198107-198507

42311CBEARING(FOR REAR AXLE SHAFT)

main04421-14010×2iTA64198210-198308

main04421-30011×2iSA60198107-198507

42403DRUM SUB-ASSY, REAR BRAKE

main42431-12060×2iSA60198107-198507

main42431-14040×2iTA64198210-198308

main42431-14080×2iTA61,63..GTR,ST198107-198308

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117×2iTA63..ST;SA60,TA61..GTR,ST,SV,SX198107-198507

main90937-01118×2iTA63..ST;SA60,TA61..GTR,ST,SV,SX198107-198507

main90937-01119×2iTA63..ST;SA60,TA61..GTR,ST,SV,SX198107-198507

main90937-01195×2iTA63..ST;SA60,TA61..GTR,ST,SV,SX198107-198507

main90937-01196×2iTA63..ST;SA60,TA61..GTR,ST,SV,SX198107-198507

main90937-01197×2iTA63..ST;SA60,TA61..GTR,ST,SV,SX198107-198507

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-14010iTA64198210-198308

main42424-14020iSA60198107-198507

42425GASKET, REAR AXLE BEARING RETAINER

main42425-14010×2iTA64198210-198308

main42425-14020×2iSA60198107-198507

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42424-14010iTA64198210-198308

main42454-14010iSA60198107-198507

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02035×8iGA61,MA6#,RA63,SA60,TA6#198107-198307

main90942-02047×8iAA63,GA61,MA6#,SA60,TA6#198307-198512

10 parts on this diagram · 4 diagrams in section
