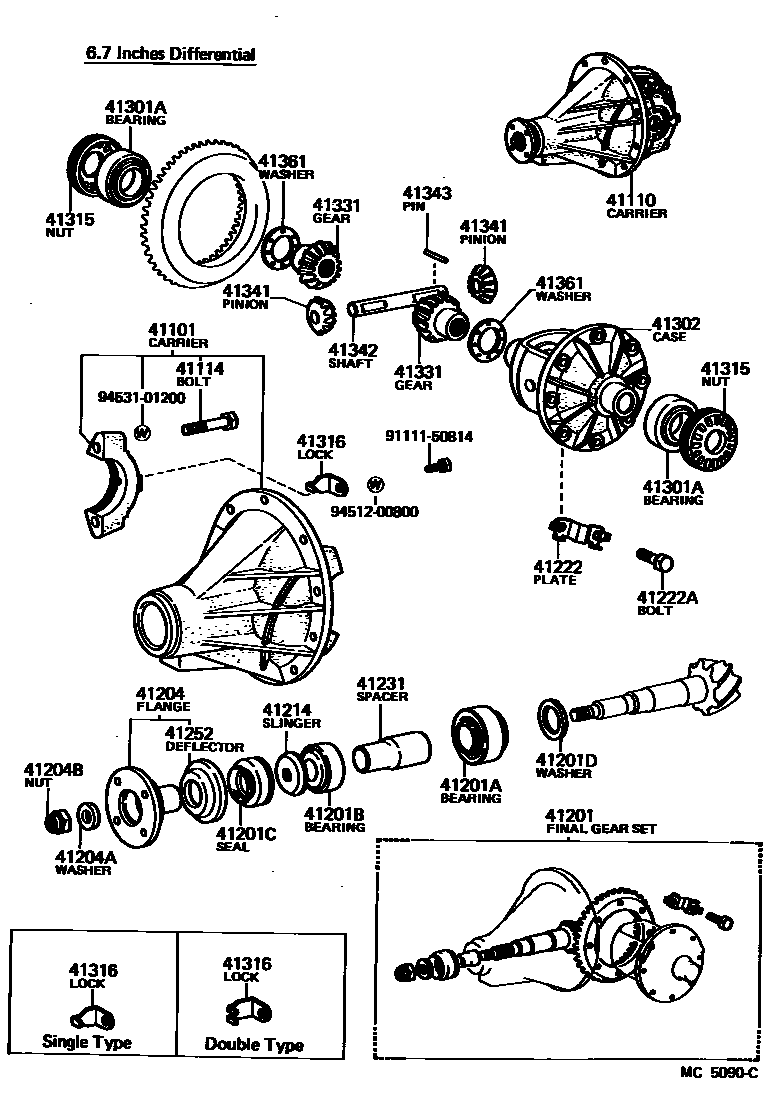

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-14020iTA61;GA61,TA63..G,L,S,ST,SX198107-198507

main41101-20020iSA60198107-198507

main41101-22020iMA63;AA63,GA61,MA61,RA63,TA63..GT,GTT198107-198512

main41101-30031iTA64198210-198308

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-14180iMA61..5F198107-198512

main41110-14190iMA61..5F198107-198512

R=41:11=3.727,W/LSD

main41110-14200iMA61..4FC198107-198512

R=43:11=3.909,W/LSD

main41110-14210iRA63,TA63..GT,GTT198107-198507

main41110-14220iGA61..5F..(G,L,S)198107-198509

main41110-14221iGA61..5F..(G,S)198509-198512

R=43:11=3.909

main41110-14230iTA63..ST,SX198107-198308

main41110-14240iTA61;GA61..4FC198107-198507

main41110-14330iAA63,GA61..GT198308-198512

R=41:9=4.556,W/LSD

main41110-14340iAA63,GA61..GT198308-198512

R=41:9=4.556

main41110-20191iSA60..MTM198107-198507

R=41:11=3.727

main41110-20201iSA60..4FC198107-198507

R=43:11=3.909

main41110-20230iTA64198210-198308

main41110-22131iMA61..4FC198107-198512

main41110-22141iRA63,TA63..GT,GTT198107-198507

main41110-24010iMA63;GA61..GT198202-198512

R=43:10=4.300

main41110-24020iMA63198202-198512

R=43:10=4.300,W/LSD

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90101-12371iTA61;GA61,SA60,TA63..G,L,S,ST,SV,SX198107-198511

main90101-12376iMA63;AA63,GA61,MA61,RA63,TA63,64..GT,GTS,GTT198107-198408

main90105-12053iAA63,GA61,MA6#,TA63198408-198512

main90105-12114iGA61..G,S198511-198512

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29196iTA63..ST,SX198107-198212

N=41:10

main41201-29197iTA63..SX198212-198507

main41201-29206iTA61;GA61..4FC198107-198212

N=43:10

main41201-29207iTA61;GA61..4FC198212-198512

main41201-29226iSA60..MTM198107-198212

N=41:11

main41201-29227iSA60..MTM198212-198507

main41201-29236iSA60..4FC198107-198212

N=43:11

main41201-29237iSA60..4FC198212-198512

main41201-29297iMA61..5F198107-198212

main41201-29298iMA61..5F198212-198512

N=41:11

main41201-39148iMA63;GA61..GT198202-198212

N=43:10

main41201-39158iRA63,TA63,64..GT,GTS,GTT198107-198212

main41201-39168iMA61..4FC198107-198212

main41201-39187iAA63,GA61..GT198308-198512

main41201-39565iMA63;GA61..GT198212-198512

main41201-39575iTA63,64..GTS,GTT198212-198507

main41201-39585iMA61..4FC198212-198512

N=43:11

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35023iMA63;AA63,GA61,MA61,RA63,TA63,64..GT,GTS,GTT198107-198512

main90368-34049iTA61;GA61,SA60,TA63..G,L,S,ST,SV,SX198107-198512

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30022iMA63;AA63,GA61,MA61,RA63,TA63,64..GT,GTS,GTT198107-198512

main90368-30002iTA61;GA61,SA60,TA63..G,L,S,ST,SV,SX198107-198512

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38010iMA63;AA63,GA61,MA61,RA63,TA63..GT,GTT198107-198512

main90311-38015iSA60198107-198507

main90311-38019iTA61;GA61,TA63..G,L,S,ST,SX198108-198511

main90311-38027iGA61..G,S198511-198512

main90311-38133iTA64198210-198308

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35396iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

main90201-35397iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

main90201-35398iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

main90201-35399iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

main90201-35400iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

main90201-35401iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

main90201-35402iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

main90201-35403iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

main90201-35404iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

main90201-35434iMA63;AA63,GA61,MA61,RA63,TA63,64..GT,GTS,GTT198107-198512

main90201-35435iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

main90201-35436iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

main90201-35437iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

main90201-35438iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

main90201-35439iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

main90201-35440iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

main90201-35441iMA63;AA63,GA61,MA61,RA63,TA63,64..GT,GTS,GTT198107-198512

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-20020iTA61;GA61,SA60,TA63..G,L,S,ST,SV,SX198107-198512

main41204-20030iMA63;AA63,GA61,MA61,RA63,TA63,64..GT,GTS,GTT198107-198512

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-18485iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

41204BNUT (FOR REAR DRIVE PINION)

main90179-18001iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-20020iTA61;GA61,SA60,TA63..G,L,S,ST,SV,SX198107-198512

main41214-30021iMA63;AA63,GA61,MA61,RA63,TA63,64..GT,GTS,GTT198107-198512

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-28010iGA61..G,S198511-198512

main41222-30030iTA61;GA61,SA60,TA63..G,L,S,ST,SV,SX198107-198511

main41222-30040iMA63;AA63,GA61,MA61,RA63,TA63,64..GT,GTS,GTT198107-198512

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-22010iTA61;GA61,SA60,TA63..G,L,S,ST,SV,SX198107-198512

main41252-30010iMA63;AA63,GA61,MA61,RA63,TA63,64..GT,GTS,GTT198107-198512

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90368-41001iTA61;GA61,TA63..G,L,S,ST,SX198107-198512

main90368-41050iSA60198107-198507

KOYO

main90368-41053iSA60198107-198507

NSK

main90368-41056iSA60198107-198507

NACHI

main90368-45002iMA63;AA63,GA61,MA61,RA63,TA63..GT,GTT198107-198512

main90368-45066iTA64198210-198308

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-14020iMA63;AA63,GA61,MA61,RA63,TA63..GT,GTT198107-198512

W/LSD

main41311-14030iTA61;GA61,TA63..G,L,S,ST,SX198107-198512

main41311-22030iSA60198107-198507

main41311-22050iMA63;AA63,GA61,MA61,RA63,TA63..GT,GTT198107-198512

main41311-30050iTA64198210-198308

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-22011iSA60198107-198507

main41315-35010iTA64198210-198308

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-22011iSA60198107-198507

SINGLE TYPE

main41316-30010iTA64198210-198308

SINGLE TYPE

main41317-22011iSA60198107-198507

DOUBLE TYPE

main41317-30010iTA64198210-198308

DOUBLE TYPE

41331GEAR, REAR DIFFERENTIAL SIDE

main41305-14010iMA63;AA63,GA61,MA61,RA63,TA63..GT,GTT198107-198512

W/LSD

main41331-14030iTA61;GA61,TA63..G,L,S,ST,SX198107-198509

main41331-22020iSA60198107-198507

main41331-22041iMA63;AA63,GA61,MA61,RA63,TA63..GT,GTT198107-198512

main41331-28010iGA61..G,S198509-198512

main41331-30030iTA64198210-198308

41341PINION, REAR DIFFERENTIAL

main41341-14031iMA63;AA63,GA61,MA61,RA63,TA63..GT,GTT198107-198512

W/LSD

main41341-22020iTA61;GA61,SA60,TA63..G,L,S,ST,SV,SX198107-198512

main41341-30020iMA63;AA63,GA61,MA61,RA63,TA63,64..GT,GTS,GTT198107-198512

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-22010iTA61;GA61,SA60,TA63..G,L,S,ST,SV,SX198107-198512

main41342-22020iMA63;AA63,GA61,MA61,RA63,TA63,64..GT,GTS,GTT198107-198512

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-04193iTA61;GA61,SA60,TA63..G,L,S,ST,SV,SX198107-198512

main90250-06058iMA63;AA63,GA61,MA61,RA63,TA63,64..GT,GTS,GTT198107-198512

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-22020iTA61;GA61,SA60,TA63..G,L,S,ST,SV,SX198107-198512

main41361-22030iTA61;GA61,SA60,TA63..G,L,S,ST,SV,SX198107-198512

main41361-22040iTA61;GA61,SA60,TA63..G,L,S,ST,SV,SX198107-198512

main41361-22051iMA63;AA63,GA61,MA61,RA63,TA63..GT,GTT198107-198512

main41361-22061iMA63;AA63,GA61,MA61,RA63,TA63..GT,GTT198107-198512

main41361-22071iMA63;AA63,GA61,MA61,RA63,TA63..GT,GTT198107-198512

main41361-22081iMA63;AA63,GA61,MA61,RA63,TA63..GT,GTT198107-198512

main41361-22101iMA63;AA63,GA61,MA61,RA63,TA63..GT,GTT198107-198512

main41361-22111iMA63;AA63,GA61,MA61,RA63,TA63..GT,GTT198107-198512

main41361-22140iTA61;GA61,SA60,TA63..G,L,S,ST,SV,SX198107-198512

main41361-22150iTA61;GA61,SA60,TA63..G,L,S,ST,SV,SX198107-198512

main41361-22160iTA61;GA61,SA60,TA63..G,L,S,ST,SV,SX198107-198512

main41361-30040iMA63;AA63,GA61,MA61,RA63,TA64..GT,GTS198107-198512

main41361-30050iMA63;AA63,GA61,MA61,RA63,TA64..GT,GTS198107-198512

main41361-30060iMA63;AA63,GA61,MA61,RA63,TA64..GT,GTS198107-198512

main41361-30070iMA63;AA63,GA61,MA61,RA63,TA64..GT,GTS198107-198512

9111150814

main91111-50814

9451200800

main94512-00800

9453101200

main94531-01200

28 parts on this diagram · 6 diagrams in section
