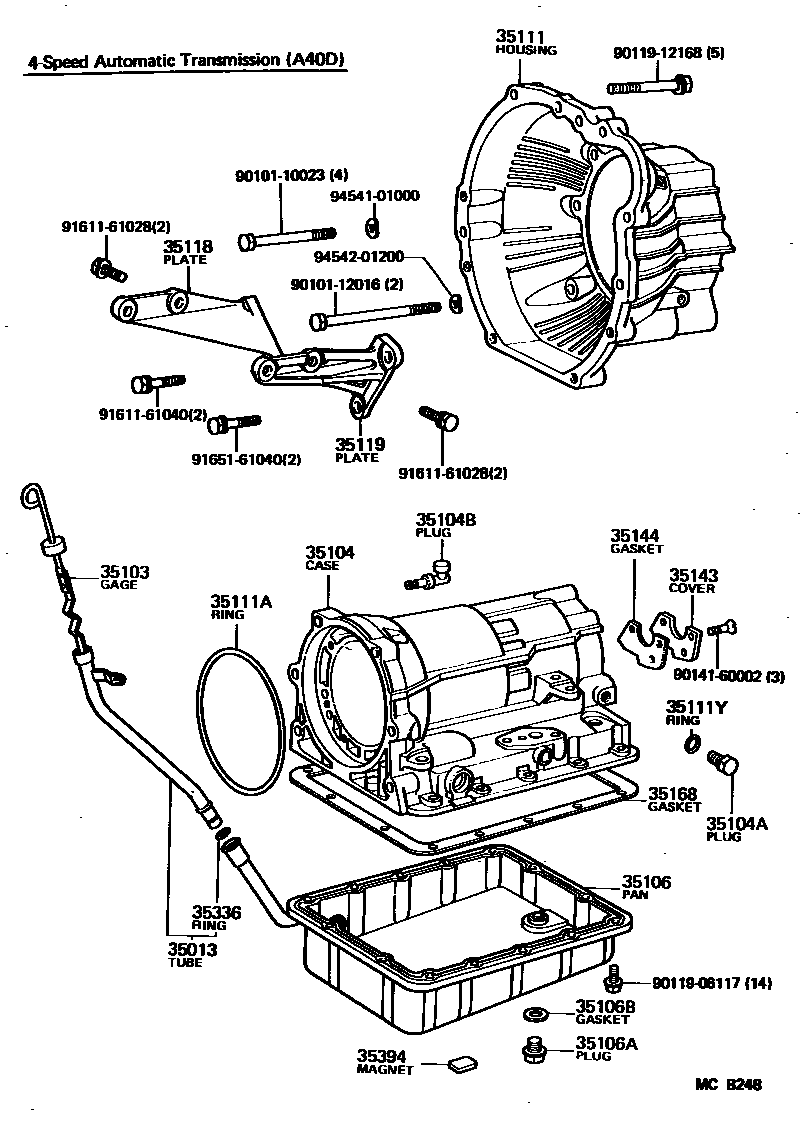

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-14100iSA60..4FC198107-198507

main35013-14110iTA63..4FC198407-198507

main35013-20110iTA63..4FC198107-198407

main35013-22120iGA61..4FC198107-198512

main35013-22150iMA63198202-198512

main35013-30100iMA61..4FC198107-198512

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-14050iTA63..4FC..(ST,SX)198107-198308

main35103-14070iTA63..4FC..GTT198210-198308

main35103-14071iTA63..4FC198308-198507

main35103-20080iSA60..4FC198107-198308

main35103-20081iSA60..4FC198308-198507

main35103-30120iMA61..4FC198107-198308

main35103-30121iMA61..4FC198308-198512

main35103-30130iGA61,MA63..4FC198107-198308

main35103-30131iGA61,MA63..4FC198308-198512

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-26011iGA61,MA6#,TA63..4FC..(G,GT,GTT,S)198107-198308

main35104-26020iGA61,MA63,TA63..4FC198408-198410

main35104-26021iGA61,MA63,TA63..4FC198410-198512

main35104-30082iSA60,TA63..4FC..(ST,SX)198107-198507

main35104-30100iMA61..4FC198308-198410

main35104-30101iMA61..4FC198410-198512

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iGA61,MA6#,SA60,TA63..4FC198107-198512

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03069iGA61,MA6#,SA60,TA63..4FC198107-198512

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-22031iTA63..4FC..(ST,SX)198107-198308

main35106-30030iSA60..4FC198107-198507

main35106-30050iGA61,MA63..4FC198107-198512

main35106-30060iMA61,TA63..4FC..(GT,GTT)198107-198512

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10003iGA61,MA6#,SA60,TA63..4FC198107-198307

main90341-10006iGA61,MA6#,SA60,TA63..4FC198307-198512

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iGA61,MA6#,SA60,TA63..4FC198107-198512

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-14060iTA63..4FC..(ST,SX)198107-198308

main35111-14070iMA6#..4FC198107-198512

main35111-14080iTA63..4FC..GTT198210-198507

main35111-14090iSA60..4FC198107-198507

main35111-24010iGA61..4FC198107-198512

35111ARING, O (FOR AUTOMATIC TRANSMISSION HOUSING)

main90301-99006iGA61,MA6#,SA60,TA63..4FC198107-198512

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iGA61,MA6#,SA60,TA63..4FC198107-198512

35118PLATE, STIFENER, RH (ATM)

main33118-14010iTA63..4FC198107-198507

main33118-14030iSA60..4FC198107-198410

main33118-14031iSA60..4FC198410-198507

main33118-22040iMA6#..4FC198107-198512

main33118-22050iGA61..4FC198107-198512

35119PLATE, STIFENER, LH (ATM)

main33119-14040iTA63..4FC198107-198507

main33119-14050iSA60..4FC198107-198507

main33119-22030iMA6#..4FC198107-198512

main33119-22041iGA61..4FC198107-198512

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iGA61,MA6#,SA60,TA63..4FC198107-198512

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-22010iGA61,MA6#,SA60,TA63..4FC198107-198512

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22011iGA61,MA6#,SA60,TA63..4FC198107-198512

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iGA61,MA6#,SA60,TA63..4FC198107-198512

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iGA61,MA6#,SA60,TA63..4FC198107-198512

9010110023

main90101-10023

9010112016

main90101-12016

9011906117

main90119-06117

9011912168

main90119-12168

9014160002

main90141-60002

9161161028

main91611-61028

9161161040

main91611-61040

9165161040

main91651-61040

9454101000

main94541-01000

9454201200

main94542-01200

28 parts on this diagram · 6 diagrams in section
