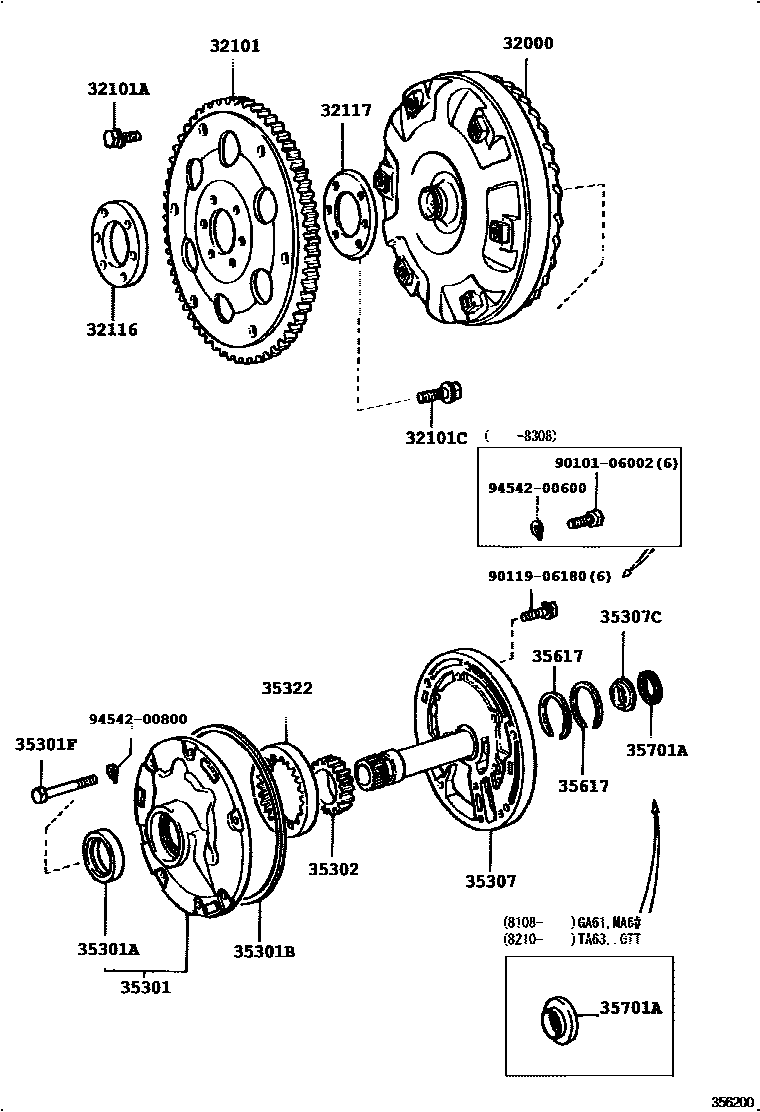

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-14070iMA61..4FC198107-198408

main32000-14071iMA61..4FC198408-198512

main32000-14080iTA63..4FC198107-198405

main32000-14081iTA63..4FC198405-198507

main32000-14090iMA63,SA60..4FC198107-198405

main32000-14091iMA63,SA60..4FC198405-198512

main32000-24010iGA61..4FC198107-198408

main32000-24011iGA61..4FC198408-198512

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-14030iGA61,TA63..4FC198107-198311

main32101-14040iSA60..4FC198107-198507

main32101-22030iGA61,TA63..4FC198311-198512

main32101-30040iMA6#..4FC198107-198408

main32101-30060iMA6#..4FC198408-198512

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08050iGA61,MA6#,SA60,TA63..4FC198107-198410

main90109-08113iGA61,MA6#,SA60,TA63..4FC198411-198507

main90119-08223×5iGA61,MA6#,SA60,TA63..4FC198107-198410

main90119-08498×5iGA61,MA6#,SA60,TA63..4FC198411-198512

main90119-08519iGA61,SA60,TA63..4FC198410-198512

main90119-08520×5iGA61,SA60,TA63..4FC198410-198512

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10046×6iGA61,TA63..4FC198107-198512

main90109-10037×6iMA6#..4FC198107-198512

main90109-10054×6iSA60..4FC198107-198507

32116SPACER, DRIVE PLATE, FRONT

main32116-14011iGA61,TA63..4FC198107-198512

main32116-14020iSA60..4FC198107-198507

main32116-30011iMA6#..4FC198107-198512

32117SPACER, DRIVE PLATE, REAR

main32117-14011iGA61,TA63..4FC198107-198512

main32117-14030iSA60..4FC198107-198507

main32117-30011iMA6#..4FC198107-198512

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-14010iGA61,MA61..4FC198107-198512

main35301-30030iMA63,SA60,TA63..4FC198107-198512

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iGA61,MA6#,SA60,TA63..4FC198312-198512

main90311-38129iGA61,MA6#,SA60,TA63..4FC198107-198312

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iGA61,MA6#,SA60,TA63..4FC198107-198512

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90101-08042×7iGA61,MA6#,TA63..4FC..(G,GT,GTT,S)198107-198512

main90101-08431×7iSA60,TA63..4FC..(ST,SX)198107-198507

35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE

main35321-14010iGA61,MA61..4FC198107-198512

main35321-22010iMA63,SA60,TA63..4FC198107-198512

35307SHAFT SUB-ASSY, STATOR

main35370-14010iGA61,MA61..4FC198107-198108

main35370-14011iGA61,MA61..4FC198108-198412

main35370-14012iGA61,MA61..4FC198412-198512

main35370-22030iSA60,TA63..4FC..(ST,SX)198108-198412

main35370-22031iSA60..4FC198412-198507

main35370-30010iSA60,TA63..4FC198107-198108

main35370-30022iMA63,TA63..4FC..(G,GTT,S)198202-198412

main35370-30023iMA63,TA63..4FC198412-198512

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-22010iGA61,MA61,SA60,TA63..4FC198107-198108

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-14010iGA61,MA61..4FC198107-198512

main35322-22010iMA63,SA60,TA63..4FC198107-198512

35617RING, CLUTCH DRUM OIL SEAL

main35617-16010×2iGA61,MA6#,SA60,TA63..4FC198108-198512

main35617-22020×2iGA61,MA61,SA60,TA63..4FC198107-198108

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-23012iSA60,TA63..4FC..(ST,SX)198107-198507

main90374-24001iGA61,MA61..4FC198107-198108

main90374-25003iGA61,MA6#,TA63..4FC..(G,GT,GTT,S)198108-198512

9010106002

main90101-06002

9011906180

main90119-06180

9454200600

main94542-00600

9454200800

main94542-00800

20 parts on this diagram · 1 diagram in section
