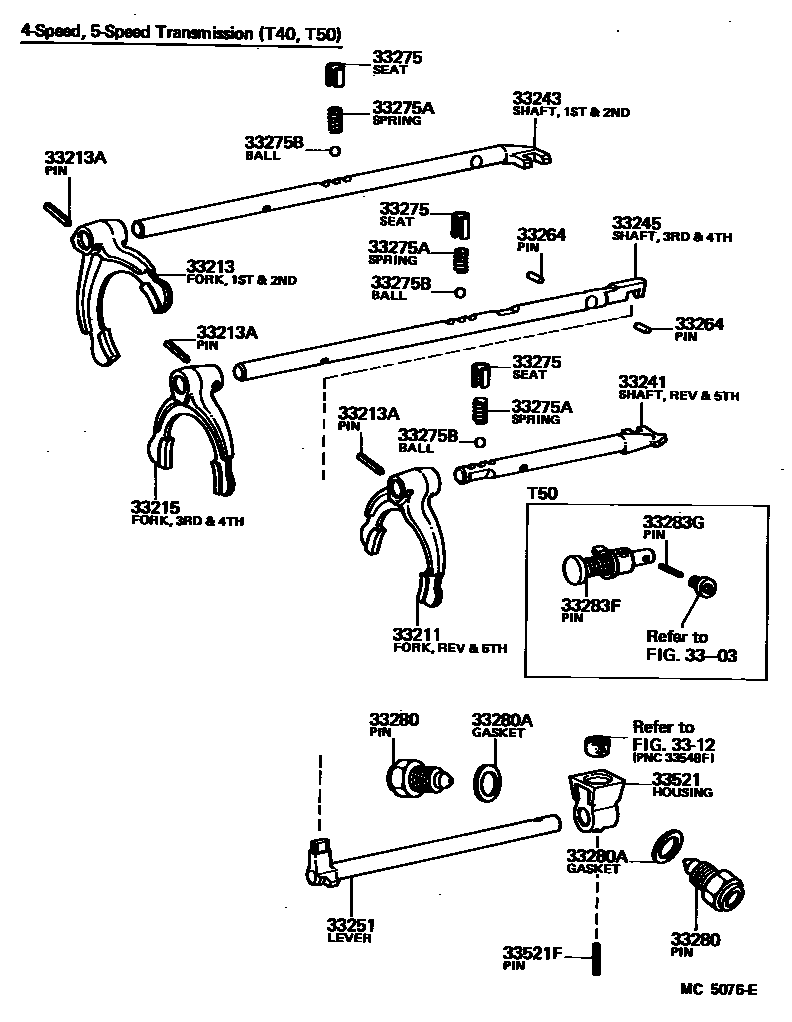

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1

3303

3312

33211FORK, REVERSE SHIFT

main33214-14010iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

33213FORK, 1ST & 2ND SHIFT

main33212-14010iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main33212-22020iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

sub33212-30050

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001×3iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main90254-05016iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

33215FORK, 3RD & 4TH SHIFT

main33213-14010iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main33213-22030iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

sub33213-22040

33241SHAFT, REVERSE SHIFT FORK

main33244-14050iAA63,SA60,TA61,63..5F..(GT,GTR,ST,SX)198107-198507

main33244-14060iSA60..SV198107-198308

main33244-22020iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-14030iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main33242-22020iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

33245SHAFT, 3RD & 4TH SHIFT FORK

main33240-22020iGA61,MA61,TA63,64..5F..(G,GT,GTS,GTT,L,S)198302-198512

sub33240-22021

main33243-14030iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198403

main33243-14040iAA63,SA60..5F198403-198507

main33243-22030iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198302

33251LEVER, SHIFT & SELECT

main33251-14010iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main33251-22030iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198302

main33251-22050iGA61,MA61,TA63,64..5F..(G,GT,GTS,GTT,L,S)198302-198512

sub33251-22051

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main33264-22010iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

main90250-06188×2iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main33275-12010×3iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main90341-12004iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-13004iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

sub90501-14123

main90501-14237×3iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

33275BBALL, SHAFT DETENT

main90360-10003×3iAA63,GA61,MA61,RA63,SA60,TA6#..MTM198107-198507

33280PIN ASSY, REVERSE RESTRICT

main33280-12040iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

RH

main33280-12050iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

LH

main33280-22020iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

RH

main33280-22030iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

LH

33280AGASKET, REVERSE RESTRICT PIN

main90430-18007×2iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198408

main90430-18008×2iGA61,MA61,TA63..5F198408-198512

main90430-22002×2iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

33283FPIN, REVERSE RESTRICT

main33280-20030iAA63,SA60,TA61,63..5F..(GT,GTR,ST,SX)198107-198507

main33280-22010iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)

main90254-05001iAA63,SA60,TA61,63..5F..(GT,GTR,ST,SX)198107-198507

main90254-05016iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

33521HOUSING, SHIFT LEVER

main33502-14100iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

main33521-14060iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)

main90105-08079iGA61,MA61,TA63,64..5F..(G,GT,GTS,GTT,L,S)198303-198512

main90113-08001iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198303

main90254-05001iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

20 parts on this diagram · 2 diagrams in section
