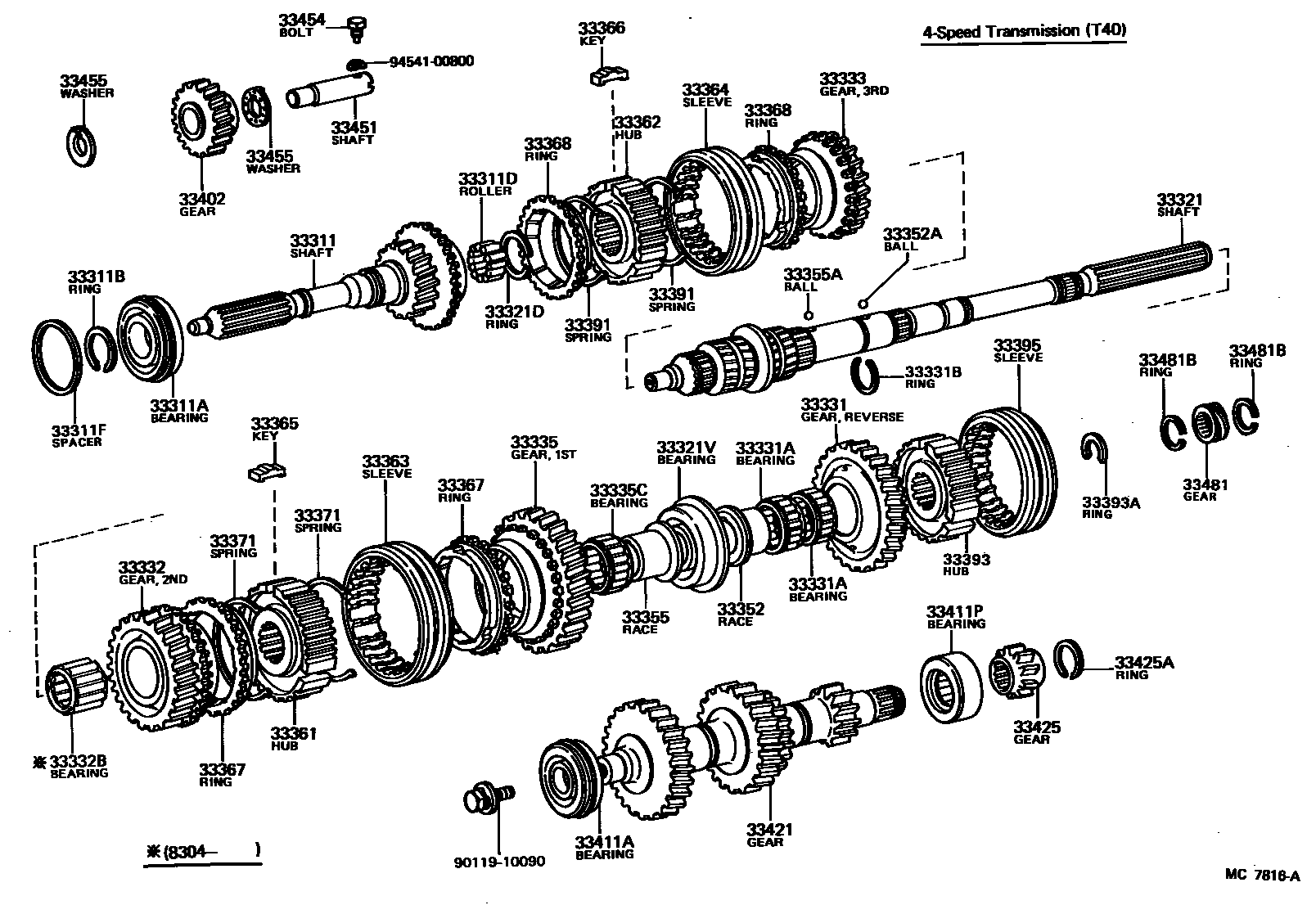

TRANSMISSION GEAR (MTM)

0001 1 0002 1 0003 1

33311SHAFT, INPUT

main33301-12010iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198304-198507

main33301-14010iSA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198304

main33301-22020iRA63198107-198208

main33301-22021iGA61,TA63,64..5F..(GT,GTS,GTT)198208-198307

main33301-22022iGA61,TA63,64..5F..(GT,GTS,GTT)198307-198402

main33301-22024iGA61,TA63..5F..(GT,GTT)198402-198512

main33301-24010iGA61..5F..(G,L,S); MA61..5F198107-198307

main33301-24011iGA61..5F..(G,L,S); MA61..5F198307-198402

main33301-24013iGA61..5F..(G,S); MA61..5F198402-198512

33311ABEARING (FOR INPUT SHAFT FRONT)

main90363-30028iSA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198304

main90363-30040iSA60..4F198305-198507

main90363-35007iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

main90365-30020iSA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198304-198305

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-28067iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

T=2.35-2.40

main90520-28068iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

T=2.45-2.50

main90520-28205iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main90520-28206iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

T=2.50-2.55

main90520-28207iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main90520-33107iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198507

main90520-33132iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

main90520-33168iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

main90520-33169iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

main90520-33170iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

main90520-33171iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

main90520-33172iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

33311DBEARING, INPUT SHAFT

main90361-06047×12iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main90364-19043iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

33311FSPACER (FOR INPUT SHAFT)

main90560-61001iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

T=1.825-1.875

main90560-61002iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

T=1.935-1.985

main90560-61003iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

T=2.045-2.095

main90560-61004iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

T=2.155-2.205

main90560-61005iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

T=2.265-2.315

main90560-61006iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

T=2.375-2.425

33321SHAFT, OUTPUT

main33321-12100iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198304-198507

main33321-14040iSA60,TA6#..MTM198107-198204

main33321-14041iSA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198204-198304

main33321-22050iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)

main90520-28014iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

main90520-28015iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

main90520-28016iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

main90520-28017iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

main90520-28018iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

main90520-28245iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

main90520-30200iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main90520-30201iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main90520-30202iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main90520-30203iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main90520-30204iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

33321VBEARING (FOR OUTPUT SHAFT CENTER)

main90363-35009iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

main90369-30027iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

33331GEAR, REVERSE

main33331-14011iSA60,TA6#..MTM198107-198204

main33331-14013iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198204-198507

main33331-22020iGA61,MA61,RA63..5F198107-198111

main33331-22021iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198111-198302

main33331-22030iGA61,MA61,TA63,64..5F..(G,GT,GTS,GTT,L,S)198302-198512

33331ABEARING (FOR REVERSE GEAR)

main90364-37002×2iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198204-198507

main90364-37061×2iSA60,TA6#..MTM198107-198204

33331BRING, SET (FOR REVERSE GEAR)

main90520-27003iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198204-198507

T=2.70-2.75

main90520-27004iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198204-198507

T=2.75-2.80

main90520-27005iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198204-198507

T=2.80-2.85

main90520-27006iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198204-198507

T=2.85-2.90

main90520-27007iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198204-198507

T=2.90-2.95

main90520-27008iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198204-198507

T=2.95-3.00

main90520-27009iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198204-198507

T=3.00-3.05

main90520-27010iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198204-198507

T=3.05-3.10

main90520-27011iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198204-198507

T=3.10-3.15

main90520-27012iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198204-198507

T=3.15-3.20

33332GEAR, 2ND

main33033-12020iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198304-198507

main33033-14060iSA60,TA6#..MTM198107-198208

main33033-14061iSA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198208-198304

main33033-22020iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198307

main33033-22021iGA61,MA61,TA63,64..5F..(G,GT,GTS,GTT,L,S)198307-198512

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90364-37004iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198304-198507

main90364-43002iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198307

main90364-43004iGA61,MA61,TA63,64..5F..(G,GT,GTS,GTT,L,S)198307-198512

33333GEAR, 3RD

main33034-12040iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198304-198507

main33034-14030iSA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198304

main33034-22020iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198307

main33034-22021iGA61,MA61,TA63,64..5F..(G,GT,GTS,GTT,L,S)198307-198512

33335GEAR, 1ST

main33032-14011iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main33032-22020iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198307

main33032-22021iGA61,MA61,TA63,64..5F..(G,GT,GTS,GTT,L,S)198307-198512

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-37004iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198304-198507

main90364-37041iSA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198304

main90364-43001iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198307

main90364-43004iGA61,MA61,TA63,64..5F..(G,GT,GTS,GTT,L,S)198307-198512

33352RACE, REVERSE GEAR BEARING INNER

main33344-14010iSA60,TA6#..MTM198107-198204

main33344-14012iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198204-198507

33352AKEY OR BALL, REVERSE GEAR BEARING INNER RACE LOCK

main90360-05012iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

33355RACE, 1ST GEAR BEARING INNER

main33345-14011iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK

main90360-05012iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-14010iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main33361-22020iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-14010iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main33362-22020iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

33363SLEEVE, TRANSMISSION HUB, NO.1

main33363-14012iSA60,TA6#..MTM198107-198208

main33363-14013iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198208-198507

main33363-22020iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198307

main33363-22021iGA61,MA61,TA63,64..5F..(G,GT,GTS,GTT,L,S)198307-198512

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-14010iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main33364-22020iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198307

main33364-22021iGA61,MA61,TA63,64..5F..(G,GT,GTS,GTT,L,S)198307-198512

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-14011×3iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main33366-20011×3iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-14010×3iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main33366-20011×3iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

33367RING, SYNCHRONIZER, NO.1

main33367-22020×2iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198307

main33367-22021×2iGA61,MA61,TA63,64..5F..(G,GT,GTS,GTT,L,S)198307-198512

main33368-20012×2iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

33368RING, SYNCHRONIZER, NO.2

main33367-14010×2iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main33368-20012×2iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198307

main33368-20013×2iGA61,MA61,TA63,64..5F..(G,GT,GTS,GTT,L,S)198307-198512

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-14031×2iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main33371-22030×2iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198307

main33371-22033×2iGA61,MA61,TA63,64..5F..(G,GT,GTS,GTT,L,S)198307-198512

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33371-14010×2iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main33371-14031×2iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198307

main33391-22030×2iGA61,MA61,TA63,64..5F..(G,GT,GTS,GTT,L,S)198307-198512

33393HUB, TRANSMISSION CLUTCH, NO.3

main33393-14020iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main33393-22020iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)

main90520-24002iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

main90520-24003iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

main90520-24004iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

main90520-24005iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

main90520-24009iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main90520-24010iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main90520-24011iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main90520-24012iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main90520-24013iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main90520-24014iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main90520-24015iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main90520-24016iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main90520-24017iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main90520-24018iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main90520-24019iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main90520-24020iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main90520-24021iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main90520-24022iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main90520-24023iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

33395SLEEVE, TRANSMISSION HUB, NO.3

main33395-14013iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main33395-22010iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198307

main33395-22011iGA61,MA61,TA63,64..5F..(G,GT,GTS,GTT,L,S)198307-198512

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-14011iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main33402-22020iGA61,MA61,RA63..5F198107-198111

main33402-22022iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198111-198510

main33402-22023iMA61..5F198510-198512

33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)

main90365-20004iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main90365-25009iGA61,MA61,RA63..5F198107-198110

main90365-25014iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198110-198512

33411PBEARING, COUNTERSHAFT CENTER

main33430-22010iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

main90365-30015iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

33421GEAR, COUNTER

main33421-14070iSA60..SV198107-198308

main33421-14080iAA63,SA60,TA61,63..5F..(GT,GTR,ST,SV,SX)198107-198507

main33421-22020iGA61,RA63,TA63,64..5F..(GT,GTS,GTT)198107-198402

main33421-22021iGA61,TA63..5F..(GT,GTT)198402-198512

main33421-24010iGA61..5F..(G,L,S); MA61..5F198107-198402

main33421-24011iGA61..5F..(G,S); MA61..5F198402-198512

33425GEAR, COUNTERSHAFT REVERSE

main33425-14010iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

33425ARING, SHAFT SNAP (FOR COUNTER GEAR)

main90520-21198iSA60..SV198107-198308

T=1.90-1.95

main90520-21199iSA60..SV198107-198308

T=1.80-1.85

33451SHAFT, REVERSE IDLER GEAR

main33451-14010iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main33451-22021iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

33454BOLT, SHAFT RETAINING

main33454-12010iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

33455WASHER, REVERSE IDLER GEAR THRUST

main33455-14010×2iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-14030iGA61..GT198208-198302

main33481-14031iGA61..GT198302-198308

main33481-14040iAA63,TA61,63..5F..(GT,GTR,ST,SX)198107-198507

main33481-14050iSA60..MTM198107-198507

main33481-14060iGA61..GT198308-198512

main33481-22020iMA61..5F198107-198308

main33481-22030iGA61..5F..(G,L,S); RA63,TA63,64..5F..(GT,GTS,GTT)198107-198512

33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)

main90520-23025×2iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

9011910090

main90119-10090

9454100800

main94541-00800

46 parts on this diagram · 3 diagrams in section
