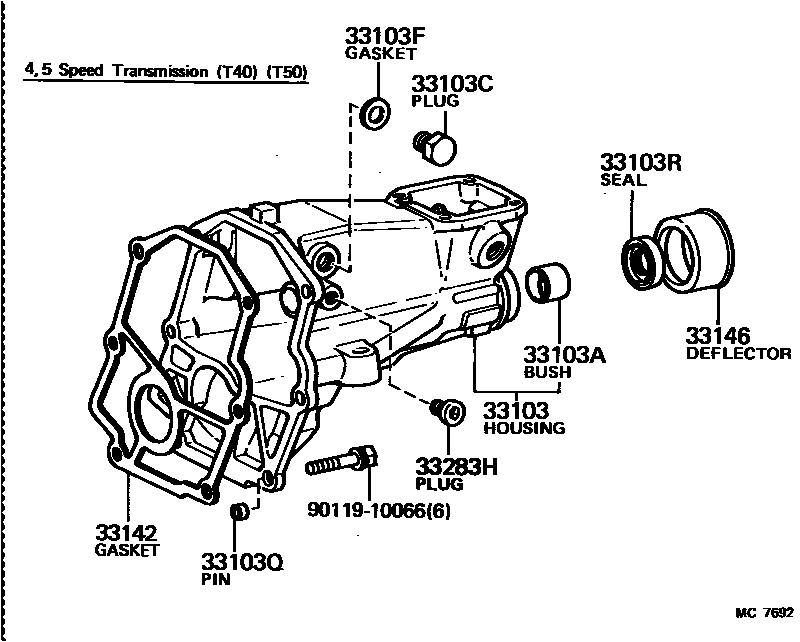

EXTENSION HOUSING (MTM)

0001 1 0002 1

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-12130iAA63,SA60..5F198503-198507

main33103-14030iSA60..SV198107-198308

main33103-14040iAA63,SA60,TA61,63..5F..(GT,GTR,ST,SX)198107-198403

main33103-14041iAA63,SA60..5F198403-198503

main33103-22090iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72022iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198403

main90999-72023iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

33103CPLUG, NO.1(FOR EXTENSION HOUSING)

main90109-18001iSA60..SV198107-198308

main90341-18006iAA63,SA60..5F198308-198507

main90341-18049iSA60,TA61,63..5F..(GT,GTR,ST,SX)198107-198308

33103FGASKET(FOR EXTENSION HOUSING PLUG NO.1)

main90430-18007iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198410

main90430-18008iAA63,SA60..5F198410-198507

33103QPIN, RING(FOR EXTENSION HOUSING)

main90253-13017×2iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-32010iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198109-198507

main90311-32086iSA60,TA6#..MTM198107-198109

main90311-38043iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

33142GASKET, EXTENSION HOUSING(MTM)

main33142-14010iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main33142-22010iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-12010iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main33146-30010iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

33283HPLUG, W/HEAD STRAIGHT SCREW

main90341-10065iAA63,GA61,MA61,RA63,SA60,TA6#..5F198107-198512

9011910066

main90119-10066

10 parts on this diagram · 2 diagrams in section
