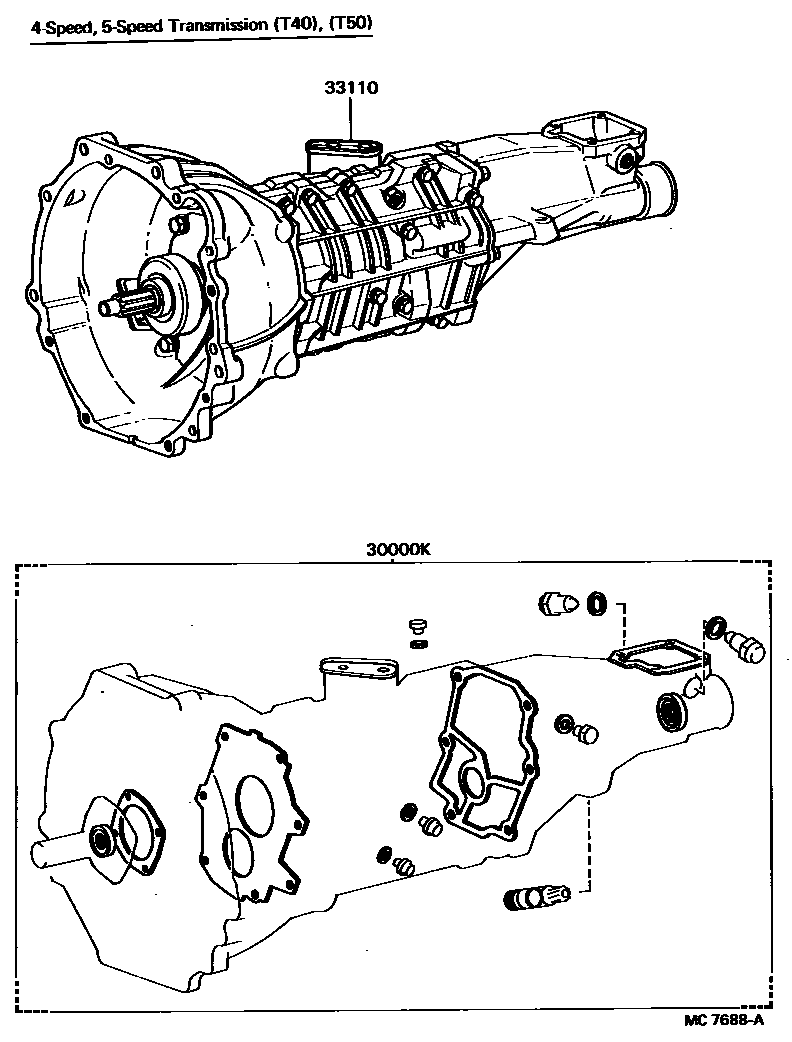

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1

30000KGASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-14030iAA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main04331-20050iGA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)198107-198512

33110TRANSMISSION ASSY, MANUAL

main33030-12450iAA63198308-198507

main33030-14550iTA61,63..5F..(GT,GTR,ST,SX)198107-198304

SMG=6

main33030-14551iTA61,63..5F..(GT,GTR,SX)198304-198308

SMG=6

main33030-14570iSA60..SV198107-198304

SMG=6

main33030-14571iSA60..SV198304-198308

SMG=6

main33030-14590iSA60..5F198107-198304

SMG=6

main33030-14591iSA60..5F198304-198308

SMG=6

main33030-14620iRA63198107-198208

SMG=10

main33030-14640iGA61..5F..(G,L,S)198107-198512

SMG=10

main33030-14660iMA61..5F198107-198308

SMG=11

main33030-14710iTA63,64..5F..(GTS,GTT)198210-198507

SMG=10

main33030-14750iGA61..GT198208-198308

SMG=10

main33030-14770iMA61..5F198308-198512

main33030-14820iGA61..GT198308-198512

2 parts on this diagram · 2 diagrams in section
