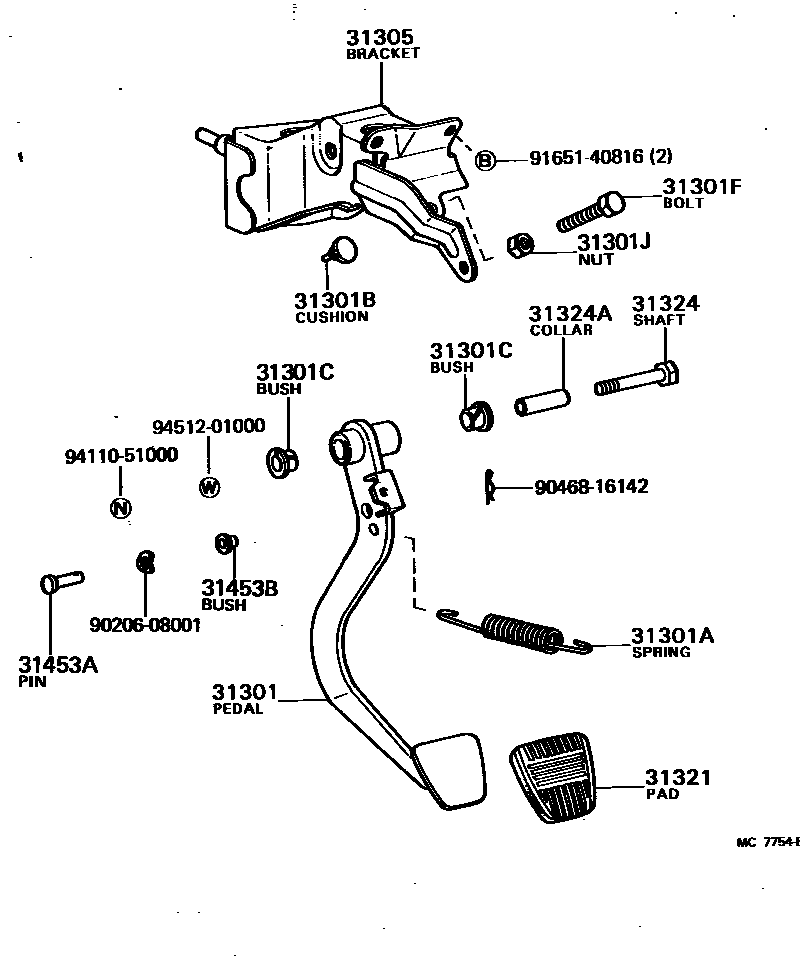

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-14050iGA61..5F..(G,L,S);RA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198512

main31301-24010iGA61,MA61,TA63,64..5F..(GT,GTS,GTT)198107-198302

sub31301-24030

main31301-24030iAA63,GA61,MA61,TA63,64..5F..(GT,GTS,GTT)198302-198512

31301ASPRING(FOR CLUTCH PEDAL)

main90506-14002iGA61..5F..(G,L,S);RA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198512

main90507-20005iAA63,GA61,MA61,TA63,64..5F..(GT,GTS,GTT)198107-198512

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iGA61..5F..(G,L,S);RA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198512

main90541-07010iAA63,GA61,MA61,TA63,64..5F..(GT,GTS,GTT)198107-198512

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iGA61,MA61..5F198512-198512

main90386-13192iAA63,GA61,MA61,RA63,SA60,TA6#..MTM198107-198512

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10105iAA63,GA61,MA61,TA63..5F..(GT,GTT)198308-198512

main90101-10109iGA61,MA61,TA63,64..5F..(GT,GTS,GTT)198204-198308

sub90101-10105

main90101-10369iGA61..5F..(G,L,S);RA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198512

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main90170-10114iAA63,GA61,MA61,TA63,64..5F..(GT,GTS,GTT)198204-198512

main94120-41000iGA61..5F..(G,L,S);RA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198512

31305BRACKET SUB-ASSY, CLUTCH PEDAL

main55107-14050iGA61,SA60..5F..(G,S,ST,SX)198308-198512

main55107-14100iAA63,GA61,MA61,TA63..5F..(GT,GTT)198308-198512

main55107-24010iGA61..5F..(G,L,S);RA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198308

main55107-24020iGA61,MA61,TA63,64..5F..(GT,GTS,GTT)198107-198308

31321PAD, CLUTCH PEDAL

main31321-14020iAA63,GA61,MA61,RA63,SA60,TA6#..MTM198107-198512

31324SHAFT, CLUTCH PEDAL

main90101-10039iAA63,GA61,MA61,RA63,SA60,TA6#..MTM198107-198512

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10021iAA63,GA61,MA61,RA63,SA60,TA6#..MTM198107-198512

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iAA63,GA61,MA61,RA63,SA60,TA6#..MTM198107-198512

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iAA63,GA61,MA61,RA63,SA60,TA6#..MTM198107-198512

9020608001

main90206-08001

9046816142

main90468-16142

9165140816

main91651-40816

9411051000

main94110-51000

9451201000

main94512-01000

17 parts on this diagram · 3 diagrams in section
