CARBURETOR ASSEMBLY

21100CARBURETOR ASSY

main21100-63010i1SU..SA60..MTM198107-198303

main21100-63011i1SU..SA60..MTM198303-198308

main21100-63012i1SU..SA60..5F198308-198507

main21100-63020i1SU..SA60..4FC198107-198303

main21100-63021i1SU..SA60..4FC198303-198308

main21100-63022i1SU..SA60..4FC198308-198507

main21100-63030i1SU..SA60..MTM198107-198303

COLD SPEC

main21100-63031i1SU..SA60..MTM198303-198307

COLD SPEC

main21100-63032i1SU..SA60..MTM198307-198507

COLD SPEC

main21100-63040i1SU..SA60..4FC198107-198303

COLD SPEC

main21100-63041i1SU..SA60..4FC198303-198307

COLD SPEC

main21100-63042i1SU..SA60..4FC198307-198507

COLD SPEC

21100KCARBURETOR KIT

main04211-63010i1SU..SA60198107-198208

main04211-63011i1SU..SA60198208-198303

main04211-63031i1SU..SA60198303-198507

21100LGASKET KIT, CARBURETOR

main04212-63010i1SU..SA60198107-198507

21673CAP, IDLE LIMIT

main21673-13280i1SU..SA60198208-198507

main21673-38020i1SU..SA60198107-198208

21901INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1

main21901-63010i1SU..SA60198107-198507

21911GASKET, CARBURETOR

main21911-63010×3i1SU..SA60198107-198507

21913INSULATOR, CARBURETOR HEAT, NO.2

main21902-63010i1SU..SA60198107-198405

main21902-63011i1SU..SA60198405-198507

9411040800

main94110-40800

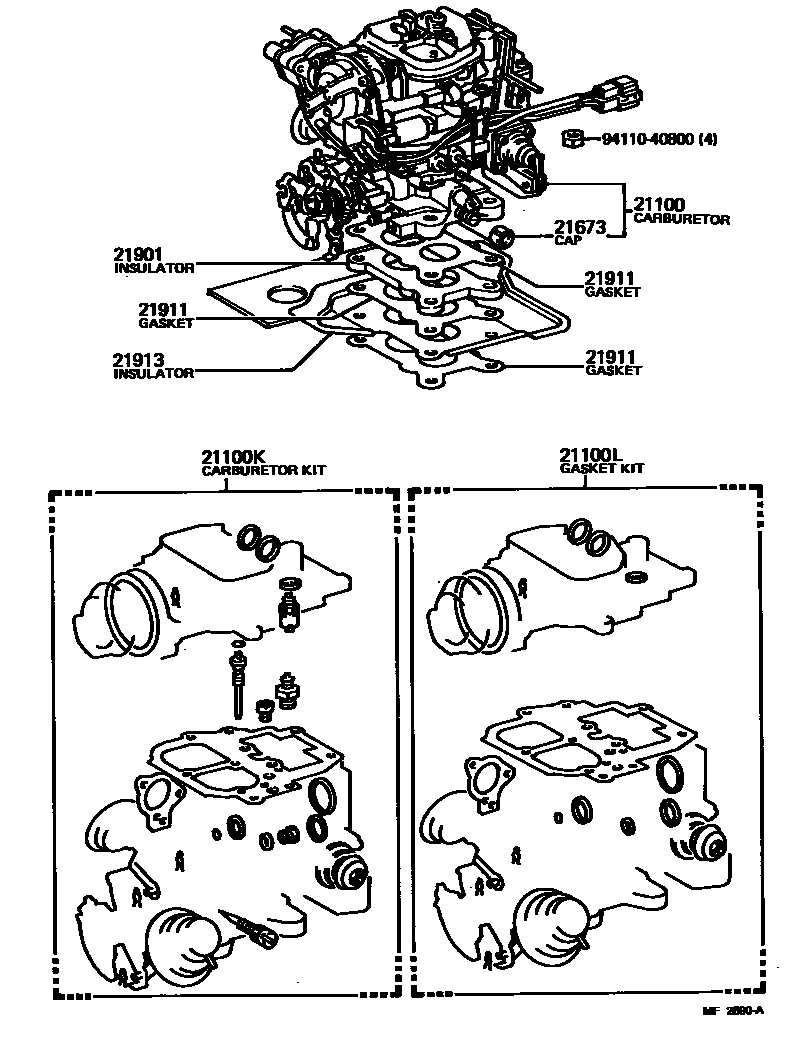

8 parts on this diagram · 1 diagram in section
