ALTERNATOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1

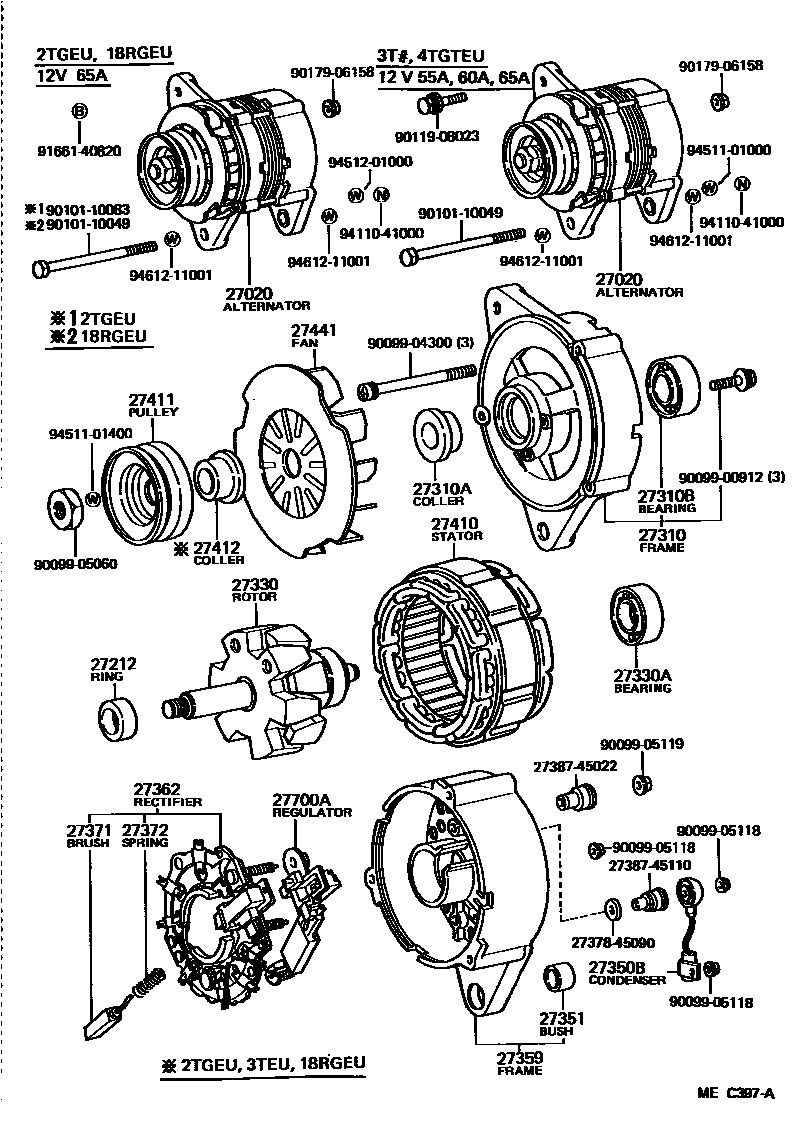

27020ALTERNATOR ASSY

main27020-63010i1SU..SA60198107-198507

main27060-16010i4AGEU..AA63198308-198507

main27060-28030i3TEU..TA63..5F198107-198308

main27060-28050i3TEU..TA63..4FC198107-198308

main27060-34040i18RGEU,2TGEU..RA63,TA61198107-198308

main27060-35050i3TGTEU,4TGTEU..TA63,64198210-198507

main27060-43030i5MGEU..MA61198108-198308

main27060-43040i5MGEU..MA61198107-198308

main27060-43060i5MGEU,MTEU..MA6#198308-198512

sub27060-43110

main27060-70040i1GEU..GA61198107-198308

main27060-70070i1GGEU..GA61198208-198512

sub27060-70140

main27060-70080i1GEU..GA61198308-198512

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27412-45070i18RGEU,1GEU,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,SA60,TA6#198107-198308

12V 55A,60A,65A

main27412-45070i1SU,3TGTEU..SA60,TA63198308-198507

12V 55A,65A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-16010i4AGEU..AA63198308-198501

12V 60A

main27310-16011i4AGEU..AA63198501-198507

12V 60A

main27310-38061i18RGEU,2TGEU,3T#,4TGTEU..RA63,TA6#198107-198507

12V 55A,60A,65A

main27310-43040i5MGEU,MTEU..MA6#198107-198308

12V 65A

main27310-43100i5MGEU,MTEU..MA6#198501-198512

12V 60A

sub27310-72101

main27310-63010i1SU..SA60198107-198409

12V 55A

main27310-63011i1SU..SA60198409-198507

12V 55A

main27310-70030i1GEU..GA61198107-198308

12V 65A

main27310-70070i1GGEU..GA61198208-198501

12V 60A

main27310-70071i1GGEU..GA61198501-198512

12V 60A

main27310-70080i1GEU..GA61198308-198501

12V 60A

main27310-70081i1GEU..GA61198501-198512

12V 60A

main27310-72010i5MGEU,MTEU..MA6#198308-198309

12V 60A

sub27310-72050

main27310-72050i5MGEU,MTEU..MA6#198309-198408

12V 60A

main27310-72090i5MGEU,MTEU..MA6#198408-198501

12V 60A

sub27310-72050

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-16030i1SU..SA60198409-198507

12V 55A

main27412-31040i1SU,3TGTEU..SA60,TA63198308-198409

12V 55A,65A

main27412-31040i18RGEU,1GEU,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,SA60,TA6#198107-198308

12V 55A,60A,65A

main27412-31040i3TGTEU..TA63198409-198507

12V 65A

main27412-63020i4AGEU..AA63198308-198507

12V 60A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10125i18RGEU,1GEU,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,SA60,TA6#198107-198308

12V 55A,60A,65A

main90099-10125i1SU,3TGTEU..SA60,TA63198308-198409

12V 55A,65A

main90099-10125i3TGTEU..TA63198409-198507

12V 65A

main90099-10141i1GGEU..GA61198208-198309

12V 60A

main90099-10142i1SU..SA60198409-198507

12V 55A

sub90099-10223

main90099-10152i4AGEU,1G#,5MGEU,MTEU..AA63,GA61,MA6#198309-198501

12V 60A

main90099-10159i4AGEU,1G#,5MGEU,MTEU..AA63,GA61,MA6#198501-198512

12V 60A

27330ROTOR ASSY, ALTERNATOR

main27330-15070i3TEU..TA63..5F198107-198308

12V 55A

sub27330-45090

main27330-43040i3TGTEU..TA63198107-198507

12V 65A

main27330-43040i3TEU..TA63..4FC198107-198308

12V 60A

main27330-63010i1SU..SA60198107-198507

12V 55A

main27330-63020i1GGEU..GA61198208-198303

12V 60A

sub27330-72101

sub27312-63020

main27330-63021i4AGEU,1GEU,5MGEU,MTEU..AA63,GA61,MA6#198303-198501

12V 60A

sub27330-72100

main27330-72100i4AGEU,1G#,5MGEU,MTEU..AA63,GA61,MA6#198501-198512

12V 60A

sub27330-72101

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i18RGEU,1GEU,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,SA60,TA6#198107-198308

12V 55A,60A,65A

main90099-10116i1SU,3TGTEU..SA60,TA63198308-198507

12V 55A,65A

main90099-10140i1GGEU..GA61198208-198512

12V 60A

27350BCONDENSER, ALTERNATOR

main90099-52065i18RGEU,1GEU,5MGEU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,TA6#198107-198308

12V 55A,60A,65A

sub90099-52034

main90099-52065i1SU..SA60198110-198507

12V 55A

sub90099-52034

main90099-52065i3TGTEU..TA63198308-198507

12V 65A

sub90099-52034

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i18RGEU,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..MA6#,RA63,SA60,TA6#198107-198308

12V 55A,60A,65A

main27351-38051i1SU,3TGTEU..SA60,TA63198308-198507

12V 55A,65A

main27351-70010i1GEU..GA61198107-198512

12V 65A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16010i4AGEU,5MGEU,MTEU..AA63,MA6#198308-198404

12V 60A

sub27359-16011

sub27370-16011

main27359-16011i4AGEU..AA63198404-198507

12V 60A

sub27359-16012

sub27384-16380

main27359-28030i18RGEU,2TGEU,3T#,4TGTEU..RA63,TA6#198107-198507

12V 55A,60A,65A

main27359-34080i2TGEU..TA61198211-198308

12V 65A

sub27359-28030

main27359-43020i5MGEU,MTEU..MA6#198107-198308

12V 65A

main27359-43050i5MGEU,MTEU..MA6#198404-198512

12V 60A

sub27359-16011

main27359-63010i1SU..SA60198107-198507

12V 55A

main27359-63020i1GGEU..GA61198208-198404

12V 60A

sub27359-63021

sub27370-63021

main27359-63021i1GGEU..GA61198404-198512

12V 60A

sub27359-63081

main27359-70030i1GEU..GA61198107-198308

12V 65A

main27359-70080i1GEU..GA61198308-198404

12V 60A

sub27359-70081

sub27370-16011

main27359-70081i1GEU..GA61198404-198512

12V 60A

27362RECTIFIER ASSY, W/BRUSH

main27362-15070i3TEU..TA63..5F198107-198308

12V 55A

main27362-43040i18RGEU,1GEU,5MGEU,2TGEU,3TGTEU,4TGTEU,MTEU..GA61,MA6#,RA63,TA6#198107-198507

12V 65A

main27362-43040i3TEU..TA63..4FC198107-198308

12V 60A

main27362-63010i1SU..SA60198107-198110

12V 55A

main27362-63011i1SU..SA60198110-198507

12V 55A

27371BRUSH, ALTERNATOR

main27371-31011i18RGEU,1GEU,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,SA60,TA6#198107-198308

12V 55A,60A,65A

main27371-31011i1SU,3TGTEU..SA60,TA63198308-198507

12V 55A,65A

main27371-63020i1GGEU..GA61198208-198512

12V 60A

sub27371-70300

27372SPRING, ALTERNATOR BRUSH

main27372-31011i18RGEU,1GEU,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,SA60,TA6#198107-198308

12V 55A,60A,65A

main27372-31011i1SU,3TGTEU..SA60,TA63198308-198507

12V 55A,60A

main27372-63020i1GGEU..GA61198208-198501

12V 60A

sub27372-87501

main27372-72100i4AGEU,1G#,5MGEU,MTEU..AA63,GA61,MA6#198501-198512

12V 60A

sub27372-63020

27410STATOR ASSY, ALTERNATOR

main27410-41080i3TEU..TA63..5F198107-198308

12V 55A

main27410-43040i3TEU..TA63..4FC198107-198507

12V 55A,65A

main27410-43040i3TEU..TA63..4FC198107-198308

12V 60A

27411PULLEY, ALTERNATOR

main27411-16010i4AGEU..AA63198308-198501

12V 60A

main27411-16011i4AGEU..AA63198501-198507

12V 60A

main27411-26111i18RGEU,2TGEU..RA63,TA61198107-198308

12V 65A

main27411-31042i3TEU..TA63198107-198308

12V 55A,60A

main27411-35090i3TGTEU,4TGTEU..TA63,64198210-198507

12V 65A

main27411-41071i5MGEU..MA61198108-198308

12V 65A

main27411-43050i5MGEU,MTEU..MA6#198308-198501

12V 60A

main27411-43120i5MGEU,MTEU..MA6#198501-198512

12V 60A

main27411-45010i1GEU..GA61198107-198308

12V 65A

main27411-45030i5MGEU..MA61198107-198308

12V 65A

main27411-63010i1SU..SA60198107-198202

12V 55A

sub27411-63011

sub27441-63030

main27411-63011i1SU..SA60198202-198507

12V 55A

main27411-70050i1GGEU..GA61198208-198210

12V 60A

main27411-70051i1GGEU..GA61198210-198501

12V 60A

main27411-70052i1GGEU..GA61198501-198512

12V 60A

sub27411-70053

main27411-70090i1GEU..GA61198308-198501

12V 60A

main27411-70091i1GEU..GA61198501-198512

12V 60A

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-44031i18RGEU,2TGEU,3TEU..RA63,TA61,63198107-198308

12V 55A,60A

main27412-63020i1GGEU..GA61198208-198210

12V 60A

27441FAN, ALTERNATOR

main27441-34111i18RGEU,2TGEU,3TGTEU,4TGTEU..RA63,TA6#198107-198507

12V 65A

main27441-34111i3TEU..TA63..4FC198107-198308

12V 60A

main27441-44050i5MGEU,MTEU..MA6#198107-198308

12V 65A

main27441-45110i3TEU..TA63..5F198107-198308

12V 55A

main27441-63030i1SU..SA60198202-198507

12V 55A

main27441-70040i1GEU..GA61198107-198308

12V 65A

27700AREGULATOR ASSY, GENERATOR

main27700-15060i1SU..SA60..SX198308-198512

COLD SPEC

sub27700-15061

main27700-43010i18RGEU,1GEU,5MGEU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,TA6#198107-198308

12V 55A,60A,65A

main27700-43010i3TGTEU..TA63198308-198507

12V 65A

main27700-63010i1SU..SA60198107-198507

12V 55A

main27700-63020i1GGEU..GA61198208-198304

12V 60A

main27700-63021i1GGEU..GA61198304-198512

12V 60A

sub27700-70030

2737845090INSULATOR, ALTERNATOR, NO.1

main27378-45090

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110049

main90101-10049

9010110083

main90101-10083

9011908023

main90119-08023

9017906158

main90179-06158

9166140820

main91661-40820

9411041000

main94110-41000

9451101000

main94511-01000

9451101400

main94511-01400

9451201000

main94512-01000

9461211001

main94612-11001

36 parts on this diagram · 7 diagrams in section
