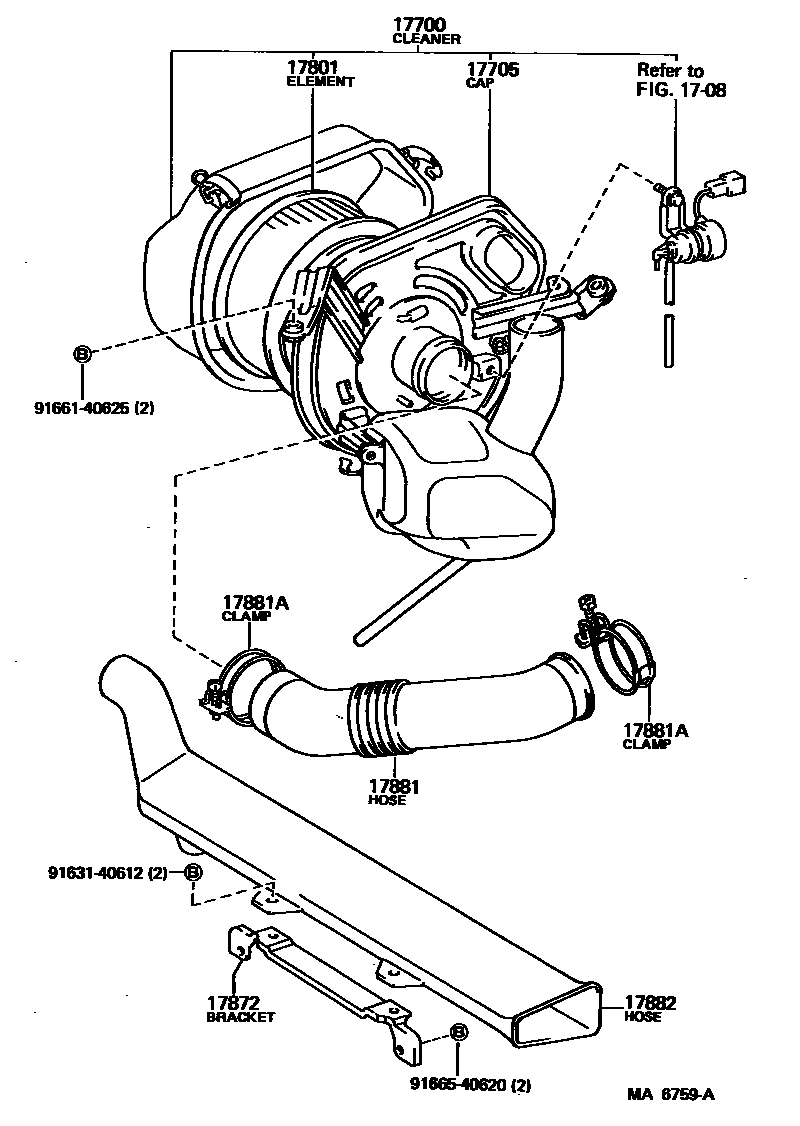

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0010 1

1708

17700CLEANER ASSY, AIR

main17700-16170i4AGEU..AA63198308-198507

main17700-26260i2TGEU..TA61198107-198308

main17700-28070i3TEU..TA63198107-198308

main17700-28080i3TGTEU,4TGTEU..TA63,64198210-198507

main17700-34670i18RGEU..RA63198107-198208

main17700-41590iMTEU..MA63198202-198512

main17700-43040i1G#..GA61198107-198512

main17700-63010i1SU..SA60198107-198507

17705CAP SUB-ASSY, AIR CLEANER

main17705-16060i4AGEU..AA63198308-198507

main17705-26060i2TGEU..TA61198107-198308

main17705-28040i3TEU..TA63198107-198308

main17705-34250i3TGTEU,4TGTEU..TA63,64198107-198507

main17705-41180iMTEU..MA63198202-198512

main17705-43030i1G#..GA61198107-198512

main17705-63010i1SU..SA60198107-198507

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-24010i2TGEU,3TEU..TA61,63198107-198308

main17801-25010i1SU..SA60198107-198507

main17801-41110i1G#..GA61198107-198512

main17801-45020i3TGTEU,4TGTEU..TA63,64198210-198507

main17801-70010iMTEU..MA63198202-198512

17872BRACKET, INTAKE AIR CONNECTOR

main17872-16020i4AGEU..AA63198308-198507

17881HOSE, AIR CLEANER, NO.1

main17881-16030i4AGEU..AA63198308-198507

main17881-26051i2TGEU..TA61198107-198308

main17881-28010i3TEU..TA63198107-198308

main17881-28030i3TGTEU,4TGTEU..TA63,64198210-198305

main17881-28031i3TGTEU,4TGTEU..TA63,64198305-198507

main17881-34130i18RGEU..RA63198107-198208

main17881-41070iMTEU..MA63198202-198308

main17881-41080iMTEU..MA63198308-198512

main17881-43021i5MGEU..MA61198107-198512

main17881-63010i1SU..SA60198107-198507

sub17881-74040

main17881-70020i1GEU..GA61198107-198512

main17881-70050i1GGEU..GA61198208-198512

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-58003iMTEU..MA63198308-198512

TURBO SIDE

main90460-65003iMTEU..MA63198308-198512

INTER COOLER SIDE

main90460-75001×2iMTEU..MA63198202-198308

main90460-95001×2i1GGEU..GA61198208-198501

main96111-10460i1SU..SA60198107-198507

main96111-10710i3TGTEU,4TGTEU..TA63,64198210-198507

PIPE SIDE

main96111-10750×2i4AGEU..AA63198308-198507

main96111-10800i3TGTEU,4TGTEU..TA63,64198107-198512

AIR FLOW METER SIDE

main96111-10830×2i5MGEU..MA61198107-198512

main96111-10900i1GGEU..GA61198501-198512

PIPE SIDE

17882HOSE, AIR CLEANER, NO.2

main17341-88280i3TGTEU,4TGTEU..TA63,64198210-198507

main17882-14030i1SU..SA60198107-198507

main17882-16040i4AGEU..AA63198308-198507

main17882-41140iMTEU..MA63198202-198512

main17882-43030i5MGEU..MA61198107-198512

main17882-70020i1GEU..GA61198107-198512

main17882-70040i1GGEU..GA61198208-198512

9163140612

main91631-40612

9166140625

main91661-40625

9166540620

main91665-40620

11 parts on this diagram · 9 diagrams in section
