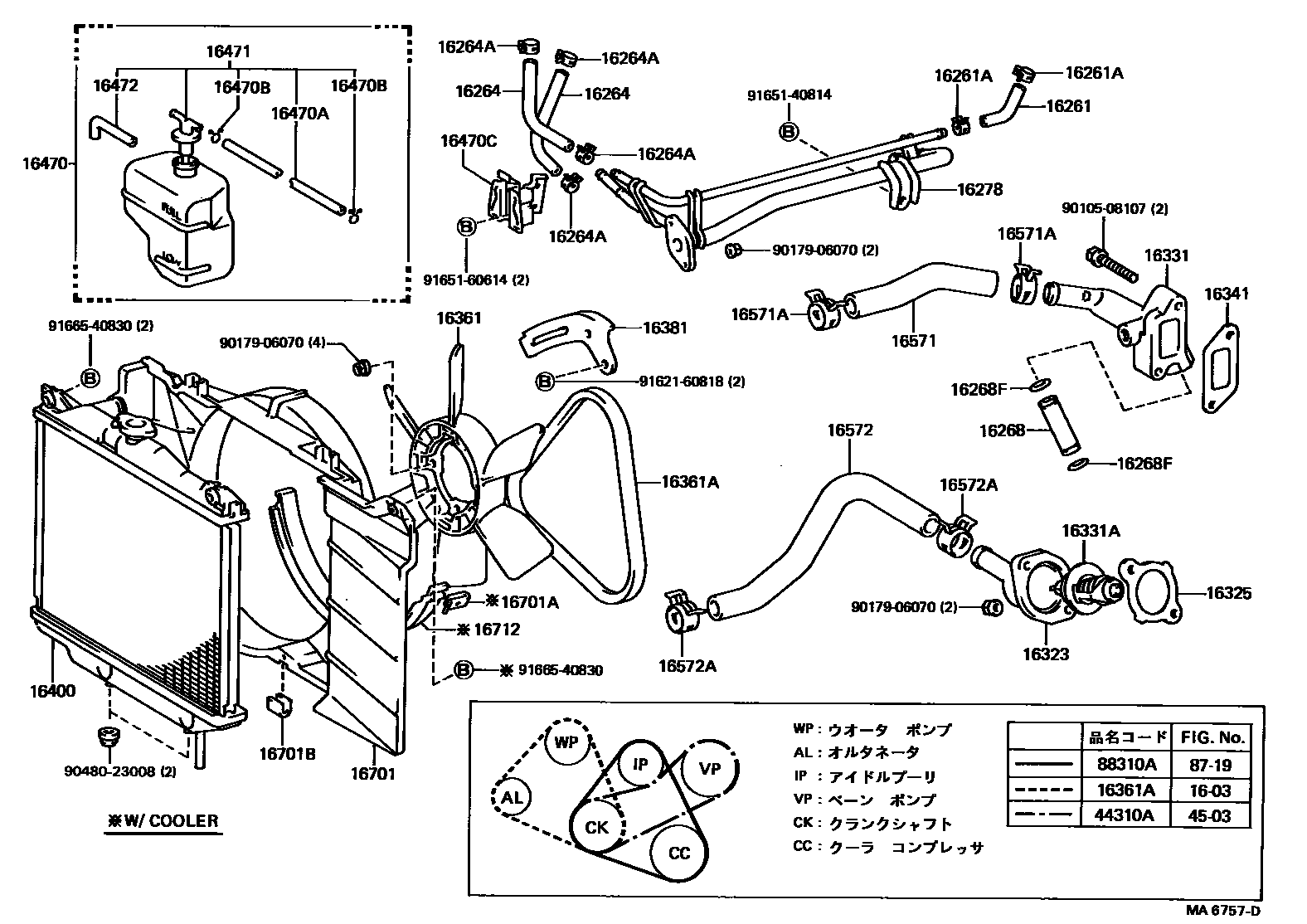

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1 0020 1 0021 1 0022 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16261HOSE, WATER BY-PASS

main16261-16020i4AGEU..AA63198308-198507

main16261-25020i3TEU..TA63198107-198308

main16261-41090iMTEU..MA63198308-198512

main16261-63010i1SU..SA60198107-198507

main16261-70020×3i1GEU..GA61198107-198512

main16261-88220i2TGEU..TA61198107-198308

main16261-88271i18RGEU..RA63198107-198208

main16261-88280i3TGTEU,4TGTEU..TA63,64198210-198507

main16261-88300i1GGEU..GA61198208-198512

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90460-32001×2i1GGEU..GA61198208-198304

main90467-13001×6i1GEU..GA61; 4AGEU..AA63; MTEU..MA63198107-198512

main90467-20005×2i3TEU..TA63198107-198308

main90467-20134×2i18RGEU..RA63198107-198208

main90467-23001×2i2TGEU,3TGTEU,4TGTEU..TA6#198107-198507

main90467-26003×2i1GGEU..GA61198304-198512

main96111-10250×2i1SU..SA60198107-198308

main96112-10250×2i1SU..SA60198308-198507

16264HOSE, WATER BY-PASS, NO.2

main16264-16020×2i4AGEU..AA63198308-198507

main16264-28010i3TEU..TA63198107-198308

main99553-00130×2i1SU..SA60198308-198405

L=130

main99553-00200×2i1SU..SA60198307-198308

COLD SPEC

main99553-10100×3i1GEU..GA61198107-198308

main99555-00140×2i1SU..SA60198405-198507

main99555-10100×3i1GEU..GA61198308-198512

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-11009×4i1SU..SA60198307-198308

COLD SPEC

main90467-13001×6i1GEU..GA61; 4AGEU..AA63198107-198512

main90467-20005×2i3TEU..TA63198107-198308

16268PIPE, WATER BY-PASS, NO.1

main16268-16010i4AGEU..AA63198308-198504

main16268-16011i4AGEU..AA63198504-198507

main16268-41140i5MGEU,MTEU..MA6#198107-198512

main16268-63030i1SU..SA60198307-198308

COLD SPEC

main16268-70010i1GEU..GA61198107-198408

main16268-70011i1GEU..GA61198408-198512

main16268-88273i18RGEU..RA63198107-198208

main16268-88280i3TGTEU..TA63198308-198507

main16268-88300i1GGEU..GA61198208-198602

16268FRING, O(FOR WATER BY-PASS PIPE)

main96711-24013×2i4AGEU..AA63198308-198507

main96761-24018×2i1GGEU..GA61198208-198512

16278PIPE, WATER BY-PASS, NO.2

main16278-16020i4AGEU..AA63198308-198507

main16278-41030iMTEU..MA63198308-198512

main16278-70021i1GEU..GA61198107-198501

main16278-70040i1GEU..GA61198501-198512

main16278-88300i1GGEU..GA61198208-198512

16323HOUSING, WATER INLET

main16323-16020i4AGEU..AA63198308-198507

main16323-63010i1SU..SA60198107-198507

main16323-70010i1GEU..GA61198107-198208

main16323-70011i1GEU..GA61198208-198512

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i1GGEU..GA61; 1SU..SA60198107-198512

main16325-70020i1GEU..GA61198107-198112

main16325-70021i1GEU..GA61198112-198208

16331OUTLET, WATER

main16304-63010i1SU..SA60198307-198308

COLD SPEC

main16331-16020i4AGEU..AA63198308-198507

main16331-26040i2TGEU..TA61198107-198308

main16331-26060i3TEU..TA63198107-198308

main16331-41071iMTEU..MA63198202-198308

main16331-43010i5MGEU..MA61198107-198512

main16331-43020iMTEU..MA63198308-198512

main16331-63010i1SU..SA60..MTM198107-198507

main16331-63020i1SU..SA60..4FC198107-198507

main16331-63030i1SU..SA60198107-198307

COLD SPEC

main16331-70010i1GEU..GA61198107-198308

main16331-70030i1GEU..GA61198308-198512

main16331-88270i18RGEU..RA63198107-198208

main16331-88280i3TGTEU,4TGTEU..TA63,64198210-198507

main16331-88300i1GGEU..GA61198208-198512

16331ATHERMOSTAT

main90916-03034i3TEU..TA63198107-198212

*WAX 82-95,*(F)

main90916-03036i18RGEU..RA63; 2TGEU,3TGTEU,4TGTEU..TA6#198107-198304

*WAX 88-100,*(F)

main90916-03037i3TEU..TA63; MTEU..MA63198107-198212

*WAX 82-95,KUZEH

main90916-03040i3TEU..TA63; MTEU..MA63198107-198212

COLD SPEC,*WAX 88-100,KUZEH

main90916-03046i1SU..SA60; 4AGEU..AA63198107-198507

main90916-03054iMTEU..MA63198212-198512

main90916-03055i3TGTEU,4TGTEU..TA63,64198304-198507

main90916-03060i1GEU..GA61198107-198512

main90916-03063i1GGEU..GA61198208-198512

16341GASKET, WATER OUTLET

main16341-16010i4AGEU..AA63198308-198507

main16341-38010i3TEU..TA63198107-198201

main16341-38011i3TEU..TA63198201-198308

main16341-41010iMTEU..MA63198202-198512

main16341-43010i5MGEU..MA61198107-198512

main16341-63010i1SU..SA60198107-198507

main16341-70010i1GEU..GA61198107-198512

main16341-88260i18RGEU..RA63; 2TGEU..TA61198107-198208

main16341-88280i2TGEU,3TGTEU,4TGTEU..TA6#198208-198507

16361FAN

main16361-16010i3TGTEU..TA63198405-198507

main16361-18010i3T#,4TGTEU..TA63,64198107-198405

main16361-26040i2TGEU..TA61198107-198308

main16361-26050i2TGEU..TA61198107-198308

W/COOLER

main16361-34030i18RGEU..RA63198107-198208

main16361-41070i1GGEU..GA61198208-198512

main16361-41090i5MGEU,MTEU..MA6#198107-198512

main16361-45020i1SU..SA60198107-198507

main16361-70010i1GEU..GA61198107-198512

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02076i5MGEU..MA61198107-198202

main90916-02085i5MGEU..MA61198202-198308

main90916-02148i4AGEU..AA63198504-198507

main99321-00845i3TGTEU,4TGTEU..TA63,64198210-198507

main99321-00850i18RGEU..RA63; 2TGEU..TA61198107-198308

main99321-00885i3TEU..TA63198107-198308

main99332-51130i1GEU..GA61198107-198308

main99363-01150i1SU..SA60198107-198507

main99364-01100i1GEU..GA61198308-198512

main99364-51160i1GGEU..GA61198208-198512

main99365-50830i4AGEU..AA63198308-198504

main99367-00920i5MGEU,MTEU..MA6#198308-198512

16381BAR, FAN BELT ADJUSTING

main16381-16010i4AGEU..AA63198308-198507

main16381-25010i2TGEU,3TEU..TA61,63198107-198308

main16381-34030i18RGEU..RA63198107-198208

main16381-43010i5MGEU,MTEU..MA6#198308-198512

main16381-45011i5MGEU,MTEU..MA6#198107-198308

main16381-63010i1SU..SA60198107-198507

main16381-70010i1GEU..GA61198107-198308

main16381-70020i1GEU..GA61198308-198408

main16381-70021i1GEU..GA61198408-198512

main16381-88280i3TGTEU,4TGTEU..TA63,64198210-198507

main16381-88300i1GGEU..GA61198208-198512

16400RADIATOR ASSY

main16400-15081i4AGEU..AA63198308-198507

W/CAP

main16400-26330i2TGEU..TA61198107-198308

W/CAP

main16400-26340i3TEU..TA63..4FC198107-198308

W/CAP

main16400-28060i3TEU..TA63..5F198107-198308

W/CAP

main16400-28070i3TGTEU,4TGTEU..TA63,64..5F198210-198507

W/CAP

main16400-28080i3TGTEU..TA63..4FC198210-198308

W/CAP

main16400-28081i3TGTEU..TA63..4FC198404-198507

W/CAP

main16400-37090i18RGEU..RA63198107-198208

W/CAP

main16400-41330iMTEU..MA63198202-198512

main16400-43030i1G#..GA61..5F; 5MGEU..MA61..5F198107-198512

main16400-43040i1GEU..GA61..4FC; 5MGEU..MA61..4FC198107-198512

main16400-63010i1SU..SA60..MTM198107-198507

W/CAP

main16400-63020i1SU..SA60..4FC198107-198507

W/CAP

main16410-28081i3TGTEU..TA63..4FC198308-198404

W/O CAP

16470TANK ASSY, RADIATOR RESERVE

main16470-16010i4AGEU..AA63198308-198507

main16470-26080i18RGEU..RA63; 2TGEU,3T#,4TGTEU..TA6#198107-198308

main16470-28040i3TGTEU..TA63198308-198507

main16470-41140iMTEU..MA63198308-198512

main16470-70010i1G#..GA61; 5MGEU,MTEU..MA6#198107-198308

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90099-33534i4AGEU..AA63198308-198507

main90445-12013i18RGEU..RA63; 2TGEU,3T#,4TGTEU..TA6#198107-198507

main90445-12043i1G#..GA61; 5MGEU,MTEU..MA6#198107-198512

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2i18RGEU..RA63; 1G#..GA61; 2TGEU,3T#,4TGTEU..TA6#; 4AGEU..AA63; 5MGEU,MTEU..MA6#198107-198512

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16402-16010i4AGEU..AA63198308-198507

main16402-26010i18RGEU..RA63; 2TGEU,3T#,4TGTEU..TA6#198107-198507

16471CAP SUB-ASSY, RESERVE TANK

main16405-16010i4AGEU..AA63198308-198507

main16405-28010i3TGTEU..TA63198310-198507

main16405-41140iMTEU..MA63198308-198512

16472HOSE, BREATHER

main85338-12020i4AGEU..AA63198308-198507

main85338-22020iMTEU..MA63198308-198512

main85338-30010i1G#..GA61; 3TGTEU..TA63; 5MGEU..MA61198308-198512

16571HOSE, RADIATOR, INLET

main16571-16020i4AGEU..AA63198308-198507

main16571-28030i3TEU..TA63198107-198308

W/PS

main16571-34140i18RGEU..RA63198107-198208

main16571-41100iMTEU..MA63198202-198308

main16571-43010i5MGEU..MA61198107-198512

main16571-43040iMTEU..MA63198308-198512

main16571-63010i1SU..SA60198107-198507

main16571-70020i1GEU..GA61198107-198512

main16571-70050i1GGEU..GA61198208-198512

main16572-26050i2TGEU..TA61198107-198308

main16572-28010i3TGTEU,4TGTEU..TA63,64198210-198507

main90916-01143i3TEU..TA63198107-198308

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-33002×2i4AGEU..AA63198506-198507

main90467-34001×2i1SU..SA60; 4AGEU..AA63198107-198406

main90467-37001×2i18RGEU..RA63; 1G#..GA61; 2TGEU,3T#,4TGTEU..TA6#; 5MGEU,MTEU..MA6#198107-198512

16572HOSE, RADIATOR, OUTLET

main16571-26090i2TGEU,3T#,4TGTEU..TA6#198107-198308

main16571-28040i3TGTEU..TA63198308-198507

main16572-16030i4AGEU..AA63198308-198507

main16572-34090i18RGEU..RA63198107-198208

main16572-41100iMTEU..MA63198202-198410

main16572-41101iMTEU..MA63198410-198512

main16572-43010i5MGEU..MA61198107-198410

main16572-43011i5MGEU..MA61198410-198512

main16572-63010i1SU..SA60198107-198507

main16572-70020i1GEU..GA61198107-198301

OD=44

main16572-70021i1GEU..GA61198301-198512

OD=42

main16572-70050i1GGEU..GA61198208-198501

main16572-70051i1GGEU..GA61198501-198512

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-33002×2i4AGEU..AA63198506-198507

main90467-34001×2i1SU..SA60; 4AGEU..AA63198107-198406

main90467-37001×2i1GEU..GA61198304-198503

main90467-37002×2i5MGEU,MTEU..MA6#198410-198512

main96111-10430×2i1GEU..GA61198301-198304

ID=43

main96111-10460i18RGEU..RA63; 2TGEU,3T#,4TGTEU..TA6#198107-198507

RADIATOR SIDE

main96111-10490i18RGEU..RA63; 2TGEU,3T#,4TGTEU..TA6#198107-198507

WATER PUMP SIDE

16701SHROUD SUB-ASSY, FAN

main16711-15070i4AGEU..AA63198308-198507

main16711-26090i2TGEU..TA61198107-198308

main16711-28090i3T#,4TGTEU..TA63,64198107-198305

main16711-28091i3T#,4TGTEU..TA63,64198305-198507

main16711-34110i18RGEU..RA63198107-198208

main16711-43020i5MGEU,MTEU..MA6#198107-198301

main16711-43021i5MGEU,MTEU..MA6#198301-198512

main16711-63010i1SU..SA60198107-198507

main16711-70020i1G#..GA61198107-198512

16701ACLIP(FOR FAN SHROUD)

main90468-06013×2i18RGEU..RA63; 1G#..GA61; 1SU..SA60; 2TGEU,3T#,4TGTEU..TA6#; 4AGEU..AA63; 5MGEU,MTEU..MA6#198107-198512

W/COOLER

16701BCUSHION, FAN SHROUD

main90541-11002×2i18RGEU..RA63; 1SU..SA60; 2TGEU,3T#,4TGTEU..TA6#; 4AGEU..AA63198107-198507

16712SHROUD, FAN, NO.2

main16712-43020i5MGEU,MTEU..MA6#198107-198301

W/COOLER

main16712-43021i5MGEU,MTEU..MA6#198301-198512

W/COOLER

main16712-44040i2TGEU,3T#,4TGTEU..TA6#; 4AGEU..AA63198107-198507

W/COOLER

main16712-54050i18RGEU..RA63; 1SU..SA60198107-198507

W/COOLER

main16712-70010i1G#..GA61198107-198512

W/COOLER

44310ABELT, V(FOR VANE PUMP)

main90916-02092iGA61..G,S198107-198512

main90916-02107iMA6#198107-198512

main99332-00840iTA63..GTT198210-198507

main99332-00875iRA63198202-198208

main99332-01080iTA63..ST,SX198107-198308

main99363-00770iSA60..ST198107-198302

main99363-00960iGA61..GT198208-198512

main99363-50760iSA60..SX198308-198507

main99365-50910iAA63198308-198507

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00910iGA61..G,L,S198107-198308

main99322-00980iTA63,64..GTS,GTT198210-198507

main99322-50950iTA61,63..GT,GTR,ST,SX198107-198308

main99322-51230iRA63198107-198208

main99332-00950iMA63198202-198512

main99332-10980iMA61198107-198512

main99364-00850iGA61..G,S198308-198512

main99364-00860iGA61..GT198208-198512

main99364-50810iSA60198107-198507

main99365-01040iAA63198308-198507

main99365-50800iAA63198308-198507

9010508107

main90105-08107

9017906070

main90179-06070

9048023008

main90480-23008

9162160818

main91621-60818

9165140814

main91651-40814

9165160614

main91651-60614

9166540830

main91665-40830

42 parts on this diagram · 22 diagrams in section
