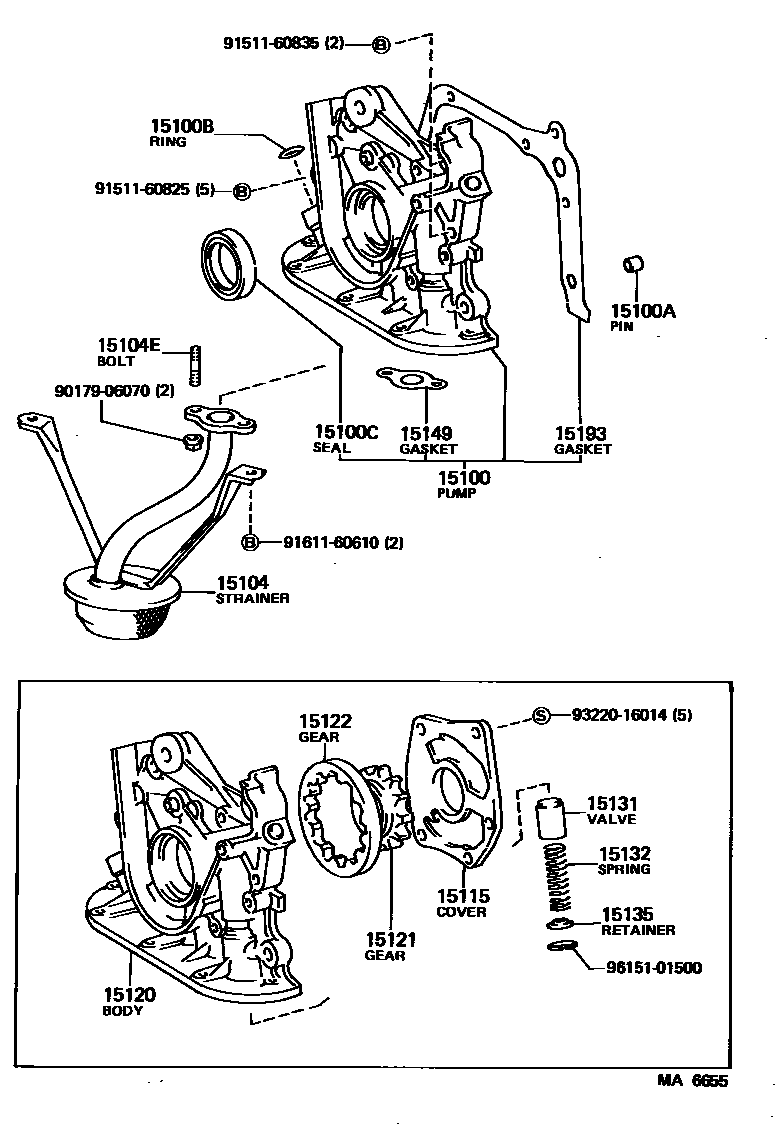

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

15100PUMP ASSY, OIL

main15100-19025i4AGEU..AA63198308-198507

main15100-26020i2TGEU,3TEU..TA61,63198107-198308

main15100-43010i5MGEU,MTEU..MA6#198107-198408

main15100-43020i5MGEU..MA61198408-198512

main15100-43040iMTEU..MA63198408-198512

main15100-63010i1SU..SA60198107-198507

main15100-70011i1GEU..GA61198107-198512

main15100-88271i18RGEU..RA63198107-198208

main15100-88280i3TGTEU,4TGTEU..TA63,64198210-198507

main15100-88300i1GGEU..GA61198208-198512

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021×2i4AGEU..AA63198308-198507

15100BRING, O(FOR OIL PUMP)

main15188-63010i1SU..SA60198107-198507

main15188-70010i1G#..GA61198107-198512

main96711-19010i4AGEU..AA63198308-198507

15100CSEAL(FOR OIL PUMP)

main15165-70010i1G#..GA61; 1SU..SA60198107-198512

main90311-32001i4AGEU..AA63198308-198507

15104STRAINER SUB-ASSY, OIL

main15104-15080i4AGEU..AA63198308-198507

main15104-63010i1SU..SA60198107-198507

main15104-70010i1G#..GA61198107-198512

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06022×2i4AGEU..AA63198308-198407

main90116-06049×2i4AGEU..AA63198407-198507

15115COVER, OIL PUMP

main15012-26020i2TGEU,3TEU..TA61,63198107-198308

main15115-16010i4AGEU..AA63198308-198507

15120BODY SUB-ASSY, OIL PUMP

main15120-16010i4AGEU..AA63198308-198507

15121GEAR, OIL PUMP DRIVE

main15102-41040iMTEU..MA63198408-198512

main15102-42010i5MGEU..MA61198408-198512

main15121-16010i4AGEU..AA63198308-198507

15122GEAR, OIL PUMP DRIVEN

main15122-16010i4AGEU..AA63198308-198507

main15122-41040i5MGEU,MTEU..MA6#198107-198408

main15122-42010i5MGEU..MA61198408-198512

15131VALVE, OIL PUMP RELIEF

main15131-22010i2TGEU,3T#,4TGTEU..TA6#198107-198507

main15131-24010i1G#..GA61; 1SU..SA60; 4AGEU..AA63; 5MGEU,MTEU..MA6#198107-198512

main15131-41010i18RGEU..RA63198107-198208

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i18RGEU..RA63; 1G#..GA61; 1SU..SA60; 2TGEU,3T#,4TGTEU..TA6#; 4AGEU..AA63198107-198512

main15132-46010i5MGEU,MTEU..MA6#198107-198512

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-15010i1SU..SA60; 4AGEU..AA63198107-198507

15149GASKET, OIL STRAINER FLANGE

main15149-15010i4AGEU..AA63198308-198507

15193GASKET, OIL PUMP

main15193-33011i18RGEU..RA63198107-198208

main15197-15011i4AGEU..AA63198308-198507

main15197-63010i1SU..SA60198107-198507

9017906070

main90179-06070

9151160825

main91511-60825

9151160835

main91511-60835

9161160610

main91611-60610

9322016014

main93220-16014

9615101500

main96151-01500

21 parts on this diagram · 7 diagrams in section
