Toyota CELICA — TIMING BELT

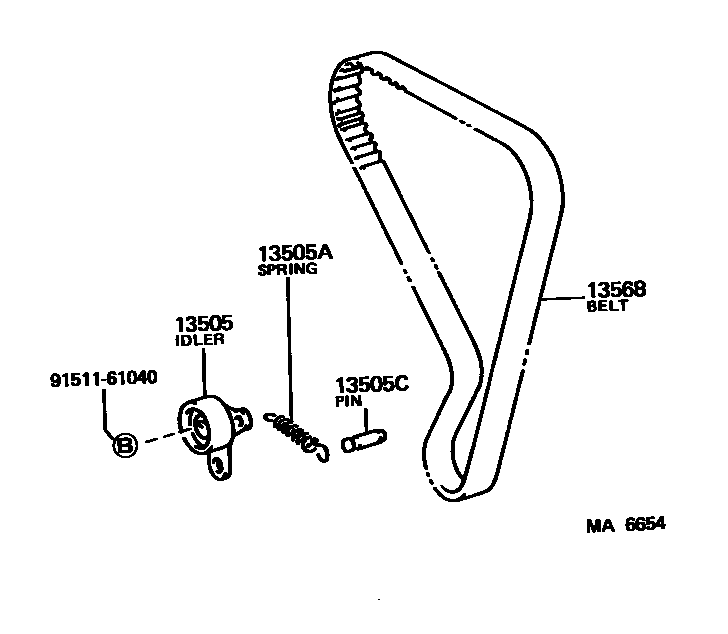

Parts diagram

13505IDLER SUB-ASSY, TIMING BELT, NO.1

13505ASPRING, TENSION(FOR IDLER)

13505CPIN(FOR IDLER SPRING TENSION)

13568BELT, TIMING

9151161040

5 parts on this diagram · 5 diagrams in section

TIMING BELT for Toyota CELICA

This section contains 21 genuine Toyota parts for the TIMING BELT system of the Toyota CELICA. Key components include: IDLER SUB-ASSY, TIMING BELT, NO.2, IDLER SUB-ASSY, TIMING BELT, NO.1, SPRING, TENSION(FOR IDLER), PIN(FOR IDLER SPRING TENSION), PULLEY, PUMP DRIVE SHAFT.
