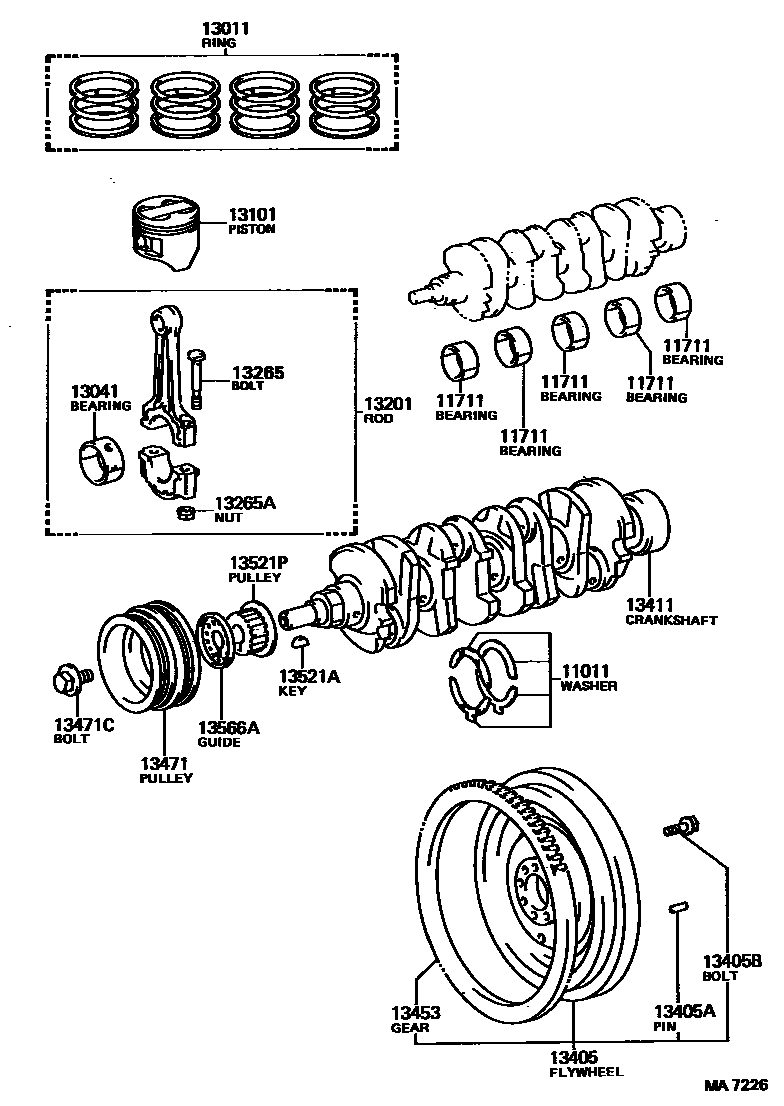

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
O/S 0.125
O/S 0.250
11711BEARING, CRANKSHAFT
NO.1,MARK"1",MARK 1
NO.1,MARK"2",MARK 2
NO.1,MARK"3",MARK 3
NO.1,MARK"4",MARK 4
NO.1,MARK"5",MARK 5
NO.1,MARK"1",*53,MARK 1; NO.1,MARK"1",MARK 1
NO.1,MARK"2",*53,MARK 2; NO.1,MARK"2",MARK 2
NO.1,MARK"3",*53,MARK 3; NO.1,MARK"3",MARK 3
MARK"1",MARK 1
MARK"2",MARK 2
MARK"3",MARK 3
MARK"1",MARK 1
MARK"2",MARK 2
MARK"3",MARK 3
NO.2,MARK"1",MARK 1
NO.2,MARK"2",MARK 2
NO.2,MARK"3",MARK 3
NO.2,MARK"4",MARK 4
NO.2,MARK"5",MARK 5
NO.3 MARK"1",MARK 1
NO.3 MARK"2",MARK 2
NO.3 MARK"3",MARK 3
NO.2,3,4,5,6 MARK"1",MARK 1
NO.2,3,4,5,6 MARK"2",MARK 2
NO.2,3,4,5,6 MARK"3",MARK 3
NO.1,7 MARK"1",MARK 1
NO.1,7 MARK"2",MARK 2
NO.1,2,4,5 MARK"3",MARK 3
NO.2,3,MARK"1",*53,MARK 1; NO.2,3,MARK"1",MARK 1
NO.2,3,MARK"2",*53,MARK 2; NO.2,3,MARK"2",MARK 2
NO.2,3,MARK"3",*53,MARK 3; NO.2,3,MARK"3",MARK 3
MARK"2",MARK 2
MARK"3",MARK 3
MARK"4",MARK 4
MARK"5",MARK 5
MARK"6",MARK 6
MARK"1",MARK 1
MARK"2",MARK 2
MARK"3",MARK 3
13011RING SET, PISTON
STD
STD
STD
STD
STD
STD
STD
STD
STD
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.75
O/S 0.75
O/S 0.75
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00
13041BEARING, CONNECTING ROD
MARK"1",MARK 1
MARK"2",MARK 2
MARK"3",MARK 3
MARK"3",MARK 3
MARK"4",MARK 4
MARK"5",MARK 5
MARK"6",MARK 6
MARK"7",MARK 7
MARK"3",MARK 3
MARK"4",MARK 4
MARK"5",MARK 5
MARK"6",MARK 6
MARK"7",MARK 7
MARK"1",MARK 1
MARK"2",MARK 2
MARK"3",MARK 3
MARK"4",MARK 4
MARK"5",MARK 5
MARK"1",MARK 1
MARK"2",MARK 2
MARK"3",MARK 3
MARK"3",MARK 3
MARK"4",MARK 4
MARK"5",MARK 5
MARK"3",MARK 3
MARK"4",MARK 4
MARK"5",MARK 5
MARK"6",MARK 6
MARK"7",MARK 7
MARK"3",MARK 3
MARK"4",MARK 4
MARK"5",MARK 5
13101PISTON SUB-ASSY, W/PIN
STD
STD
STD
STD
STD
STD
STD
STD
STD
STD
STD
STD
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.75
O/S 0.75
O/S 0.75
O/S 0.75
O/S 0.75
O/S 0.75
O/S 0.75
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00
13201ROD SUB-ASSY, CONNECTING
13265BOLT, CONNECTING ROD
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-08054×3i18RGEU..RA63; 1G#..GA61..5F; 1SU..SA60..MTM; 2TGEU,3T#,4TGTEU..TA6#..5F; 5MGEU..MA61..5F198107-198512
13405BBOLT, FLYWHEEL SETTING
*10-1.25PX26-18
13411CRANKSHAFT
13453GEAR, FLYWHEEL RING
N=106
main13453-20010i18RGEU..RA63; 1G#..GA61..5F; 1SU..SA60..MTM; 2TGEU,3T#,4TGTEU..TA6#..5F; 5MGEU..MA61..5F198107-198512
13471PULLEY, CRANKSHAFT
W/PS
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
*12-1.25PX24-18
*16-1.5PX26-21
*18-1.5PX40-20
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
N=20
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13521PPULLEY, CRANKSHAFT TIMING
13566AGUIDE, TIMING BELT
19 parts on this diagram · 10 diagrams in section
