ENGINE OVERHAUL GASKET KIT

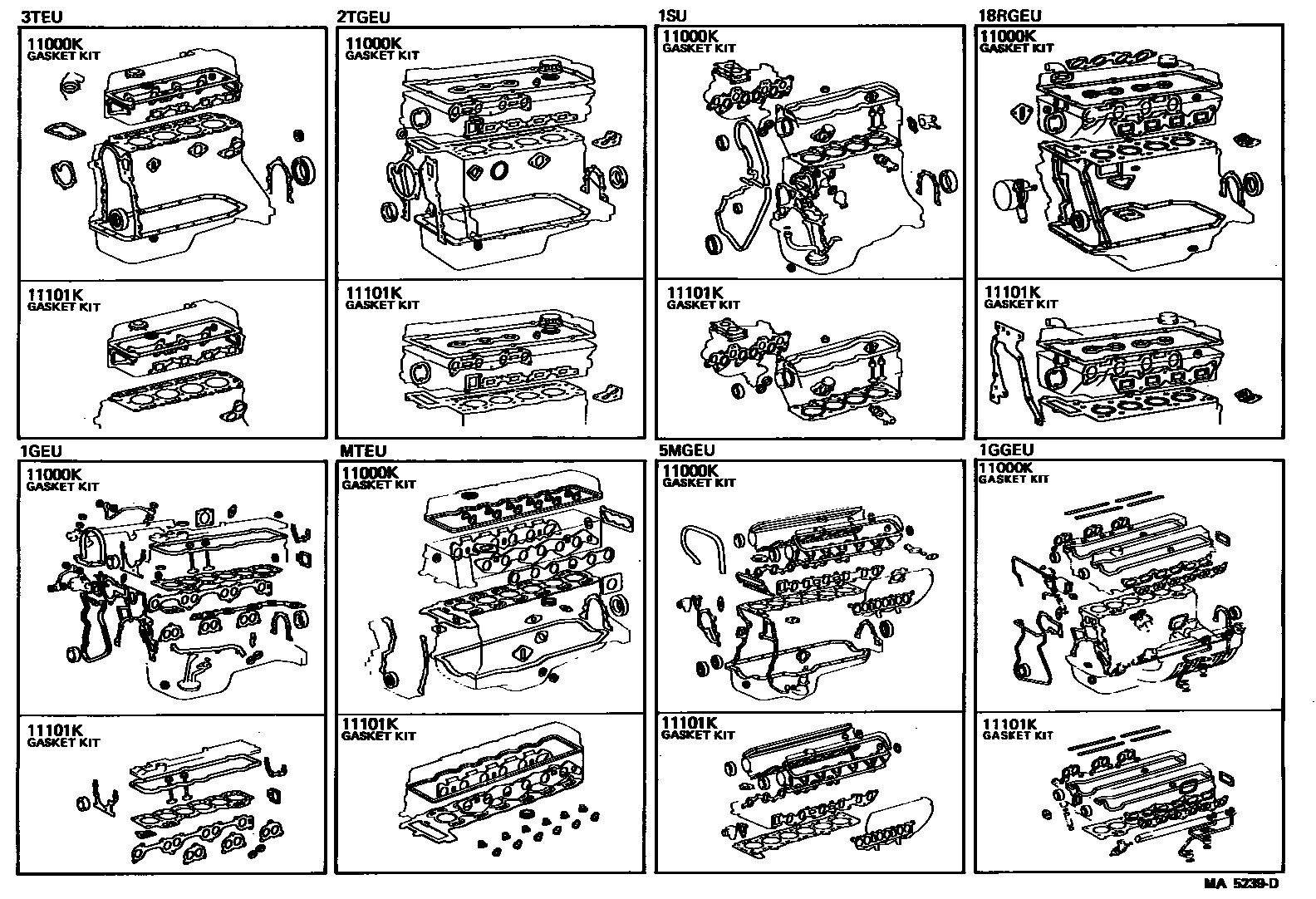

Parts diagram

11000KGASKET KIT, ENGINE OVERHAUL

main04111-16020i198308-198403

main04111-16021i198403-198405

main04111-16022i198405-198507

main04111-27034i198107-198308

main04111-28016i198107-198201

main04111-28017i198201-198308

main04111-28030i198210-198507

main04111-34075i198107-198208

main04111-41090i198202-198512

main04111-43030i198107-198308

main04111-43040i198308-198512

main04111-63010i198107-198408

main04111-63011i198408-198507

main04111-70011i198107-198208

main04111-70012i198208-198408

main04111-70013i198408-198512

main04111-70020i198208-198408

main04111-70021i198408-198512

11101KGASKET KIT, ENGINE VALVE GRIND

main04112-16020i198308-198403

main04112-16021i198403-198405

main04112-16022i198405-198507

main04112-27033i198107-198308

main04112-28015i198107-198201

main04112-28016i198201-198308

main04112-28030i198210-198507

main04112-34037i198107-198208

main04112-41090i198202-198308

main04112-41100i198308-198512

main04112-43030i198107-198308

main04112-43041i198308-198512

main04112-63010i198107-198408

main04112-63011i198408-198507

main04112-70010i198107-198408

main04112-70011i198408-198512

main04112-70020i198208-198512

2 parts on this diagram · 2 diagrams in section
