SHORT BLOCK ASSEMBLY

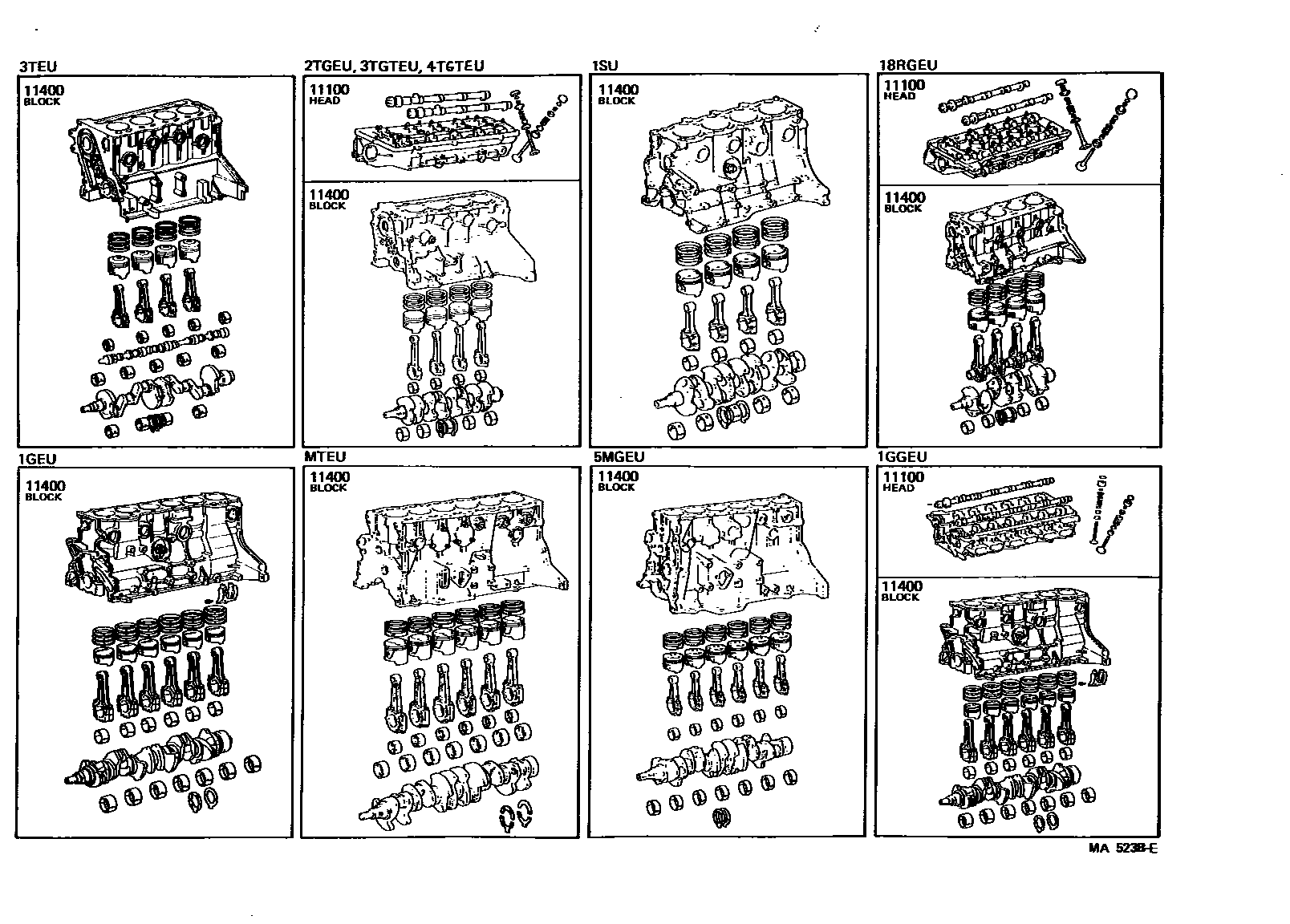

Parts diagram

11100HEAD ASSY, SHORT

main11100-27040i198107-198308

main11100-88270i198107-198208

main11100-88280i198208-198511

main11100-88290i198210-198507

11400BLOCK ASSY, SHORT

main11400-16040i198308-198507

main11400-27090i198107-198207

main11400-27091i198207-198308

main11400-28021i198107-198207

main11400-28022i198207-198308

main11400-41060i198202-198302

main11400-41061i198302-198308

main11400-41090i198308-198407

main11400-41091i198407-198408

main11400-41110i198408-198512

main11400-43040i198107-198205

main11400-43041i198205-198308

main11400-43080i198308-198407

main11400-43081i198407-198408

main11400-43100i198408-198512

main11400-63010i198107-198507

main11400-70011i198107-198512

main11400-88280i198107-198208

main11400-88300i198208-198512

main11400-88310i198210-198507

main11400-88320i198210-198308

2 parts on this diagram · 2 diagrams in section
