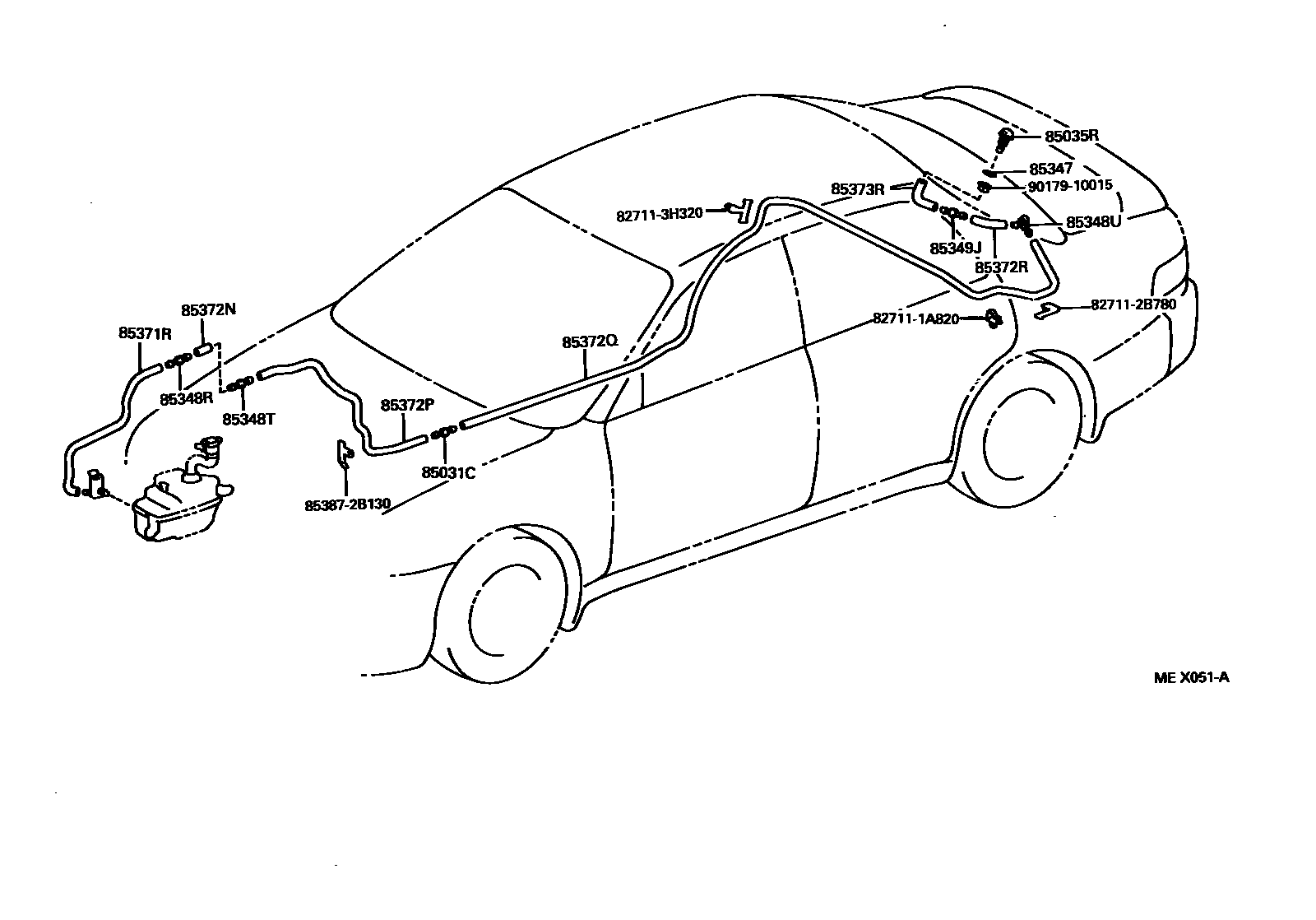

REAR WASHER

85031CVALVE SUB-ASSY, WASHER

main85031-90A00iST20#199309

sub85375-12520

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-20040iST20#199309-199612

sub85391-22010

main85391-22010iST20#199612

sub85391-22060

85347PACKING, REAR WASHER

main85347-12010iST20#199309

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iST20#199309

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iST20#199309

85348UJOINT, REAR WASHER HOSE, NO.3

main85376-10250iST20#199309

85349JJOINT, REAR WASHER HOSE, NO.4

main85349-89122iST20#199309

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-07001iST20#199309

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33299iST20#199309

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iST20#199309

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-59095iST20#199309

sub90099-59065

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33080iST20#199309

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iST20#199309

827111A820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A820

827112B780WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B780

827113H320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H320

853872B130CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-2B130

9017910015

main90179-10015

18 parts on this diagram · 1 diagram in section
