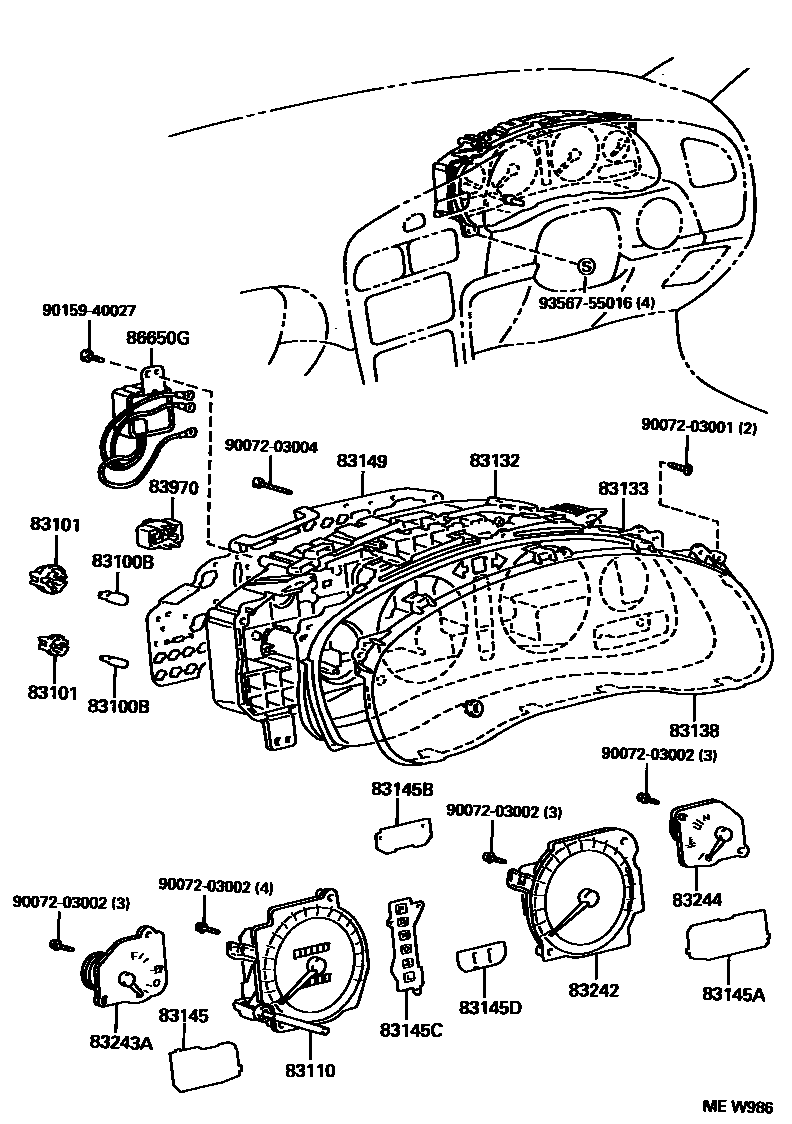

METER

0001 1 0002 1����� ���� 0003 1

83100BBULB, COMBINATION METER, NO.1

main84999-50010iST20#199309

main90072-02001×4iST20#199309

main90072-02004×27iST20#199309

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main84999-50110iST20#199309

main90072-01001×4iST20#199309

main90072-01003×27iST20#199309

83110SPEEDOMETER ASSY

main83110-2D480iST20#199309-199508

main83220-20050iST20#199508

main83220-20100iST200199606-199801

83132CASE, COMBINATION METER

main83132-2D020iST20#..MTM199309

main83132-2D040iST20#..ATM199309

83133PLATE, COMBINATION METER, NO.1

main83133-2D020iST20#..MTM199309

main83133-2D040iST20#..ATM199309

83138GLASS, SPEEDOMETER

main83138-2D020iST20#199309-199508

main83852-20100iST20#199508

83145LENS, METER, NO.1

main83145-2D440iST200,202,205199309

main83145-2D460iST200..V;ST202..E;ST201,203199309-199606

83145ALENS, METER, NO.2

main83145-2D480iST200..F199309-199508

main83145-2D500iST203..G;ST203..SLIM;ST205..MTM..LIM4;ST200,201,202..GLIM,SLIM,V,X199309-199606

main83145-2D520iST202,203..ATM..(SLIM,X)199309-199508

main83145-2D540iST205..ATM199405-199508

main83833-20050iST200,202;ST205..MTM199712

main83833-20052iST200199802-199804

main83833-20070iST205..MTM;ST200,202,203199508-199712

main83833-20100iST202,203..ATM..E199508-199606

main83833-20120iST205..ATM199508-199712

main83833-20121iST205..ATM199712

83145BLENS, METER, NO.3

main83145-2D560iST20#199309

83145CLENS, METER, NO.4

main83145-2D580iST20#..ATM199309

83145DLENS, METER, NO.5

main83145-2D600iST20#..ATM199309

83149PLATE, METER CIRCUIT

main83149-2D020iST200..MTM..F199309-199508

main83149-2D040iST200,202,205..MTM..(GLIM,LIM4,SLIM,V,X)199309-199606

main83149-2D060iST201,203..MTM199309-199508

main83149-2D080iST200..ATM..F199309-199508

main83149-2D100iST200,202..ATM..(GLIM,SLIM,V,X)199309-199606

main83149-2D120iST201,203..ATM199309-199508

main83149-2D140iST202..ATM..(SLIM,X)199309-199508

main83149-2D160iST203..ATM199309-199508

main83149-2D180iST205..ATM199405-199508

main83861-20050iST20#..MTM199712

main83861-20052iST200..MTM199802-199804

main83861-20060iST200,202,203..MTM..(V,X)199508-199606

main83861-20070iST200,202,205..MTM199606-199712

main83861-20080iST200,202..ATM199712

main83861-20082iST200..ATM199802-199804

main83861-20090iST203..ATM199606-199712

main83861-20100iST202,203..ATM..E199508-199606

main83861-20110iST200,202..ATM199606-199712

main83861-20120iST205..ATM199508-199712

main83861-20121iST205..ATM199712

83242TACHOMETER ASSY, ENGINE

main83242-2D020iST200,201,202,203..MTM..(F,SLIM,V,X)199309-199606

main83242-2D040iST202,205..MTM..(GLIM,GT,GT4WD,LIM4)199309

main83242-2D060iST200,201,202,203..ATM..(F,SLIM,X)199309-199508

main83242-2D080iST202,203..ATM..(SLIM,X)199309-199606

main83242-2D100iST202,205..ATM..(GLIM,GT,GT4WD,LIM4)199309

main83881-20051iST200,202,203..MTM..(V,X)199606

main83881-20490iST200..MTM199802-199804

main83881-20500iST200..ATM199606-199801

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-2D020iST20#199309

main83882-20350iST200199606-199801

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-2D060iST20#199309

main83883-20350iST200199606-199801

83970BUZZER ASSY, REVERSE WARNING

main83970-12020iST20#..ATM199309

86650GBUZZER ASSY

main86650-12030iST20#199309

9007203001

main90072-03001

9007203002

main90072-03002

9007203004

main90072-03004

9015940027

main90159-40027

9356755016

main93567-55016

22 parts on this diagram · 3 diagrams in section
