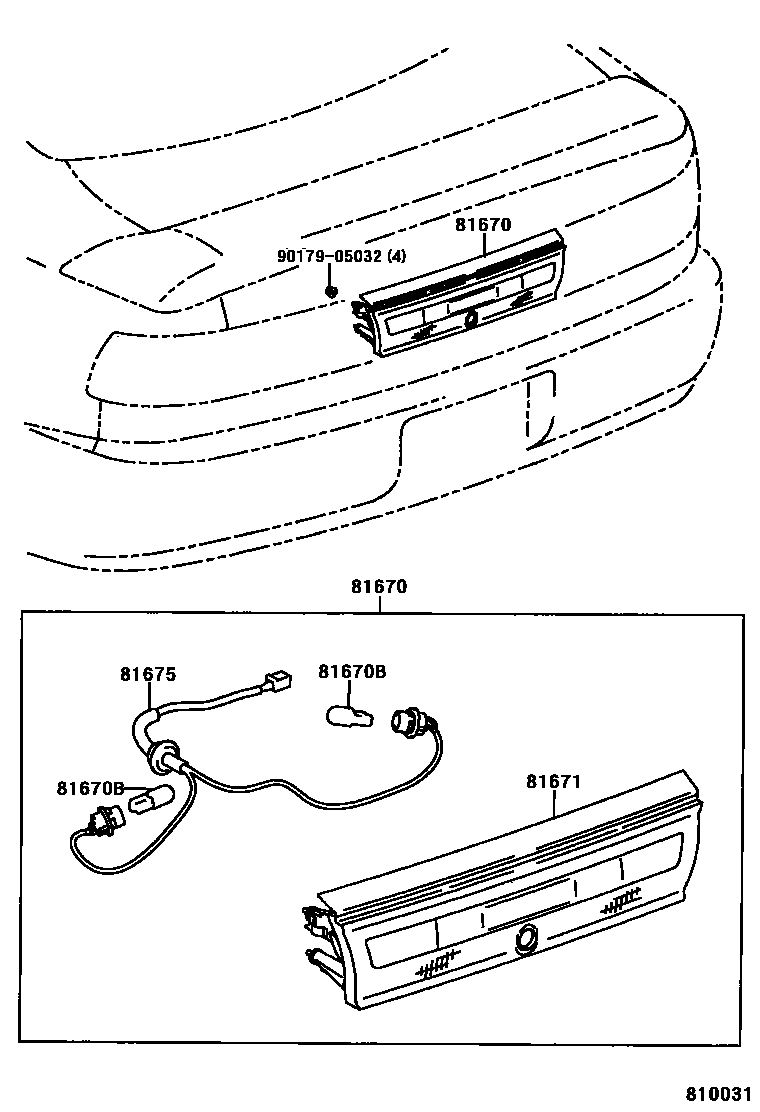

BACK UP LAMP

0001 1 0002 1

81670LAMP ASSY, BACK-UP, RH

main81670-20180iST20#199309-199508

81670BBULB(FOR BACK-UP LAMP)

main90981-13043iST20#199309-199508

81671LENS, BACK-UP LAMP, RH

main81671-20180iST20#199309-199508

81675SOCKET & WIRE, BACK-UP LAMP

main81675-20180iST20#199309-199508

9017905032

main90179-05032

5 parts on this diagram · 2 diagrams in section
