ARMREST & VISOR

67625BBRACKET, DOOR TRIM, NO.1 RH

main67625-20120iST20#199309

67626BBRACKET, DOOR TRIM, NO.2 RH

main67626-20080iST20#199309

67635BRACKET, DOOR TRIM, NO.1 LH

main67625-20120iST20#199309

67636BRACKET, DOOR TRIM, NO.2 LH

main67626-20080iST20#199309

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-20410-B0iST20#199309-199505

SHADOW GRAY,TRIM1#

main74231-20410-K0iST200,201,202,203..X199309-199505

TAUPE,TRIM9#

main74231-20411-B0iST20#199505-199804

SHADOW GRAY,TRIM1#

main74231-20411-K0iST200,202,203..X199505-199508

TAUPE,TRIM9#

74310VISOR ASSY, RH

main74310-2B520-B0iST20#199309-199405

SHADOW GRAY,TRIM1#

main74310-2B520-B1iST20#199405-199506

LT. GRAY,TRIM1#

main74310-2B520-K0iST20#..X199309-199405

TAUPE,TRIM9#

main74310-2B520-K1iST200,201,202,203..X199405-199506

LT. TAUPE,TRIM9#

main74310-2B521-B1iST20#199506-199508

LT. GRAY,TRIM1#

main74310-2B521-K1iST200,202,203..X199506-199508

LT. TAUPE,TRIM9#

main74310-2B670iST205199508-199606

main74310-2B670-B0iST200,202,203199508-199606

LT. GRAY,TRIM1#

main74310-2B671-B0iST20#199606-199708

LT. GRAY,TRIM1#

main74310-2B672-B0iST20#199708-199804

LT. GRAY,TRIM1#

74320VISOR ASSY, LH

main74320-2B360-B0iST20#199309-199405

SHADOW GRAY,TRIM1#

main74320-2B360-B1iST20#199405-199508

LT. GRAY,TRIM1#

main74320-2B360-B2iST20#199508-199606

LT. GRAY,TRIM1#

main74320-2B360-K0iST20#..X199309-199405

TAUPE,TRIM9#

main74320-2B360-K1iST200,201,202,203..X199405-199508

LT. TAUPE,TRIM9#

main74320-2B550iST205199508-199606

main74320-2B550-B0iST200,202,203199508-199606

main74320-2B551-B0iST20#199606-199708

LT. GRAY,TRIM1#

main74320-2B552-B0iST20#199708-199804

LT. GRAY,TRIM1#

74348HOLDER, VISOR

main74348-22020-B2iST20#199309-199508

LI. GRAY,TRIM1#

main74348-22020-B6iST20#199508-199804

LT.GRAY,TRIM1#

main74348-22020-K0iST200,201,202,203..X199309-199508

LI. TAUPE,TRIM9#

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-22050-B2iST20#199508-199804

LT.GRAY,TRIM1#

main74610-22050-K1iST200,201,202,203..X199309-199508

LIGHT TAUPE,TRIM9#

main74610-22050-S3iST20#199309-199508

LT. GRAY,TRIM1#

74612COVER, ASSIST GRIP

main74612-20050-B0iST20#199508-199804

LT.GRAY,TRIM1#

main74612-20050-K0iST200,201,202,203..X199309-199508

LI. TAUPE,TRIM9#

main74612-20050-S3iST20#199309-199508

LI. GRAY,TRIM1#

74815BHANDLE, REAR DOOR PULL

main74815-20030-B0iST20#199309-199804

SHADOW GRAY,TRIM1#

main74815-20030-K0iST200,201,202,203..X199309-199508

TAUPE,TRIM9#

9015960303

main90159-60303

9015960503

main90159-60503

9016440105

main90164-40105

9016840115

main90168-40115

9018906018

main90189-06018

9046805095

main90468-05095

9353045020

main93530-45020

9356754514

main93567-54514

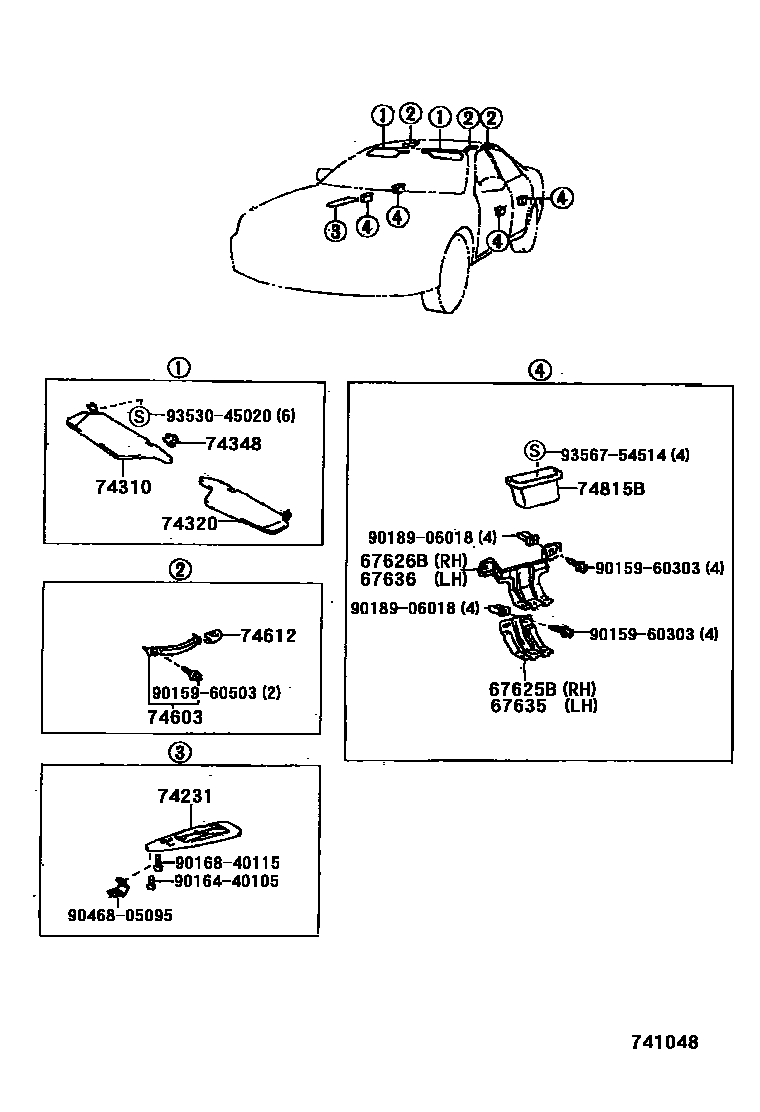

19 parts on this diagram · 1 diagram in section
