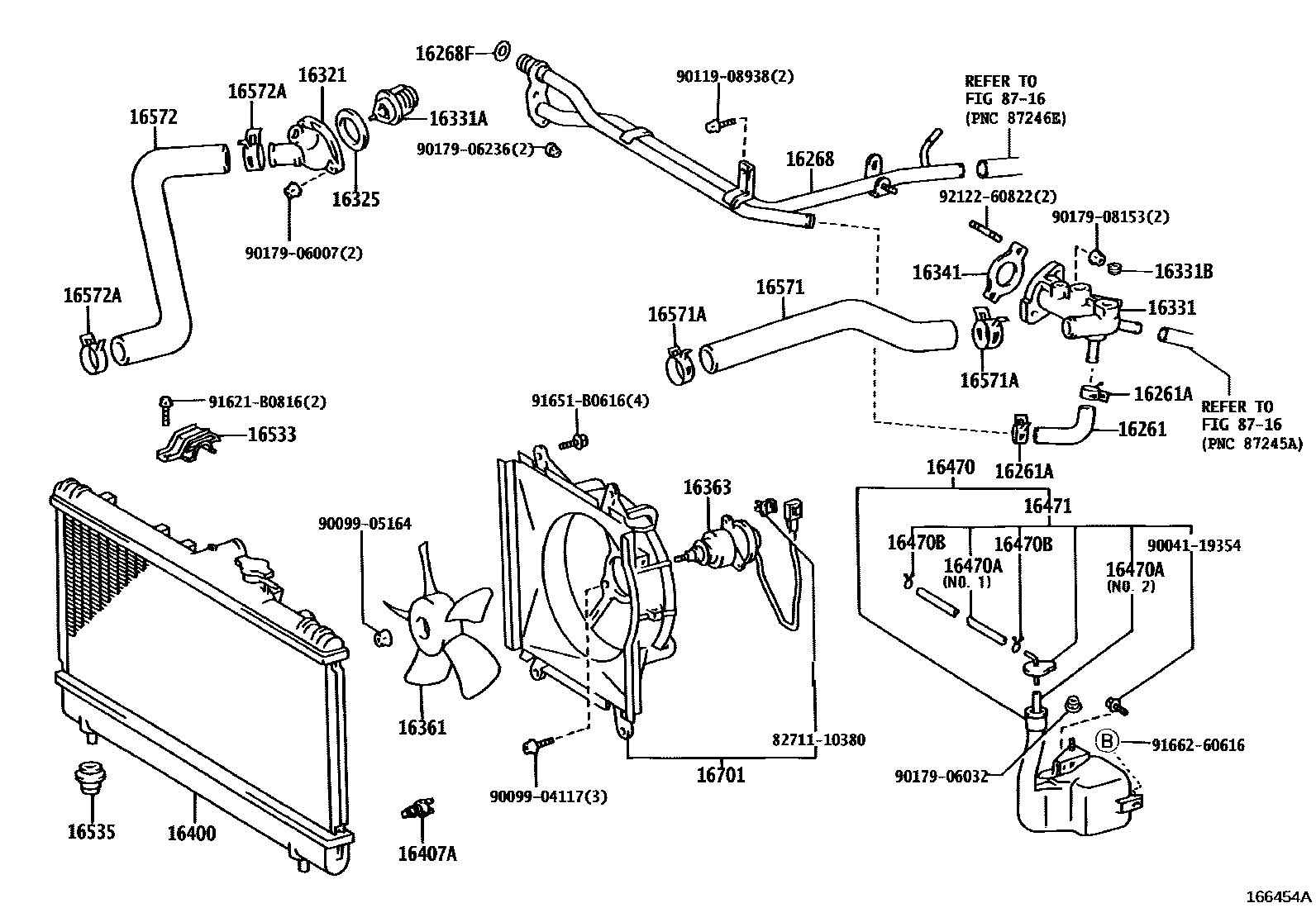

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16268FRING, O(FOR WATER BY-PASS PIPE)
16325GASKET, WATER INLET HOUSING, NO.1
16331ATHERMOSTAT
16331BPLUG(FOR WATER OUTLET)
16341GASKET, WATER OUTLET
16361FAN
16363MOTOR, COOLING FAN
16407ACOCK SUB-ASSY, RADIATOR DRAIN
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
main16571-74280i3SFE..ST202,203..G;3SFE..ST202,203..SLIM;3SGE,4SFE..ST200,201,202,205..F,GLIM,GT,GT4WD,LIM4,X199309
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
sub90467-34004
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
sub90467-34004
8716
8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10380
9004119354
main90041-19354
9009904117
main90099-04117
9009905164
main90099-05164
9011908938
main90119-08938
9017906007
main90179-06007
9017906032
main90179-06032
9017906236
main90179-06236
9017908153
main90179-08153
91621B0816
main91621-B0816
91651B0616
main91651-B0616
9166260616
main91662-60616
9212260822
main92122-60822
39 parts on this diagram · 4 diagrams in section
