ENGINE OVERHAUL GASKET KIT

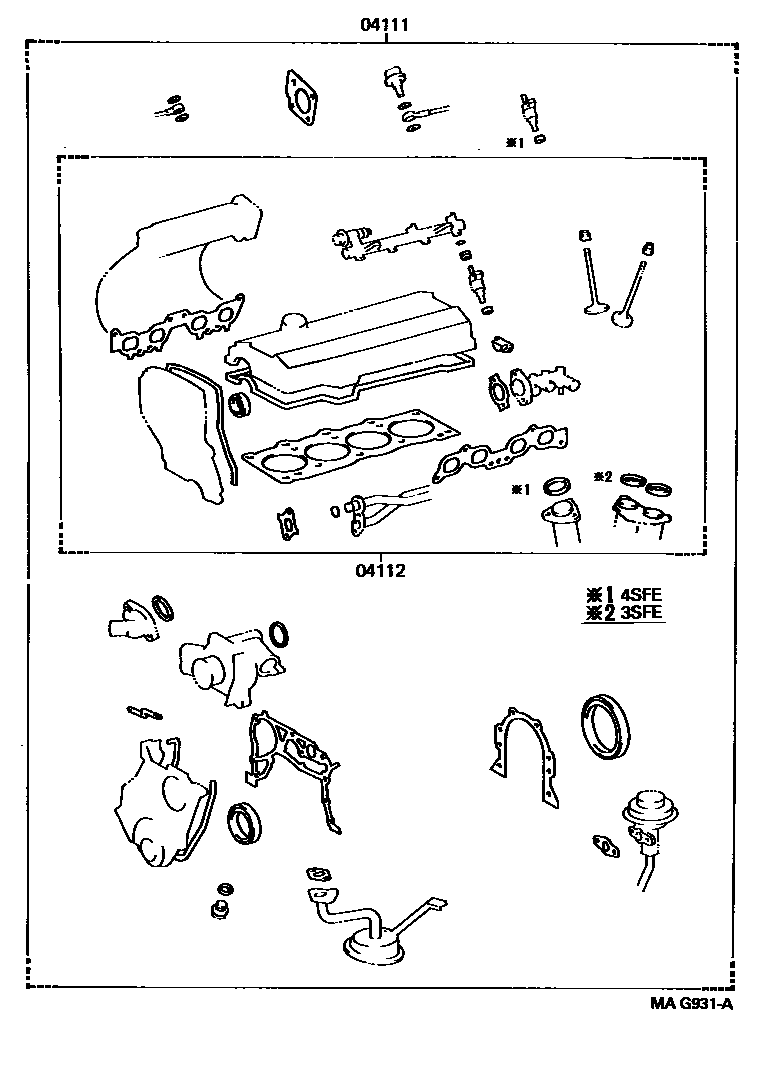

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-74480i199309-199508
main04111-74490i199309-199508
main04111-74520i199309-199702
sub04111-74521
main04111-74521i199702
main04111-74590i199508-199601
main04111-74591i199601-199612
sub04111-74592
main04111-74592i199612
main04111-74600i199508
04112GASKET KIT, ENGINE VALVE GRIND
main04112-74480i199309-199508
main04112-74490i199309-199508
main04112-74510i199309-199606
sub04112-74511
main04112-74512i199606-199702
sub04112-74513
main04112-74513i199702
main04112-74560i199508-199601
main04112-74561i199601-199612
sub04112-74562
main04112-74562i199612
main04112-74570i199508

2 parts on this diagram · 3 diagrams in section
