MIRROR

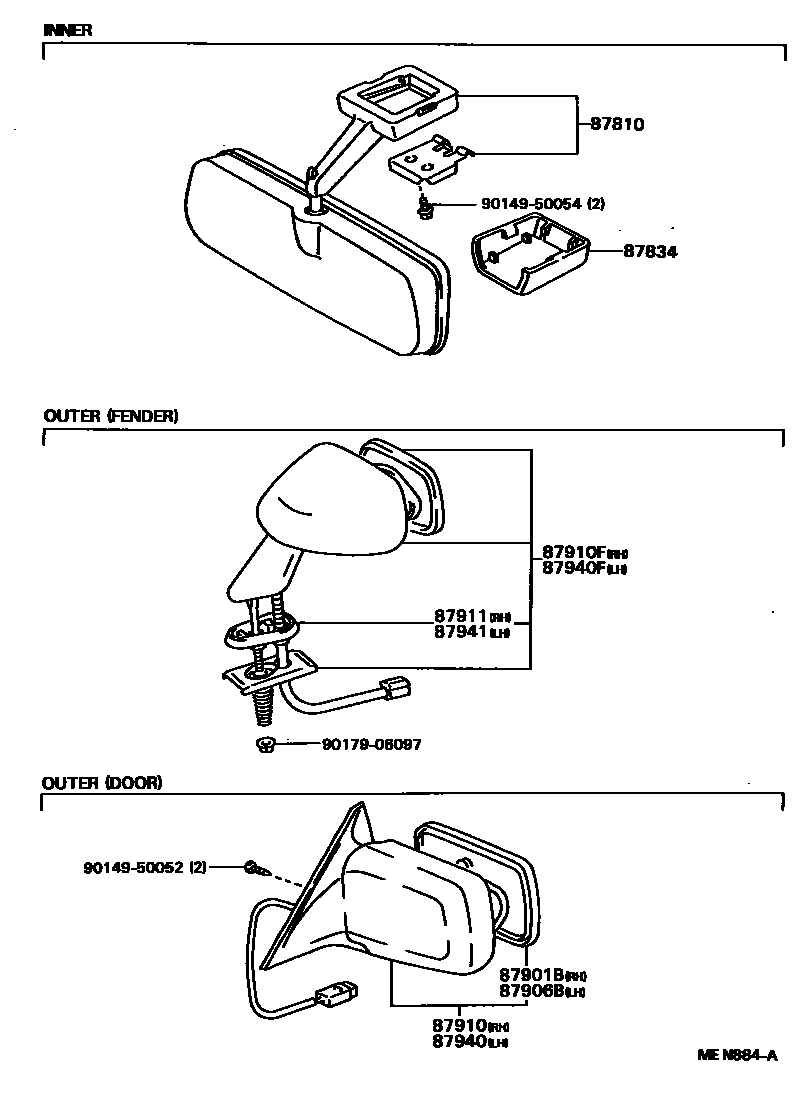

87810MIRROR ASSY, INNER REAR VIEW

main87810-20240-03iST18#198909-199309

SHADOW GRAY,TRIM1#

main87810-20240-07iST18#..GLIM,SLIM,X198909-199108

KHAKI,TRIM6#

main87810-20240-16iST18#198909-199309

SABLE,TRIM4#

main87810-20240-G0iST18#..GLIM,SLIM,X199108-199309

KHAKI,TRIM6#

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20110-03iST18#198909-199208

SHADOW GRAY,TRIM1#

main87834-20110-07iST18#..GLIM,SLIM,X198909-199108

KHAKI,TRIM6#

main87834-20110-16iST18#198909-199309

SABLE,TRIM4#

main87834-20110-G0iST18#..GLIM,SLIM,X199108-199309

KHAKI,TRIM6#

main87834-20110-S3iST18#199208-199309

LI.GRAY,TRIM1#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-22830iST18#198909-199002

main87931-22843iST18#..F,S,SLIM; ST18#..GLIM,X; ST18#..S,SLIM199002-199108

main87931-2B420iST18#..GLIM,S,SLIM,X199108-199309

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-22890iST18#198909-199002

main87961-2A012iST18#199008-199108

main87961-2B420iST18#..GLIM,S,SLIM,X199108-199309

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-2B230-02iST18#199008-199108

main87910-2B230-03iST18#..GLIM,S,SLIM,X199108-199309

main87910-2B230-04iST18#199008-199108

main87910-2B230-07iST18#199008-199108

main87910-2B230-08iST18#..GLIM,S,SLIM,X199108-199309

main87910-2B230-17iST18#199008-199108

main87910-2B230-38iST18#..GLIM,S,SLIM,X199108-199309

main87910-2B230-G0iST18#..GLIM,S,SLIM,X199108-199309

main87910-2B230-H0iST18#..GLIM,S,SLIM,X199108-199208

main87910-2B230-H1iST180,182..X199208-199309

main87910-2B440-03iST18#..F,S,SLIM198909-199002

BLUISH GRAY METWLLIC,182

main87910-2B440-07iST18#..F,S,SLIM198909-199002

LIGHT KHAKI G.M.M.,6K7

main87910-2B440-08iST18#..F,S,SLIM198909-199002

SUPER WHITE,040

main87910-2B440-12iST18#..F,S,SLIM198909-199002

RED MICA,3H4

main87910-2B440-17iST18#..F,S,SLIM198909-199002

BLACKISH KHAKI METAL,6K8

main87910-2B440-24iST18#..F,S,SLIM198909-199002

DARK BLUE MICA METAL,8G5

main87910-2B441-03iST18#..F,S,SLIM199002-199309

BLUISH GRAY METL,182

main87910-2B441-07iST18#..F,S,SLIM199002-199108

LIGHT KHAI G.M.M.,6K7

main87910-2B441-08iST18#..F,S,SLIM199002-199309

SUPER WHITE,040

main87910-2B441-12iST18#..F,S,SLIM199002-199108

RED MICA,3H4

main87910-2B441-17iST18#..F,S,SLIM199002-199309

BLACKISH KHAI M.,6K8

main87910-2B441-24iST18#..F,S,SLIM199002-199108

DARK BLUE MICA M.,8G5

main87910-2B441-38iST18#..F,S,SLIM199108-199309

WINE RED MICA,3J8

main87910-2B441-G0iST18#..F,S,SLIM199108-199309

DARK MOSS GREEN MICA,6M4

main87910-2B441-H0iST18#..F,S,SLIM199108-199208

MEDIUM TURQUOISE M.,749

main87910-2B450-03iST18#..GLIM,X; ST18#..S,SLIM198909-199002

main87910-2B450-07iST18#..GLIM,X; ST18#..S,SLIM198909-199002

main87910-2B450-08iST18#..GLIM,X; ST18#..S,SLIM198909-199002

main87910-2B450-12iST18#..GLIM,X; ST18#..S,SLIM198909-199002

main87910-2B450-17iST18#..GLIM,X; ST18#..S,SLIM198909-199002

main87910-2B450-24iST18#..GLIM,X; ST18#..S,SLIM198909-199002

main87910-2B451-03iST18#..S,SLIM199002-199108

main87910-2B451-07iST18#..GLIM,X; ST18#..S,SLIM199002-199108

main87910-2B451-08iST18#..S,SLIM199002-199108

main87910-2B451-12iST18#..GLIM,X; ST18#..S,SLIM199002-199108

main87910-2B451-17iST180..F199305-199309

main87910-2B451-24iST18#..GLIM,X; ST18#..S,SLIM199002-199108

main87910-2B451-38iST180..F199305-199309

main87910-2B451-G0iST18#..GLIM,X199108-199309

DARK MOSS GREEN MICA,6M4

main87910-2B451-H0iST18#..GLIM,X199108-199208

MEDIUM TURQUOISE M.,749

main87910-2B451-H1iST180..F199305-199309

87910FMIRROR ASSY, FENDER, RH

main87910-2B310iST18#198909-199309

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-20230iST18#198909-199309

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-2B440-03iST18#..F,S,SLIM198909-199002

BLUISH GRAY METALLIC,182

main87940-2B440-07iST18#..F,S,SLIM198909-199002

LIGHT KHAKI G.M.M.,6K7

main87940-2B440-08iST18#..F,S,SLIM198909-199002

SUPER WHITE,040

main87940-2B440-12iST18#..F,S,SLIM198909-199002

RED MICA,3H4

main87940-2B440-17iST18#..F,S,SLIM198909-199002

BLACKISH KHAKI METAL,6K8

main87940-2B440-24iST18#..F,S,SLIM198909-199002

DARK BLUE MICA METAL,8G5

main87940-2B441-03iST18#..F,S,SLIM199002-199309

BLUISH GRAY METL,182

main87940-2B441-07iST18#..F,S,SLIM199002-199108

LIGHT KHAKI G.M.M.,6K7

main87940-2B441-08iST18#..F,S,SLIM199002-199309

SUPER WHITE,040

main87940-2B441-12iST18#..F,S,SLIM199002-199108

RED MICA,3H4

main87940-2B441-17iST18#..F,S,SLIM199002-199309

BLACKISH KHAKI M,6K8

main87940-2B441-24iST18#..F,S,SLIM199002-199108

DARK BLUE MICA M.,8G5

main87940-2B441-38iST18#..F,S,SLIM199108-199309

WINE RED MICA,3J8

main87940-2B441-G0iST18#..F,S,SLIM199108-199309

DARK MOSS GREEN MICA,6M4

main87940-2B441-H0iST18#..F,S,SLIM199108-199208

MEDIUM TURQUOISE M,749

main87940-2B450-03iST18#..GLIM,X; ST18#..S,SLIM198909-199002

main87940-2B450-07iST18#..GLIM,X; ST18#..S,SLIM198909-199002

main87940-2B450-08iST18#..GLIM,X; ST18#..S,SLIM198909-199002

main87940-2B450-12iST18#..GLIM,X; ST18#..S,SLIM198909-199002

main87940-2B450-17iST18#..GLIM,X; ST18#..S,SLIM198909-199002

main87940-2B450-24iST18#..GLIM,X; ST18#..S,SLIM198909-199002

main87940-2B451-03iST18#..GLIM,X199002-199309

BLUISH GRAY METL,182

main87940-2B451-07iST18#..GLIM,X; ST18#..S,SLIM199002-199108

main87940-2B451-08iST180..F199305-199309

main87940-2B451-12iST18#..GLIM,X; ST18#..S,SLIM199002-199108

main87940-2B451-17iST180..F199305-199309

main87940-2B451-24iST18#..GLIM,X; ST18#..S,SLIM199002-199108

main87940-2B451-38iST180..F199305-199309

main87940-2B451-G0iST18#..GLIM,X199108-199309

DARK MOSS GREEN MICA,6M4

main87940-2B451-H0iST18#..GLIM,X199108-199208

MEDIUM TURQUOISE M.,749

main87940-2B451-H1iST180..F199305-199309

main87940-2B480-02iST18#199008-199108

main87940-2B480-03iST18#..GLIM,S,SLIM,X199108-199309

main87940-2B480-04iST18#199008-199108

main87940-2B480-07iST18#199008-199108

main87940-2B480-08iST18#199008-199108

main87940-2B480-17iST18#..GLIM,S,SLIM,X199108-199309

main87940-2B480-38iST18#..GLIM,S,SLIM,X199108-199309

main87940-2B480-G0iST18#..GLIM,S,SLIM,X199108-199309

main87940-2B480-H0iST18#..GLIM,S,SLIM,X199108-199208

main87940-2B480-H1iST180,182..X199208-199309

87940FMIRROR ASSY, FENDER, LH

main87940-2B310iST18#198909-199309

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-20250iST18#198909-199309

9014950052

main90149-50052

9014950054

main90149-50054

9017906097

main90179-06097

13 parts on this diagram · 1 diagram in section
