REAR WASHER
85031CVALVE SUB-ASSY, WASHER
85035RNOZZLE SUB-ASSY, REAR WASHER
sub85035-12370
85347PACKING, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
8271116270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16270
8536120720HOLDER, WINDSHIELD WASHER
main85361-20720
9017910015
main90179-10015
9033301001
main90333-01001

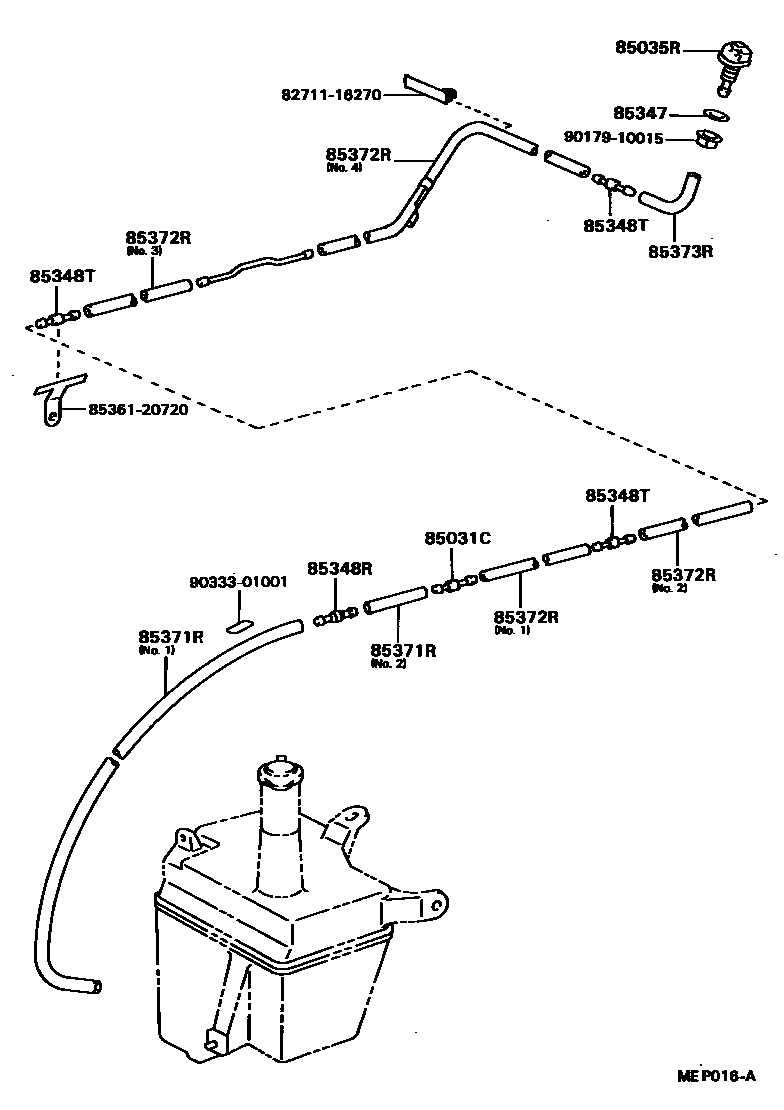

12 parts on this diagram · 1 diagram in section
