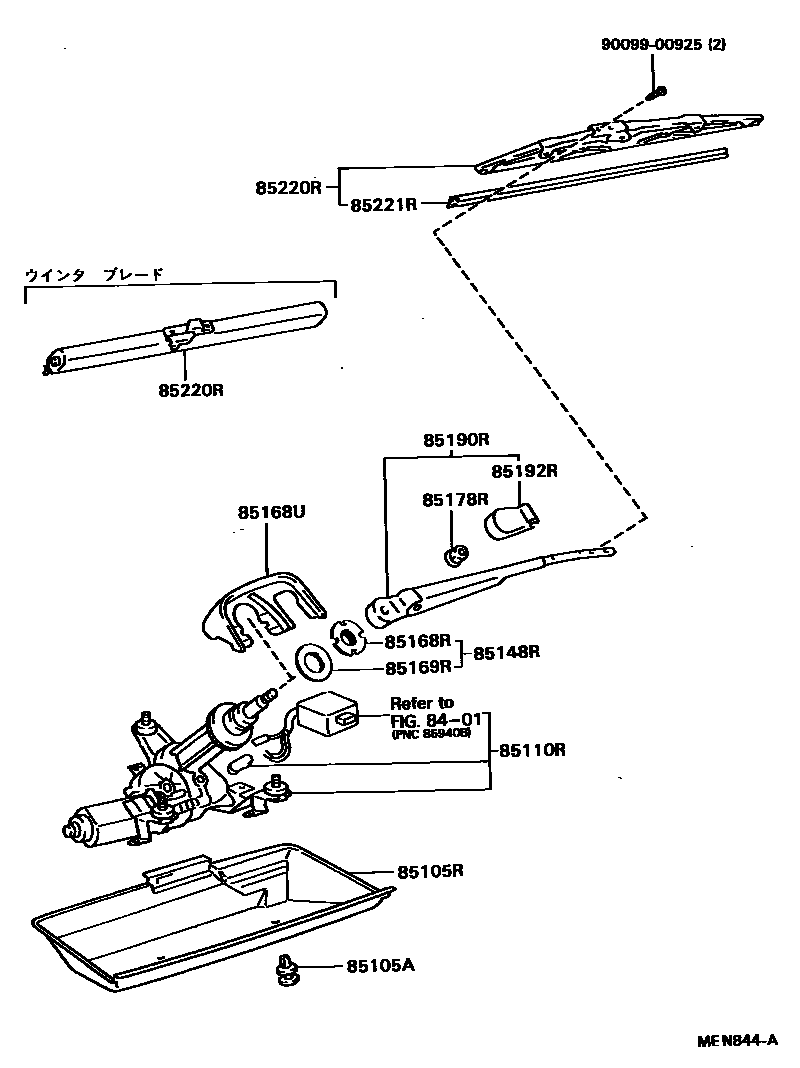

REAR WIPER

8401

85105ACLIP, REAR WIPER PROTECTOR

main90467-07059-03iST18#..GLIM,SLIM,X198909-199108

GRAY,TRIM1#,4#,6#

sub90467-07059

main90467-07059-22iST18#..GLIM,SLIM,X199108-199309

BLACK,TRIM1#,4#,6#

sub90467-07059

85105RPROTECTOR, REAR WIPER

main85105-20010-03iST18#..GLIM,SLIM,X198909-199108

GRAY,TRIM1#,4#,6#

main85105-20010-C0iST18#..GLIM,SLIM,X199108-199309

BLACK,TRIM1#,4#,6#

85110RMOTOR ASSY, REAR WIPER

main85110-20680iST18#..GLIM,SLIM,X198909-199309

85148RNUT, W/WASHER PACKING, REAR WIPER LINK PIVOT

main85148-12020iST18#..GLIM,SLIM,X198909-199309

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90179-22013iST18#..GLIM,SLIM,X198909-199309

85168UCOVER, REAR WIPER

main85168-20680-03iST18#..GLIM,SLIM,X198909-199309

SHADOW GRAY,TRIM1#

sub85168-20680

main85168-20680-06iST18#..GLIM,SLIM,X198909-199309

SABLE,TRIM4#

sub85168-20680

main85168-20680-07iST18#..GLIM,SLIM,X198909-199309

KHAKI,TRIM6#

sub85168-20680

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main90210-28002iST18#..GLIM,SLIM,X198909-199309

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iST18#..GLIM,SLIM,X198909-199309

85190RARM ASSY, REAR WIPER

main85190-20780iST18#..GLIM,SLIM,X198909-199309

85192RCOVER, REAR WIPER ARM

main85192-13060iST18#..GLIM,SLIM,X198909-199309

85220RBLADE ASSY, REAR WIPER

main85220-12700iST18#..GLIM,SLIM,X198909-199309

main85291-20020iST18#..GLIM,SLIM,X198909-199309

85221RBLADE, REAR WIPER

main85221-91C01iST18#..GLIM,SLIM,X198909-199309

sub85214-12H90

9009900925

main90099-00925

14 parts on this diagram · 1 diagram in section
