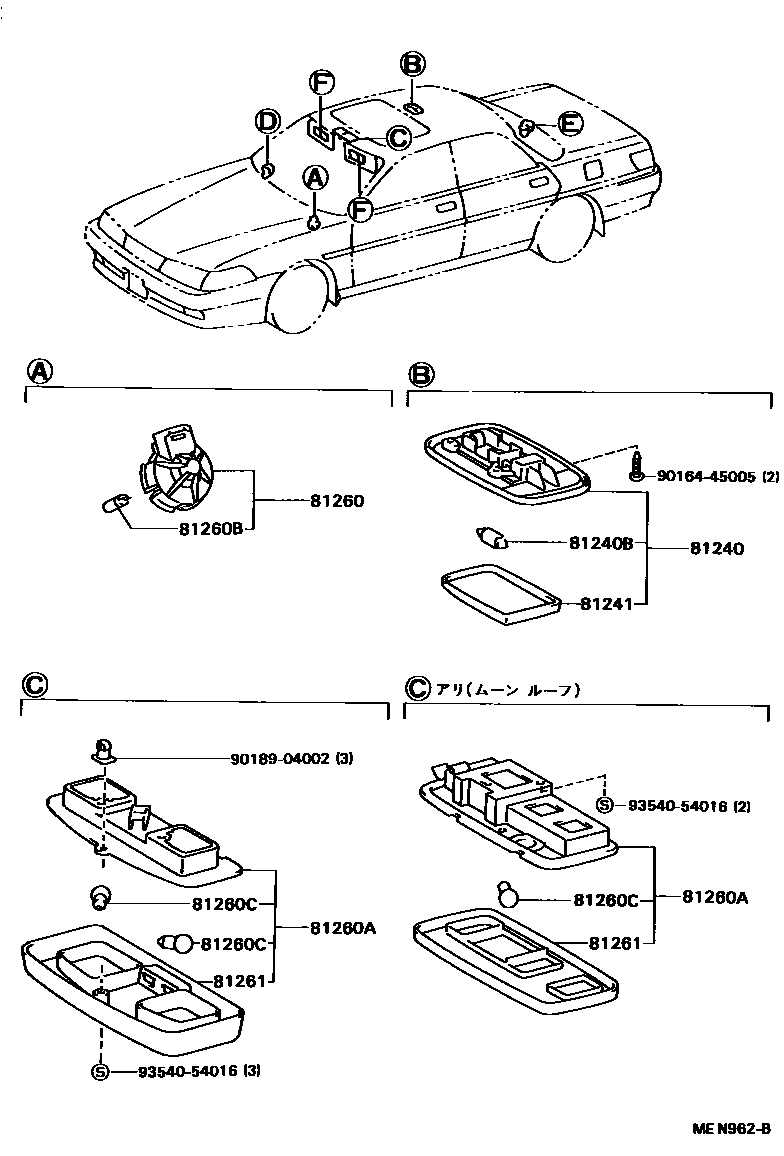

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-20110-03iST18#198909-199309

SHADOW GRAY,TRIM1#

main81240-20110-06iST18#198909-199309

SABLE,TRIM4#

main81240-20110-07iST18#..GLIM,SLIM,X198909-199309

KHAKI,TRIM6#

81240BBULB, ROOM LAMP, NO.1

main99132-12100iST18#198909-199309

81241LENS, ROOM LAMP, NO.1

main81241-12020iST18#198909-199309

81260LAMP ASSY, GLOVE BOX

main81260-32071iST18#198909-199309

81260ALAMP ASSY, MAP

main81260-20130-03iST18#198909-199309

GRAY,TRIM1#

main81260-20130-07iST18#..GLIM,SLIM,X198909-199108

KHAKI,TRIM6#

main81260-20130-16iST18#198909-199309

SABLE,TRIM4#

main81260-20130-G0iST18#..GLIM,SLIM,X199108-199309

KHAKI,TRIM6#

main81260-20160-03iST18#198909-199106

main81260-20160-07iST18#..GLIM,SLIM,X198909-199309

main81260-20160-16iST18#..GLIM,SLIM,X199108-199309

main81260-20160-S3iST18#..GLIM,SLIM,X199108-199309

81260BBULB(FOR GLOVE BOX)

main90981-11018iST18#198909-199309

81260CBULB(FOR MAP LAMP)

main90981-12005×2iST18#198909-199309

main90981-12014iST18#198909-199108

81261LENS AND COVER, MAP LAMP

main81261-20130-03iST18#198909-199309

GRAY,TRIM1#

main81261-20130-07iST18#..GLIM,SLIM,X198909-199108

KAHKI,TRIM6#

main81261-20130-16iST18#198909-199309

SABLE,TRIM4#

main81261-20130-G0iST18#..GLIM,SLIM,X199108-199309

KAHKI,TRIM6#

main81261-20160-03iST18#198909-199108

main81261-20160-07iST18#..GLIM,SLIM,X198909-199309

main81261-20160-16iST18#198909-199108

9016445005

main90164-45005

9018904002

main90189-04002

9354054016

main93540-54016

11 parts on this diagram · 2 diagrams in section
