REAR COMBINATION LAMP
81497COVER, REAR COMBINATION LAMP, RH
81498COVER, REAR COMBINATION LAMP, LH
81550LAMP ASSY, REAR COMBINATION, RH
DARK RED,3H4
DARK GRAY,182 ,8G5
LIGHT BEIGE,040
LIGHT GREEN,6K7
DARK KHAI,6K8
BLUISH GRAY M.,182
WINE RED MICA,3J8
SILVER M.,040
BLAKISH KHAKI M.,6K8
DARK MOSS GREEN MICA,6M4
MEDIUM TURQUOISE M.,749
DARK TURQUOISE MICA,742
81550BBULB(FOR REAR COMBINATION LAMP)
81551LENS, REAR COMBINATION LAMP, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81556RIM, REAR COMBINATION LAMP, RH
DARK RED0,3H4
DARK GRAY,182 ,8G5
LIGHT BEIGE,040
LIGHT GREEN,6K7
DARK KHAKI,6K8
SILVER M.,040
BLUISH GRAY M.,182
WINE RED MICA,3J8
BLAKISH KHAKI M.,6K8
DARK MOSS GREEN M.M.,6M4
MEDIUM TURQUOISE M.,749
DARK TURQUOISE MICA,742
81560LAMP ASSY, REAR COMBINATION, LH
DARK RED,3H4
DARK GRAY,182 ,8G5
LIGHT BEIGE,040
LIGHT GREEN,6K7
DARK KHAI,6K8
BLUISH,182
WINE RED MICA,3J8
SILVER M.,040
BLAKISH KHAKI M.,6K8
DARK MOSS GREEN MICA,6M4
MEDIUM TURQUOISE M.,749
DARK TURQUOISE MICA,742
81561LENS, REAR COMBINATION LAMP, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81566RIM, REAR COMBINATION LAMP, LH
DARK RED,3H4
DARK GRAY,182 ,8G5
LIGHT BEIGE,040
LIGHT GREEN,6K7
DARK KHAKI,6K8
SILVER M.,040
BLUISH GRAY M.,182
WINE RED MICA,3J8
BLAKISH KHAKI M.,6K8
DARK MOSS GREEN M.M.,6M4
MEDIUM TURQUOISE M.,749
DARK TURQUOISE MICA,742
815592B110MOULDING, REAR COMBINATION LAMP, RH
main81559-2B110
815692B110MOULDING, REAR COMBINATION LAMP, LH
main81569-2B110
8161920070
main81619-20070
9016750037
main90167-50037
9018905069
main90189-05069
9018905093
main90189-05093
9046717014
main90467-17014
9354065014
main93540-65014

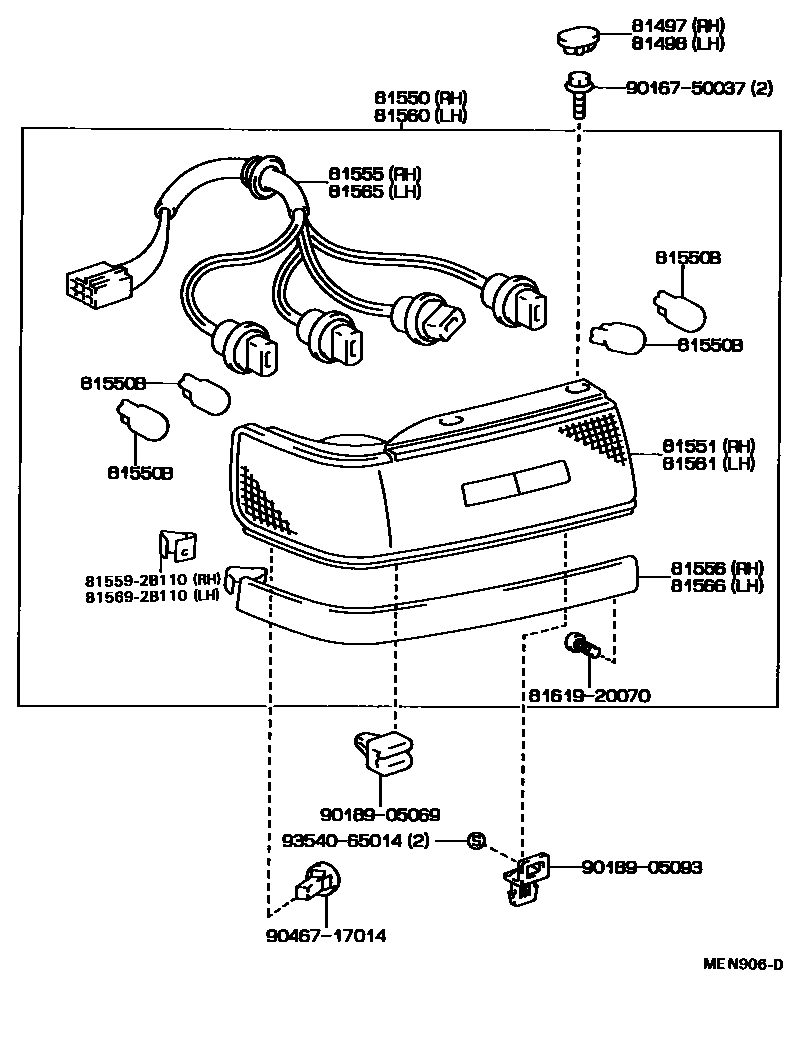

19 parts on this diagram · 2 diagrams in section
