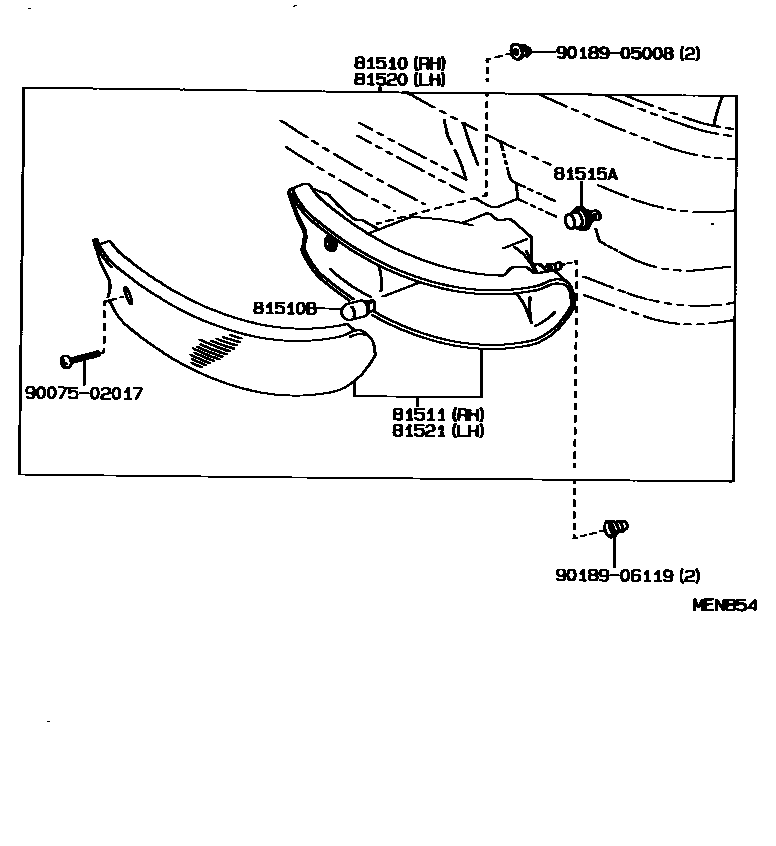

FRONT TURN SIGNAL LAMP

0001 1 0002 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-20580iST18#198909-199108

main81510-20630iST18#199108-199309

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13043iST18#198909-199309

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-20580iST18#198909-199108

main81511-20630iST18#199108-199309

81515APLUG ASSY, FRONT TURN SIGNAL LAMP

main90075-99022iST18#198909-199108

main90075-99032iST18#199108-199309

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-20580iST18#198909-199108

main81520-20620iST18#199108-199309

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-20580iST18#198909-199108

main81521-20620iST18#199108-199309

9007502017

main90075-02017

9018905008

main90189-05008

9018906119

main90189-06119

9 parts on this diagram · 2 diagrams in section
