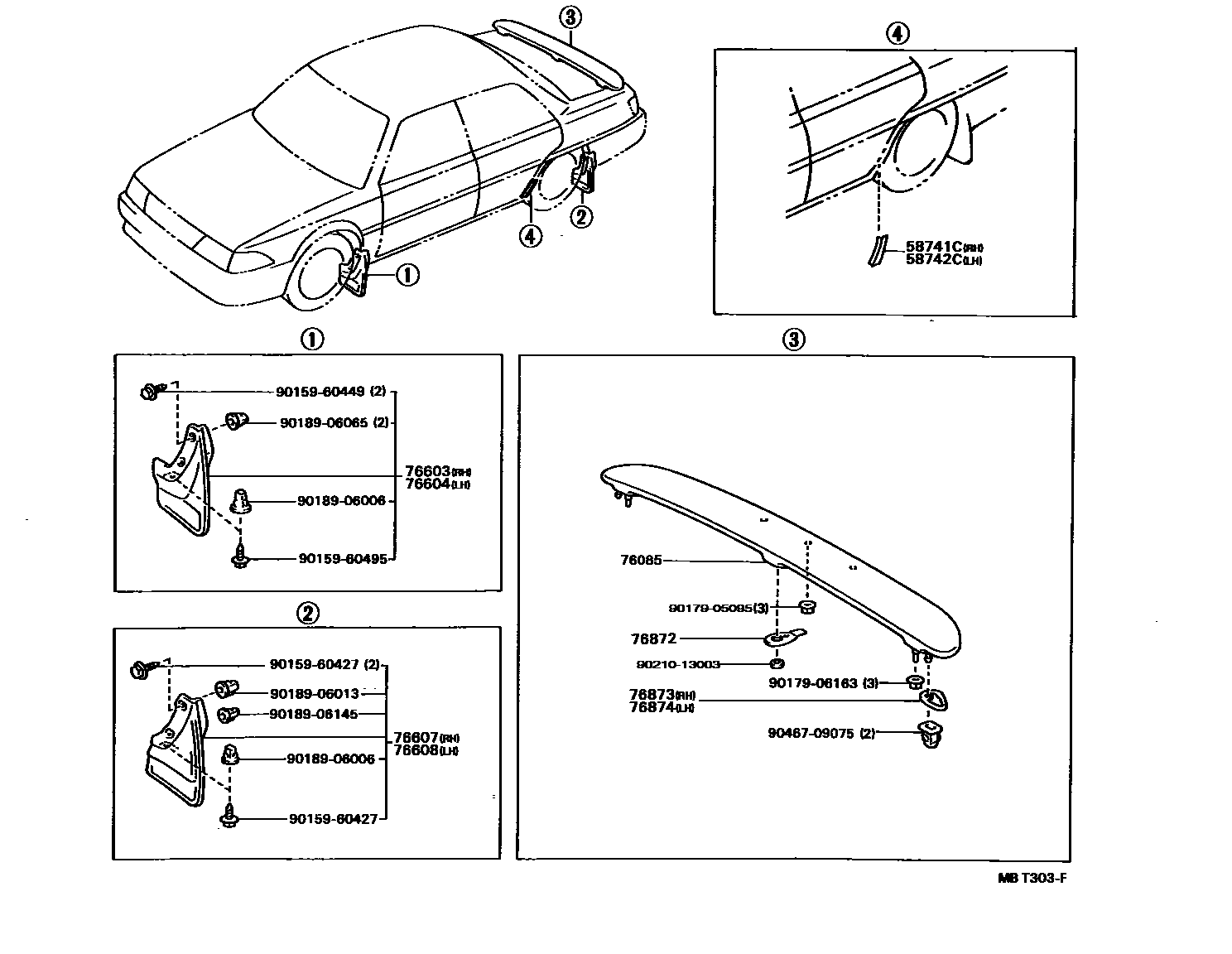

MUDGUARD & SPOILER
58741CPROTECTOR, QUARTER PANEL, RH
58742CPROTECTOR, QUARTER PANEL, LH
76085SPOILER SUB-ASSY, REAR
RED MICA,3H4
BLUISH GRAY M,182
DARK BLUE M M,8G5
LIGHT KHAKI G M M,6K7
SUPER WHITE 2,040
BLACKISH KHAKI M,6K8
WINE RED M,3J8
DARK MOSS GREEN M.M,6M4
MEDIUM TURQUOISE M,749
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
RED MICA,3H4
BLUEISH GRAY M,182
DARK BLUE M M,8G5
LIGHT KHAKI G M M,6K7
SUPER WHITE 2,040
BLACKISH KHAKI M,6K8
WINE RED MICA,3J8
DARK MOSS GREEN M.M,6M4
MEDIUM TURQUOISE M,749
DARK TURQUOISE MC,742
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
RED MICA,3H4
BLUEISH GRAY M,182
DARK BLUE M M,8G5
LIGHT KHAKI G M M,6K7
SUPER WHITE 2,040
BLACKISH KHAKI M,6K8
WINE RED MICA,3J8
DARK MOSSGREEN M.M,6M4
MEDIUM TURQUOISE M,749
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
RED MICA,3H4
BLUEISH GRAY M,182
DARK BLUE M M,8G5
LIGHT KHAKI G M M,6K7
SUPER WHITE 2,040
BLACKISH KHAKI M,6K8
WINE RED MICA,3J8
DARK MOSS GREEN M.M,6M4
MEDIUM TURQUOISE M,749
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
RED MICA,3H4
BLUEISH GRAY M,182
DARK BLUE M M,8G5
LIGHT KHAKI G M M,6K7
SUPER WHITE 2,040
BLACKISH KHAKI M,6K8
WINE RED MICA,3J8
DARK MOSS GREEN M.M,6M4
MEDIUM TURUQUOISE M,749
76872PROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
76874PROTECTOR, REAR SPOILER, NO.3
9015960427
main90159-60427
9015960449
main90159-60449
9015960495
main90159-60495
9017905095
main90179-05095
9017906163
main90179-06163
9018906006
main90189-06006
9018906013
main90189-06013
9018906065
main90189-06065
9018906145
main90189-06145
9021013003
main90210-13003
9046709075
main90467-09075
21 parts on this diagram · 1 diagram in section
