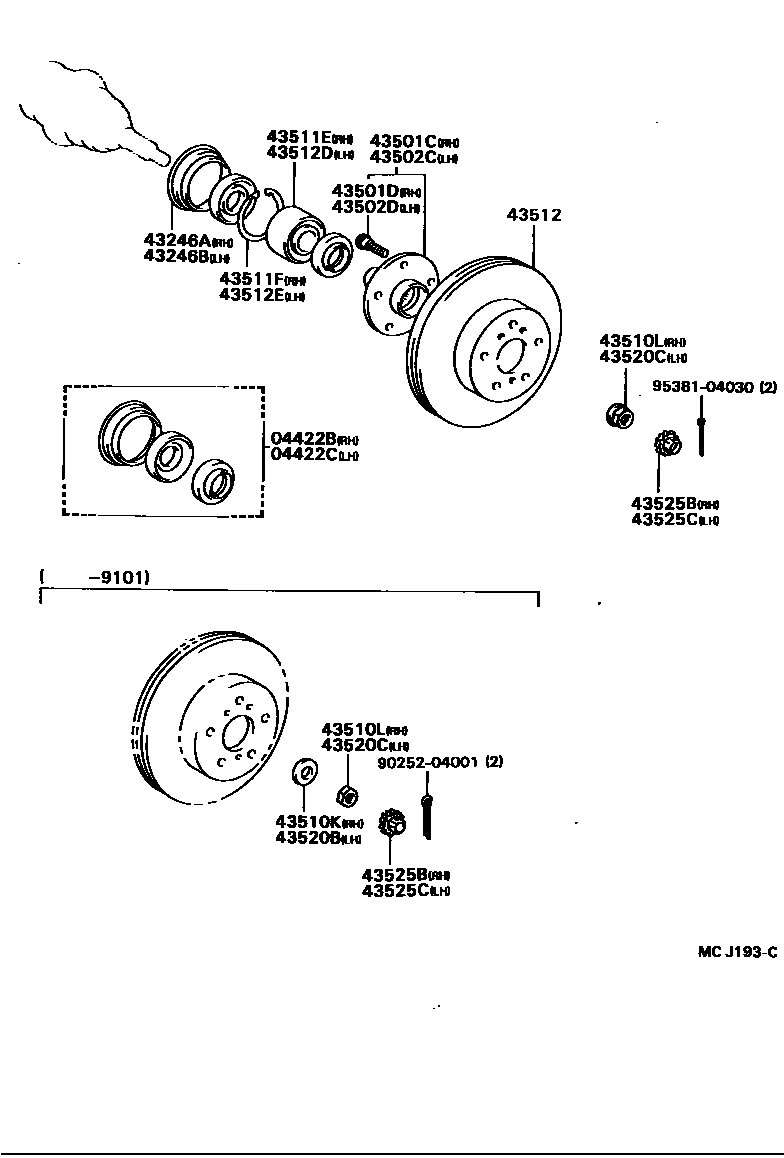

FRONT AXLE HUB
04422BSEAL KIT, FRONT AXLE OIL, RH
sub04422-20110
04422CSEAL KIT,FRONT AXLE OIL, LH
sub04422-20110
43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH
43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH
43501CHUB SUB-ASSY, FRONT AXLE, RH
43501DBOLT, HUB (FOR FRONT AXLE RH)
43502CHUB SUB-ASSY, FRONT AXLE, LH
43502DBOLT, HUB (FOR FRONT AXLE LH)
43510KWASHER (FOR STEERING KNUCKLE RH)
43510LNUT (FOR STEERING KNUCKLE RH)
43511EBEARING (FOR FRONT AXLE HUB RH)
43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)
43512DBEARING (FOR FRONT AXLE HUB LH)
43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)
43520BWASHER (FOR STEERING KNUCKLE LH)
43520CNUT (FOR STEERING KNUCKLE LH)
43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH
43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH
9025204001
main90252-04001
9538104030
main95381-04030
21 parts on this diagram · 1 diagram in section
