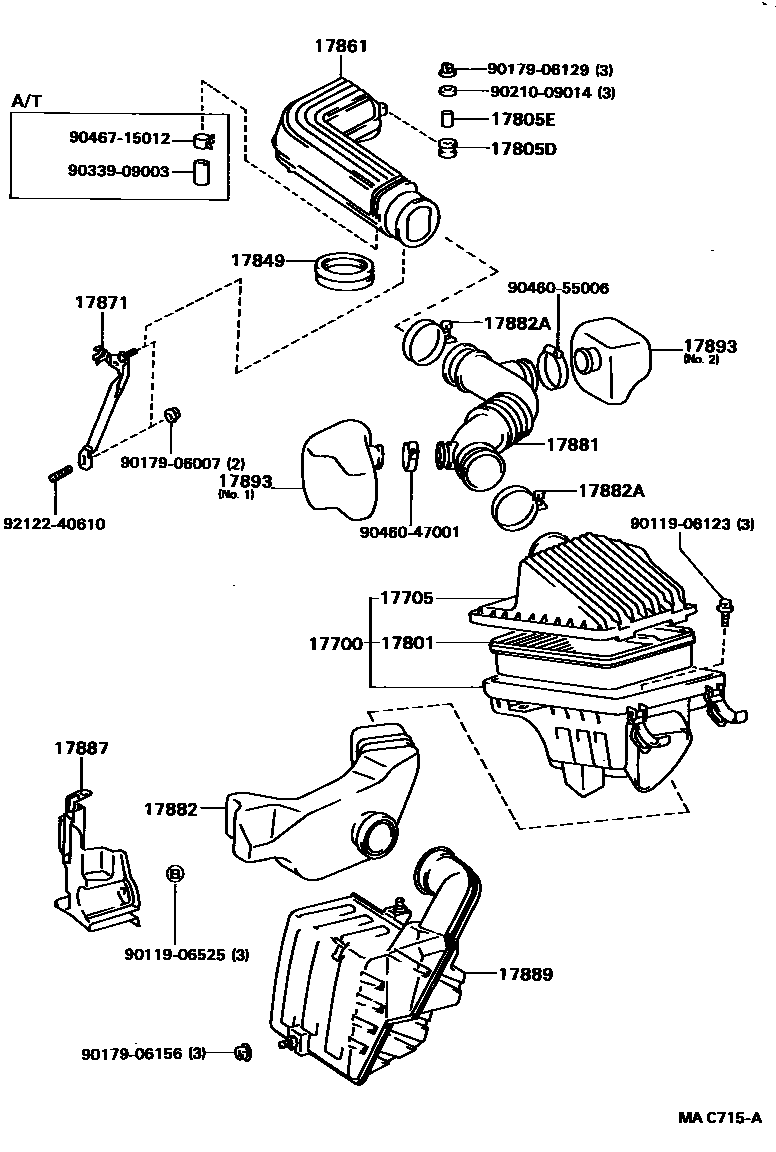

AIR CLEANER

0001 1 0002 1 0003 1

17700CLEANER ASSY, AIR

main17700-74230i3SGE..ST182,183198909-199309

main17700-74240i4SFI..ST180,181198909-199008

main17700-74250i3SFE..ST182,183198909-199008

main17700-74360i3SFE,4SFE..ST18#199008-199309

sub17700-74430

17705CAP SUB-ASSY, AIR CLEANER

main17705-74140i3SGE..ST182,183198909-199309

main17705-74160i3SFE..ST182,183198909-199008

main17705-74250i3SFE,4SFE..ST18#199008-199309

sub17705-74310

main17735-74060i4SFI..ST180,181198909-199008

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-16020i3SFE,4SFI..ST18#198909-199008

main17801-74020i3SGE..ST182,183198909-199309

17805DGROMMET(FOR INTAKE AIR CONNECTOR)

main90480-12014i4SFI..ST180,181198909-199008

17805ECOLLAR(FOR INTAKE AIR CONNECTOR)

main90387-06040i4SFI..ST180,181198909-199008

17849GASKET, INTAKE AIR CONNECTOR

main17849-74010i4SFI..ST180,181198909-199008

17861CONNECTOR, INTAKE AIR

main17861-74010i4SFI..ST180,181198909-199008

17871STAY, AIR CONNECTOR

main17871-74010i4SFI..ST180,181198909-199008

17881HOSE, AIR CLEANER, NO.1

main17881-74260i3SGE..ST182,183198909-199309

main17881-74270i4SFI..ST180,181198909-199008

main17881-74280i3SFE,4SFE..ST18#198909-199108

main17881-74420i3SFE,4SFE..ST18#199108-199309

17882HOSE, AIR CLEANER, NO.2

main17882-74170i3S#,4SF#..ST18#198909-199106

sub17882-74171

main17882-74171i3S#,4SFE..ST18#199106-199309

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10710i3SFE,4SF#..ST18#198909-199309

17887COVER, AIR CLEANER HOSE

main17887-74010i3S#,4SF#..ST18#198909-199309

17889BOX, AIR CLEANER HOSE, NO.2

main17889-74040i3S#,4SF#..ST18#198909-199309

17893RESONATOR, INTAKE AIR

main17893-74070i3SFE,4SF#..ST18#198909-199108

main17893-74080i4SFI..ST180,181198909-199008

main17893-74090i3SGE..ST182,183198909-199309

main17893-74130i3SFE,4SFE..ST18#198909-199309

main17893-74220i3SFE,4SFE..ST18#199108-199309

9011906123

main90119-06123

9011906525

main90119-06525

9017906007

main90179-06007

9017906129

main90179-06129

9017906156

main90179-06156

9021009014

main90210-09014

9033909003

main90339-09003

9046047001

main90460-47001

9046055006

main90460-55006

9046715012

main90467-15012

9212240610

main92122-40610

25 parts on this diagram · 3 diagrams in section
