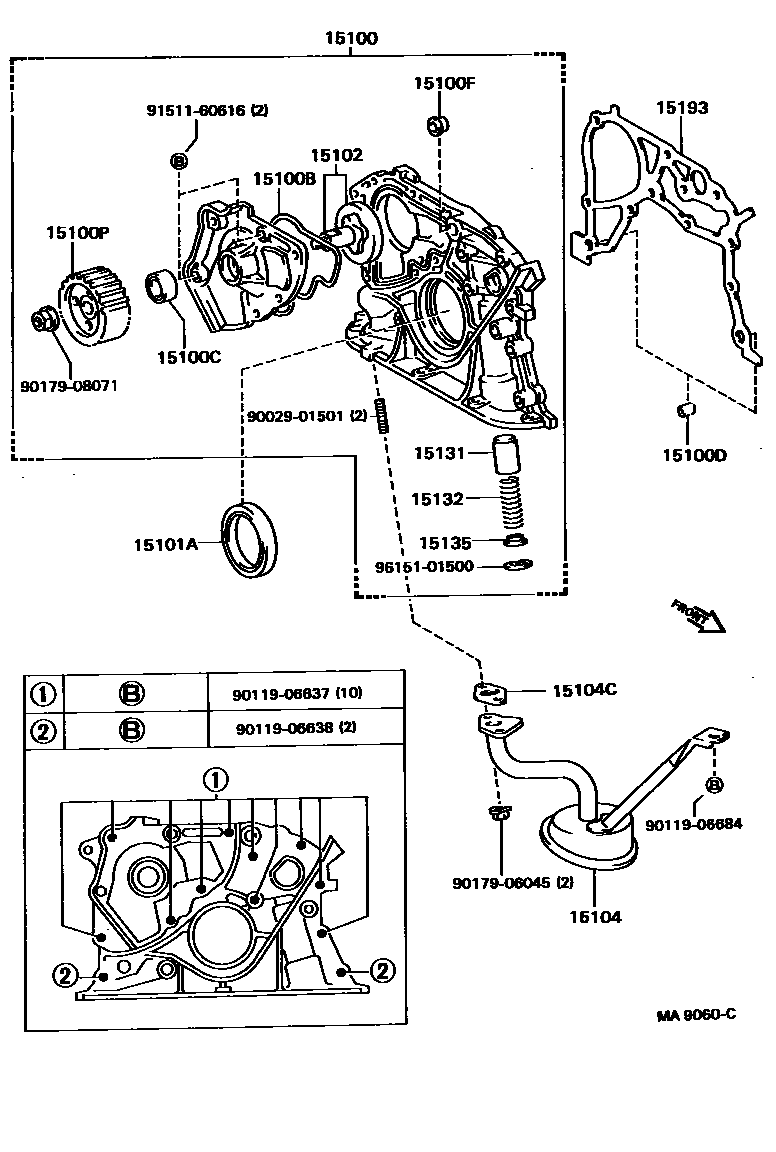

ENGINE OIL PUMP

0001 1 0002 1

15100PUMP ASSY, OIL

main15100-74010i3SFE,4SF#..ST18#198909-199309

main15100-88360i3SGE..ST182,183198909-199309

15100BRING, O(FOR OIL PUMP)

main15188-63010i3S#,4SF#..ST18#198909-199304

main15188-88382i3SFE,4SFE..ST18#199304-199306

15100CSEAL(FOR OIL PUMP)

main15165-70010i3S#,4SF#..ST18#198909-199304

main15165-74020i3SFE,4SFE..ST18#199304-199306

15100DPIN(FOR OIL PUMP SET)

main90253-09001×2i3S#,4SF#..ST18#198909-199309

15100FBUSH (FOR OIL PUMP)

main90029-38300i3S#,4SFI..ST18#198909-198911

main90029-38302i3SFE,4SF#..ST18#198911-199103

15100PPULLEY, OIL PUMP DRIVE SHAFT

main13524-74020i3SFE,4SF#..ST18#198909-199309

main13524-88360i3SGE..ST182,183198909-199309

15101ASEAL(FOR CRANKSHAFT)

main90311-42026i3S#,4SF#..ST18#198909-199309

15102ROTOR SET, OIL PUMP

main15102-63010i3S#,4SF#..ST18#198909-199309

15104STRAINER SUB-ASSY, OIL

main15104-88360i3SFE,4SFI..ST18#198909-198912

main15104-88380i3SGE..ST182,183198909-198912

15104CGASKET(FOR OIL STRAINER)

main15149-74020i3S#,4SF#..ST18#198909-199309

15131VALVE, OIL PUMP RELIEF

main15131-24010i3S#,4SF#..ST18#198909-199309

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i3S#,4SF#..ST18#198909-199309

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-15010i3S#,4SF#..ST18#198909-199309

15193GASKET, OIL PUMP

main15197-63021i3S#,4SF#..ST18#198909-199309

9002901501

main90029-01501

9011906637

main90119-06637

9011906638

main90119-06638

9011906684

main90119-06684

9017906045

main90179-06045

9017908071

main90179-08071

9151160616

main91511-60616

9615101500

main96151-01500

22 parts on this diagram · 2 diagrams in section
