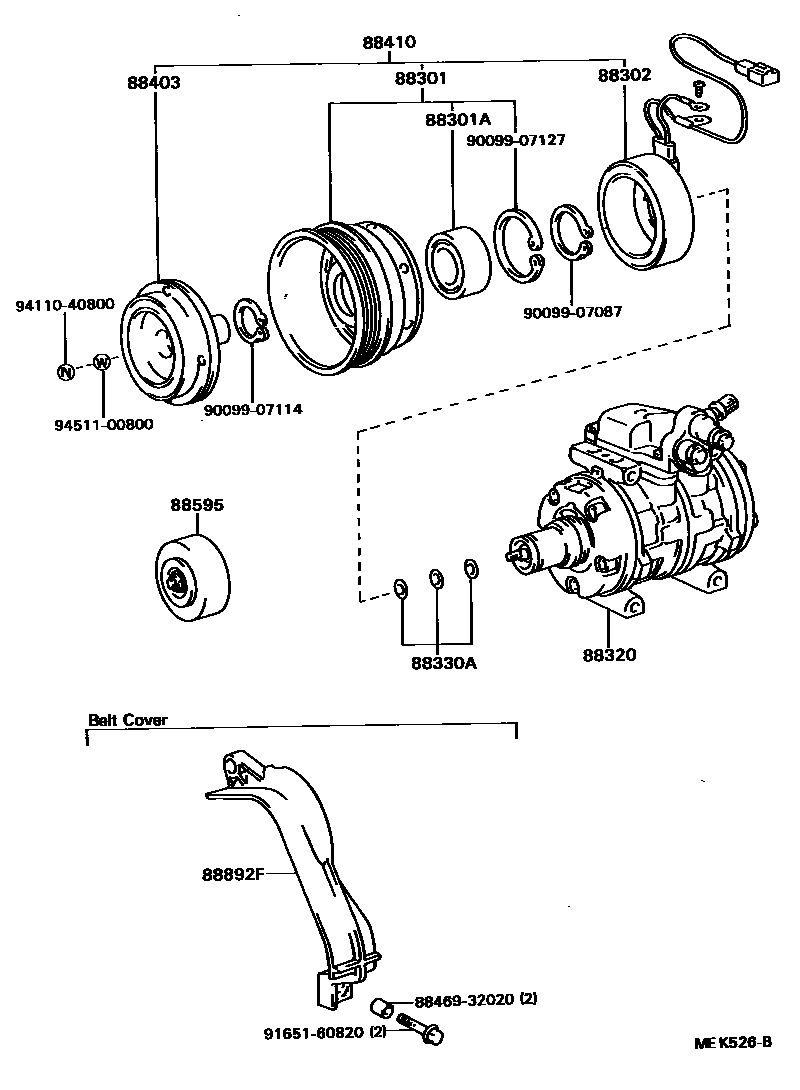

HEATING & AIR CONDITIONING - COMPRESSOR

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-32011iST16#198708-198908

88301ABEARING (FOR MAGNET CLUTCH)

main90099-10133iST16#198708-198908

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14090iST16#198708-198901

main88411-20170iST16#198901-198908

88320COMPRESSOR ASSY, COOLER

main88320-20500iST16#198708-198908

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iST16#198708-198908

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iST16#198708-198908

88410CLUTCH ASSY, MAGNET

main88410-14170iST16#198708-198901

main88410-20360iST16#198901-198908

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-20110iST162..G198708-198908

88892FCOVER, COOLER COMPRESSOR

main88892-32051iST162..5F..G198708-198908

8846932020SWITCH, PRESSURE CONTROL

main88469-32020

9009907087

main90099-07087

9009907114

main90099-07114

9009907127

main90099-07127

9165160820

main91651-60820

9411040800

main94110-40800

9451100800

main94511-00800

16 parts on this diagram · 1 diagram in section
