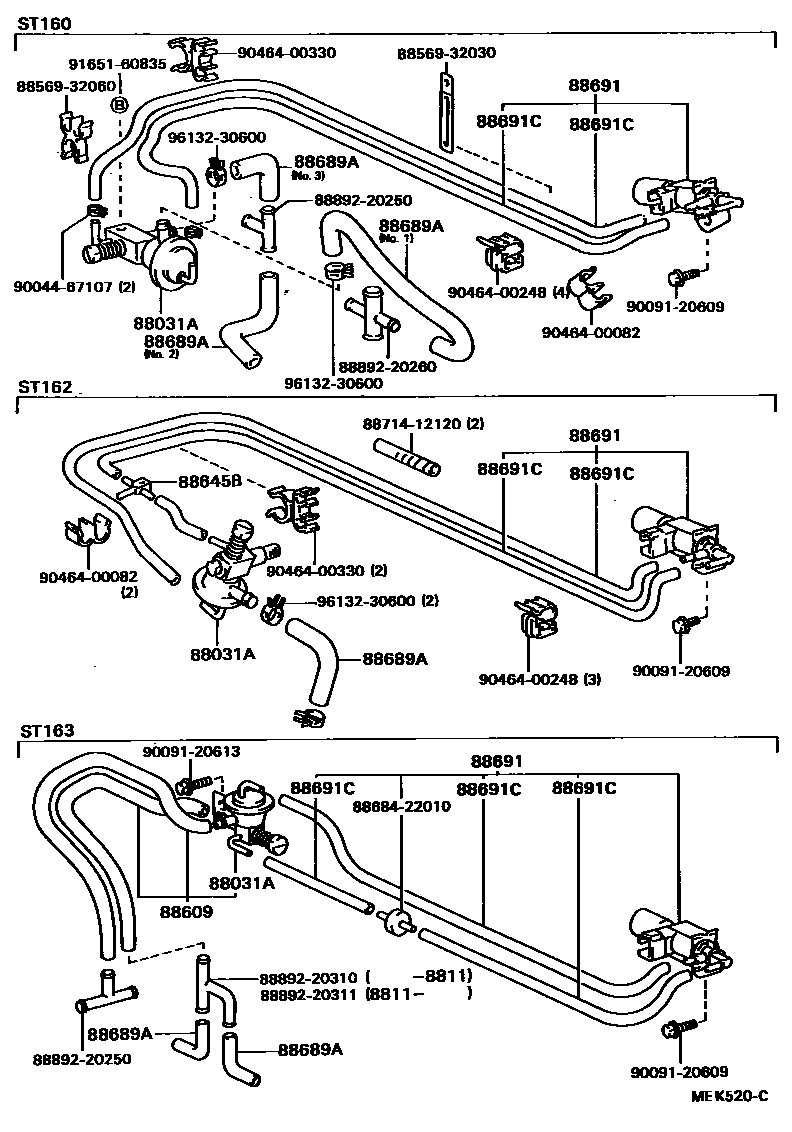

HEATING & AIR CONDITIONING - VACUUM PIPING

88031ADIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR

main88606-20050iST160198708-198805

main88606-20151iST163198805-198903

main88606-24020iST162..G198708-198908

main88606-32010iST162..S,X198708-198908

88609DEVICE SUB-ASSY, IDLE UP

main88609-20350iST163198805-198811

main88609-20351iST163..F,X; ST163..L198903-198908

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main90413-04005iST162198708-198805

88689AHOSE, COOLER VACUUM NO.1

main88689-20160iST160198708-198805

NO.1

main88689-20170iST160198708-198805

NO.2

main88689-20180iST160198708-198805

NO.3

main88689-20640×2iST163..F,X; ST163..L198903-198908

main88689-32050iST162..S,X198708-198908

main88689-40030iST162..G198708-198908

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-20700iST160; ST162..G; ST162..S,X198708-198908

main88690-2B120iST162..S,X198708-198805

main88690-2B250iST163198805-198811

main88690-2B251iST163..F,X; ST163..L198903-198908

main88690-2B260iST162..S,X198805-198908

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main90999-92002iST163..F,X; ST163..L198903-198908

main90999-92003iST163..F,X; ST163..L198903-198908

main90999-92004iST162..S,X198708-198805

8856932030CLAMP (FOR COOLER RELAY)

main88569-32030

8856932060CLAMP (FOR COOLER RELAY)

main88569-32060

8868422010VALVE, VACUUM

main88684-22010

8871412120HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-12120

8889220250BRACKET, COOLER EVAPORATOR MOUNTING

main88892-20250

8889220260BRACKET, COOLER EVAPORATOR MOUNTING

main88892-20260

8889220310BRACKET, COOLER EVAPORATOR MOUNTING

main88892-20310

8889220311BRACKET, COOLER EVAPORATOR MOUNTING

main88892-20311

9004467107

main90044-67107

9009120609

main90091-20609

9009120613

main90091-20613

9046400082

main90464-00082

9046400248

main90464-00248

9046400330

main90464-00330

9165160835

main91651-60835

9613230600

main96132-30600

22 parts on this diagram · 1 diagram in section
