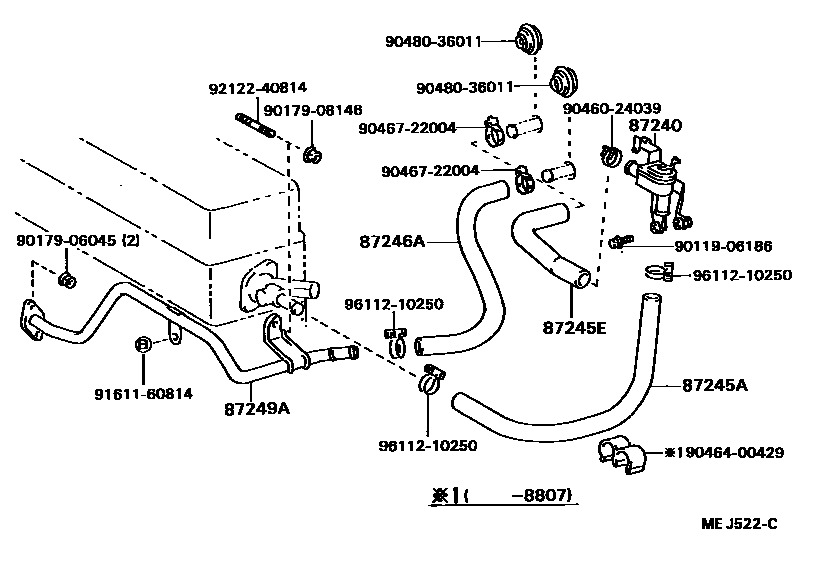

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87240VALVE ASSY, HEATER WATER

main87240-20290iST16#198708-198908

87245AHOSE, HEATER WATER, INLET A

main87245-20830iST160198708-198805

main87245-2B080iST162198708-198908

main87245-2B460iST163198805-198908

87245EHOSE, HEATER WATER, INLET E

main87245-20810iST16#198708-198908

87246AHOSE, HEATER WATER, OUTLET A

main87245-2B090iST162198708-198908

main99556-30500iST160198708-198805

87249APIPE, HEATER WATER OUTLET, A

main87208-20180iST160198708-198805

9011906186

main90119-06186

9017906045

main90179-06045

9017908146

main90179-08146

9046024039

main90460-24039

9046400429

main90464-00429

9046722004

main90467-22004

9048036011

main90480-36011

9161160814

main91611-60814

9212240814

main92122-40814

9611210250

main96112-10250

15 parts on this diagram · 2 diagrams in section
