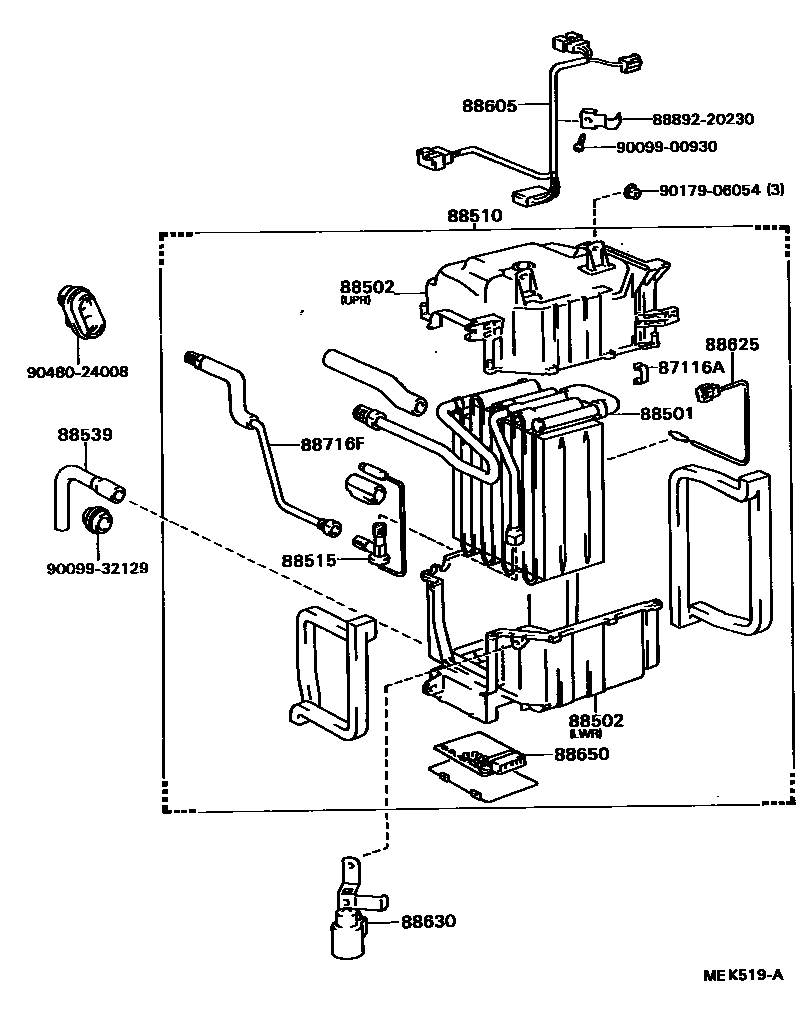

HEATING & AIR CONDITIONING - COOLER UNIT

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010×3iST162..4FC..G198708-198908

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-20201iST16#..F,G,S,X; ST163..L198903-198908

88502CASE SUB-ASSY, COOLING UNIT

main88502-20090iST16#..F,G,S,X; ST163..L198903-198908

main88502-20100iST16#..F,G,S,X; ST163..L198903-198908

88510UNIT ASSY, COOLER

main88510-20550iST16#..F,S,X; ST163..L198903-198908

main88510-20560iST160;ST162..G198708-198908

88515VALVE, COOLER EXPANSION

main88515-16040iST16#..F,G,S,X; ST163..L198903-198908

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-22110iST16#198708-198903

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-20601iST162198708-198805

main88605-20670iST160..F,L198708-198805

main88605-20790iST160..X198708-198805

main88605-20840iST160..F,L198708-198805

main88605-2B280iST163..4FC..(F,L)198805-198904

main88605-2B281iST163..4FC..(F,L)198904-198908

main88605-2B290iST163..4FC..(F,L)198805-198904

main88605-2B291iST163..4FC..(F,L)198904-198908

main88605-2B300iST163..4FC..X198805-198904

main88605-2B301iST163..4FC..L; ST163..4FC..X198904-198908

V

main88605-2B310iST163..5F..(F,L)198805-198908

main88605-2B320iST163..5F..(F,L)198805-198908

main88605-2B330iST163..5F..X198805-198908

main88605-2B500iST162..S,X198805-198908

88625THERMISTOR, COOLER, NO.1

main88625-12070iST16#198708-198903

88630RELAY ASSY, COOLER

main88630-20140iST163..4FC..(F,L)198805-198908

main88630-20150iST163..4FC..(F,L)198805-198903

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-20350iST162,163..F,L,S,X198708-198903

main88650-20370iST160;ST162..G198708-198908

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-2B040iST16#..F,G,S,X; ST163..L198903-198908

8889220230BRACKET, COOLER EVAPORATOR MOUNTING

main88892-20230

9009900930

main90099-00930

9009932129

main90099-32129

9017906054

main90179-06054

9048024008

main90480-24008

16 parts on this diagram · 1 diagram in section
