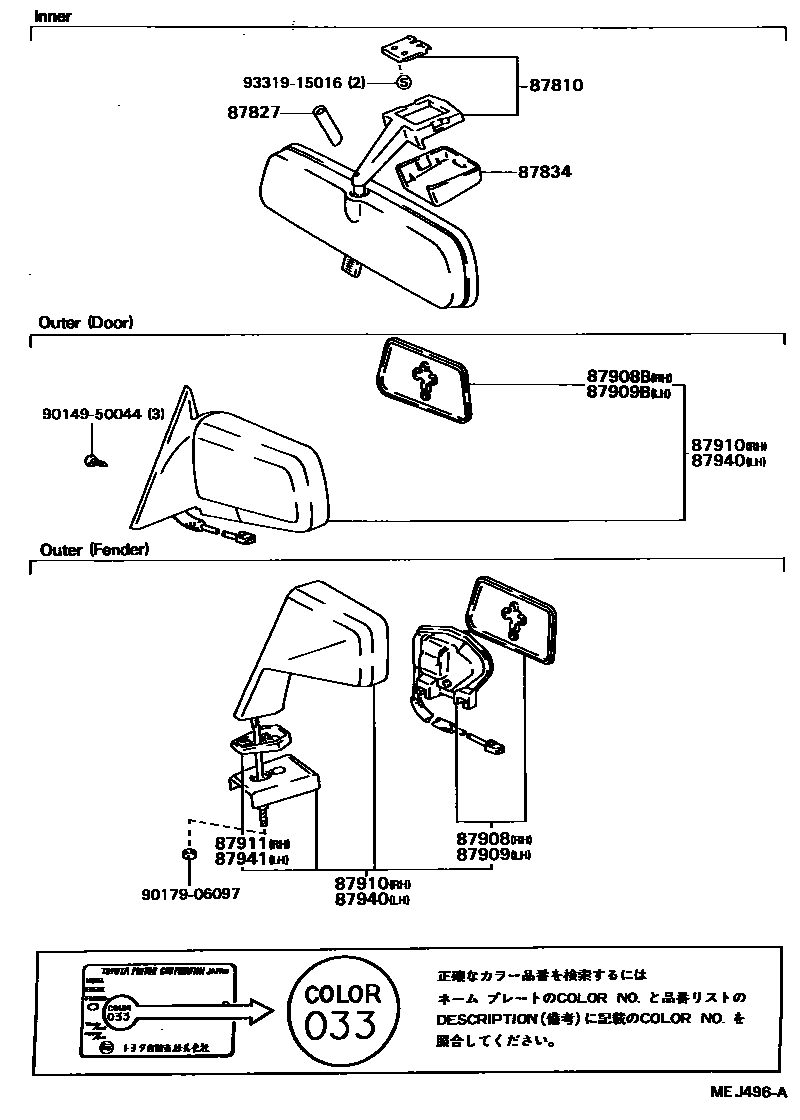

MIRROR
87810MIRROR ASSY, INNER REAR VIEW
BLUE,TRIM8#
BLACK,TRIM2#
SABLE,TRIM4#
87827ABSORBER, INNER REAR VIEW MIRROR
L=32
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
BROWN,TRIM4#
DEEP BLUE,TRIM8#
SHADOW GRAY,TRIM2#
87908ACTUATOR ASSY, OUTER MIRROR, RH
87908BMIRROR SUB-ASSY, RH
87909ACTUATOR ASSY, OUTER MIRROR, LH
87909BMIRROR SUB-ASSY, LH
87088805ST160,162,163
87910MIRROR ASSY, OUTER REAR VIEW, RH
LIGHT GREEN M,6J9,COLORED
SUPER WHITE,040,COLORED
RED MAICA,3H4,COLORED
GRAY M,168 ,23E,COLORED
GRAY METALLIC,168 ,23E,COLORED
LIGHT GREEN METALLIC,6J9,COLORED
SUPER WHITE,040,COLORED
RED MICA,3H4,COLORED
87911GASKET, OUTER REAR VIEW MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
LIGHT GREEN M,6J9,COLORED
SUPER WHITE,040,COLORED
RED MAICA,3H4,COLORED
GRAY M,168 ,23E,COLORED
GRAY,METALLIC,168 ,23E,COLORED
LIGHT GREEN METALLIC,6J9,COLORED
SUPER WHITE,040,COLORED
RED MICA,3H4,COLORED
GRAY MICA METALLIC,170,COLORED
87941GASKET, OUTER REAR VIEW MIRROR, LH
9014950044
main90149-50044
9017906097
main90179-06097
9331915016
main93319-15016
14 parts on this diagram · 1 diagram in section
