HORN

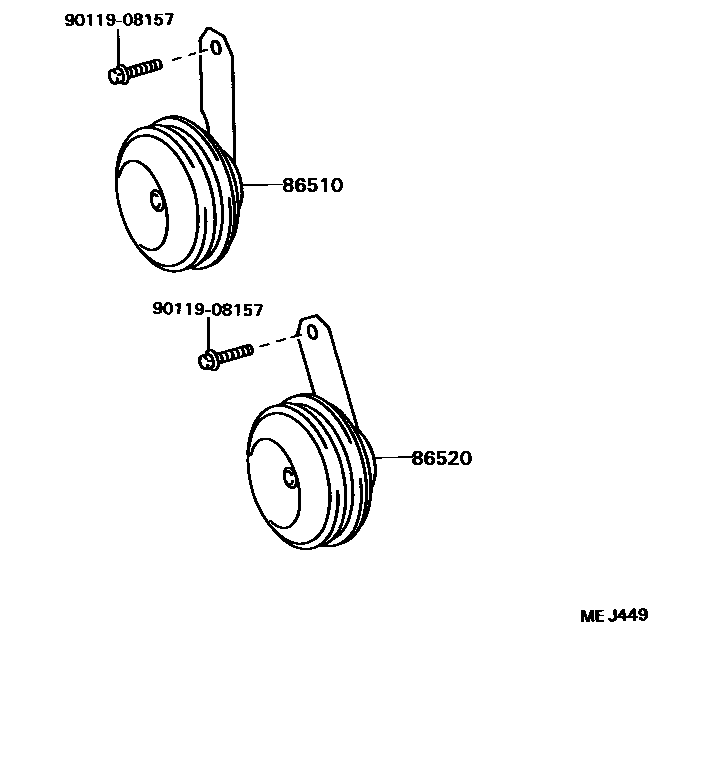

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-20151i198708-198908

main86510-20160i198708-198908

86520HORN ASSY, LOW PITCHED

main86520-20161i198708-198908

main86520-20170i198708-198908

9011908157

main90119-08157

3 parts on this diagram · 1 diagram in section
