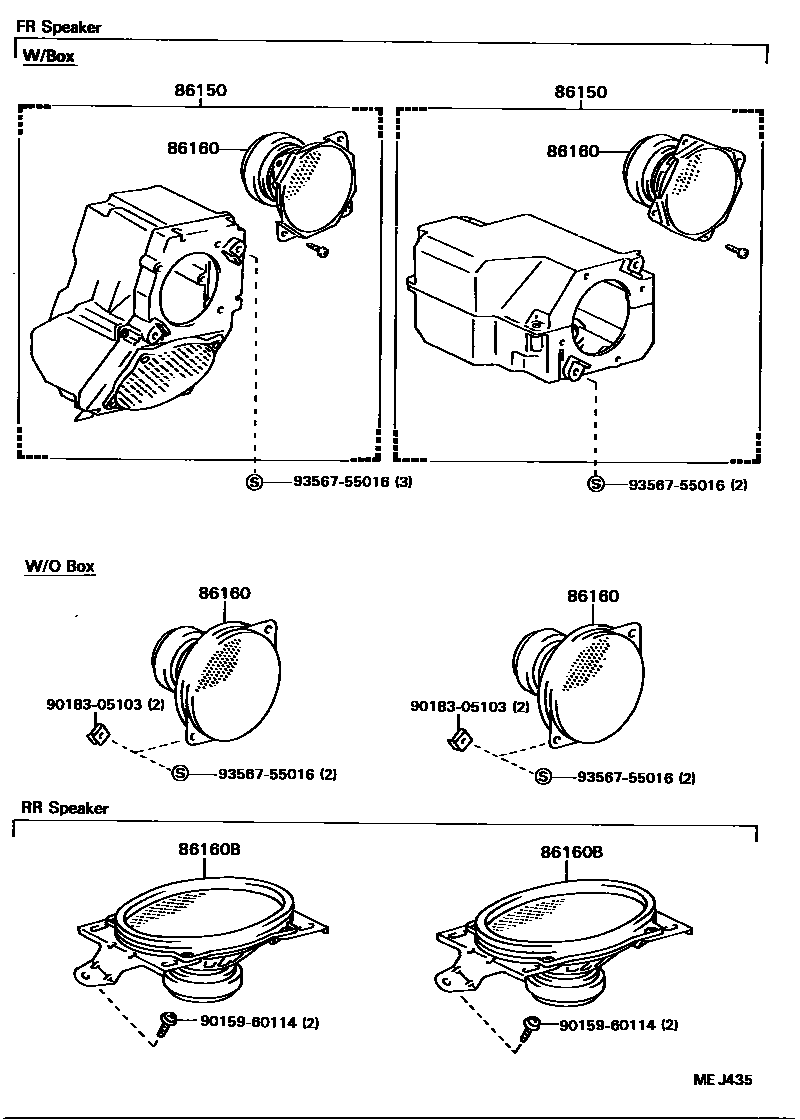

SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-20050iST16#..F,X; ST162..G; ST162..S198708-198908

RH

main86150-20060iST163..L198903-198908

LH

86160SPEAKER ASSY, FRONT NO.1

main86160-20240×2iST16#..G,L,S198708-198908

W/O BOX TYPE

main86160-20280×2iST16#..F,X; ST162..G; ST162..S198708-198908

BOX TYPE

86160BSPEAKER ASSY, REAR

main86160-20250×2iST16#..F,X; ST162..G; ST162..S198708-198908

9015960114

main90159-60114

9018305103

main90183-05103

9356755016

main93567-55016

6 parts on this diagram · 1 diagram in section
