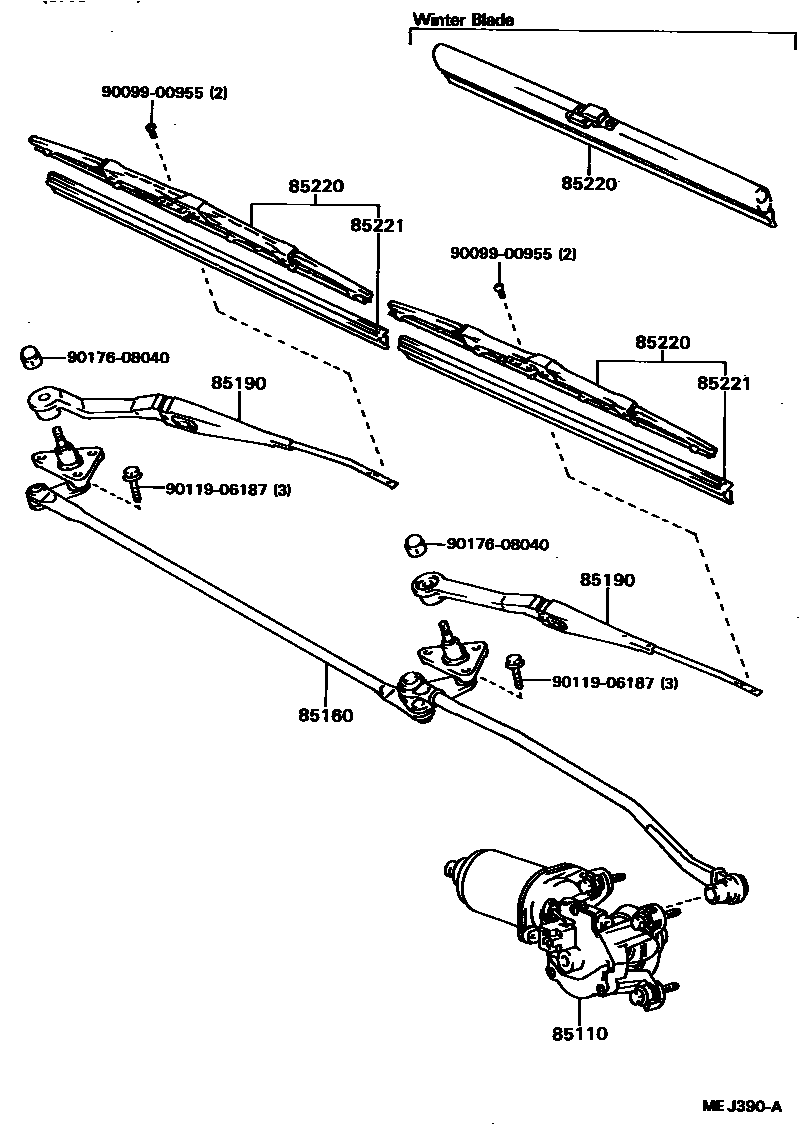

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-20420iST16#198708-198801

main85110-20421iST16#198801-198903

main85110-20422iST16#198903-198908

main85110-20430iST16#198708-198801

main85110-20431iST16#198801-198805

main85110-20432iST162; ST163198805-198908

85160LINK ASSY, WINDSHIELD WIPER

main85160-20300iST16#198708-198908

85190ARM ASSY, WINDSHIELD WIPER

main85190-20460iST16#198708-198908

main85210-20131iST16#198708-198908

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16320iST16#198708-198908

main85220-16580iST16#198708-198908

main85220-32540iST16#198708-198908

main85220-32550iST16#198708-198908

85221BLADE, WINDSHIELD WIPER

main85221-24040iST16#198708-198908

main85221-30120iST16#198708-198908

9009900955

main90099-00955

9011906187

main90119-06187

9017608040

main90176-08040

8 parts on this diagram · 1 diagram in section
