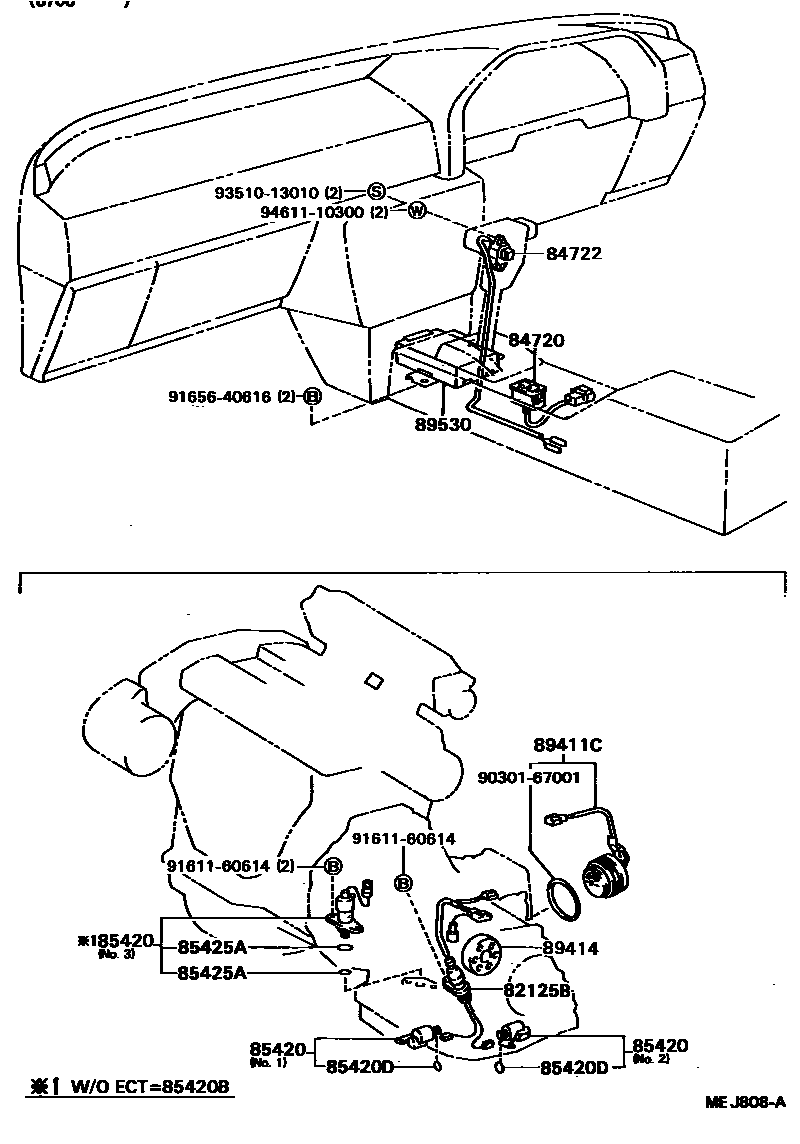

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125BWIRE, TRANSMISSION

main82125-20090iST162..4FC..G198708-198805

84720SWITCH ASSY, PATTERN SELECT

main84720-14030iST162..4FC..G198708-198805

84722SWITCH, TRANSMISSION CONTROL

main84722-20040-11iST16#..4FC198708-198908

BLACK,TRIM2#

main84722-20040-16iST16#..4FC198708-198908

SABLE,TRIM4#

main84722-20040-24iST16#..4FC198708-198908

BLUE,TRIM8#

85420SOLENOID ASSY, TRANSMISSION

main85420-32020iST162..4FC..G198708-198805

NO.1

main85420-32021iST162..4FC198809-198908

NO.1

main85420-32040iST162..4FC198805-198809

NO.2

main85420-32041iST162..4FC198809-198908

NO.2

main85420-32071iST162..4FC..G198708-198805

NO.3

85420BSOLENOID ASSY, TRANSMISSION

main85420-32081iST16#..4FC..(F,L,S,X)198708-198805

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×2iST162..4FC198805-198908

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-06005iST16#..4FC..(F,L,S,X)198708-198805

ID=6.6

main96721-19017iST16#..4FC..(F,L,S,X)198708-198805

ID=17

89411CSENSOR, SPEED

main89411-20020iST162..4FC198805-198904

main89411-32040iST162..4FC198904-198908

89414ROTOR, SENSOR

main89414-32010iST162..4FC..G198708-198805

89530COMPUTER ASSY, TRANSMISSION CONTROL

main89530-20130iST162..4FC..(S,X)198805-198908

main89530-20200iST162..4FC..G198708-198805

main89530-20330iST162..4FC..G198805-198908

9030167001

main90301-67001

9161160614

main91611-60614

9165640616

main91656-40616

9351013010

main93510-13010

9461110300

main94611-10300

15 parts on this diagram · 1 diagram in section
